74366 (Z 4235) - Toro 42" TimeCutter Zero-Turn Mower (SN: 310000001 - 310999999) (2010) 42 INCH DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

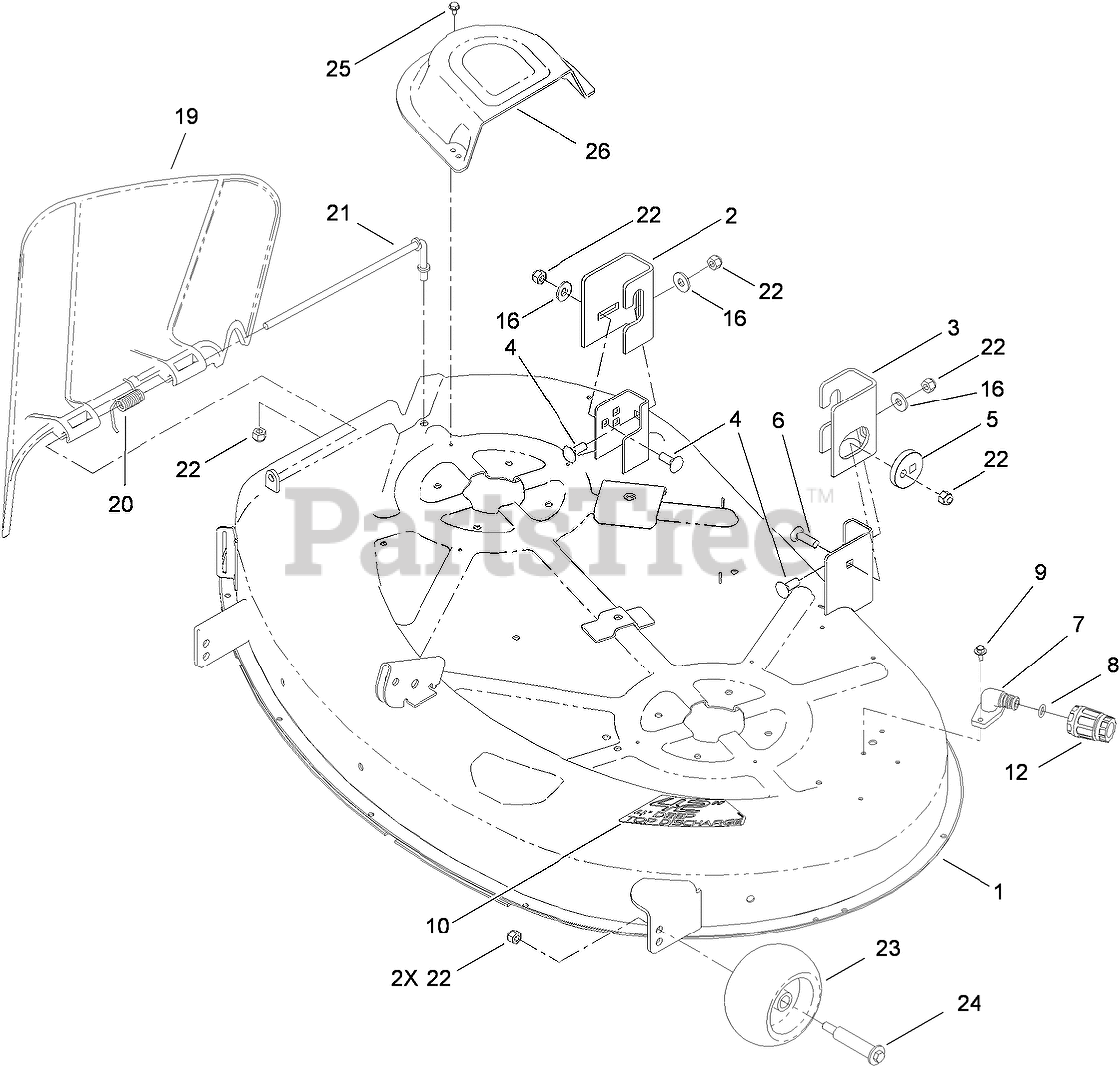

42 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 117-1290

42 INCH DECK AND DECAL ASM
(Superseded to 132-6931)

$1278.99

$

Usually ships in 3-6 days

0

2

Toro 108-7836

BRACKET-HANGER, RIGHT REAR

$24.99

$

Usually ships in 3-6 days

0

3

Toro 108-7838

BRACKET-HANGER, LEFT REAR

$24.99

$

In Stock, only 1 left!

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

5

Toro 112-3980

ECCENTRIC

$7.99

$

In Stock, Qty 6

0

6

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

10

Toro 117-1222

DECAL

$9.99

$

In Stock, only 4 left!

0

12

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

16

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

19

Toro 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

20

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

21

Toro 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 5

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

24

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0
