74363 (Z 4220) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000505 - 290999999) (2009) FUEL SYSTEM ASSEMBLY KOHLER SV610-0211 Parts Diagram

42" TimeCutter Zero-Turn Mower

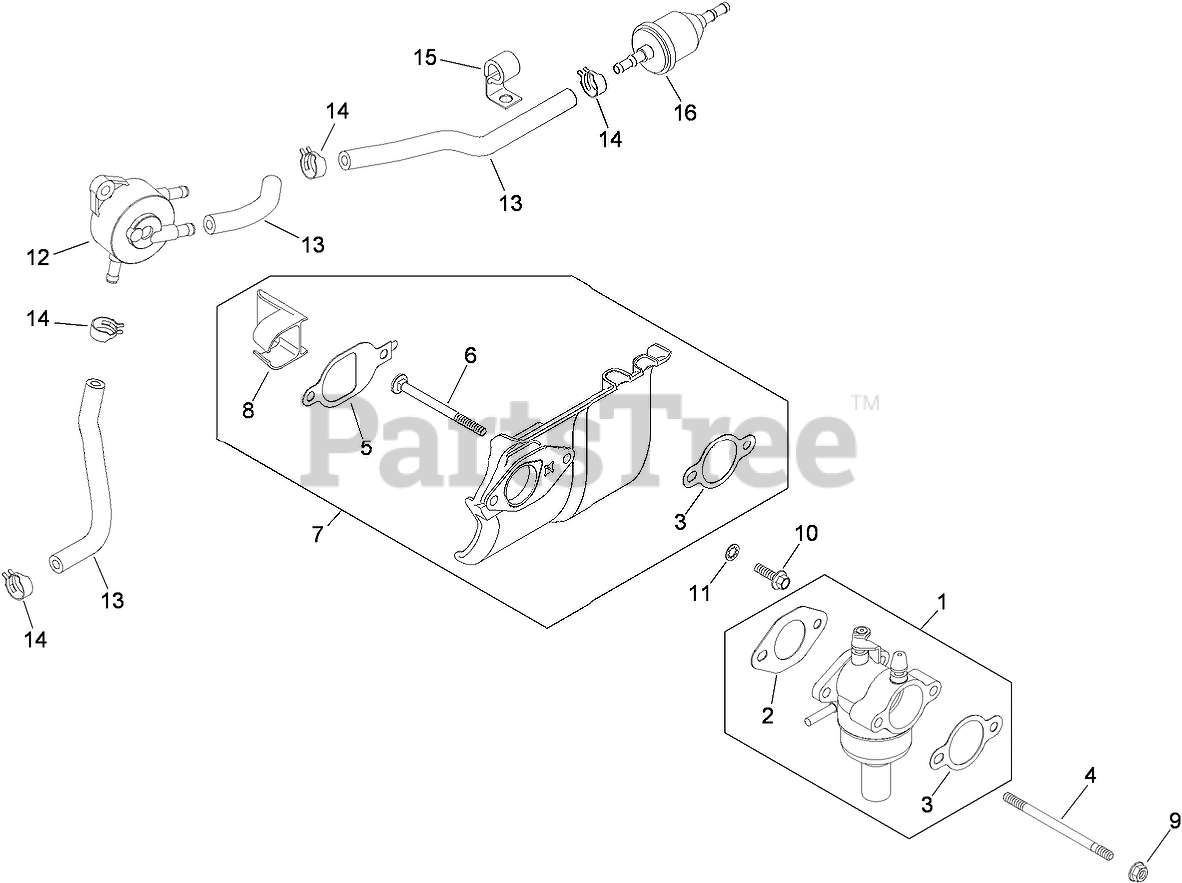

FUEL SYSTEM ASSEMBLY KOHLER SV610-0211 Parts Diagram

  • Title
1

Kohler 20 853 33-S

CARBURETOR KIT (INCLUDES REF 2, 3)

Note: Obtain parts from www.kohlerplus.com

$176.99

$

In Stock, only 1 left!

0

2

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 14

0

3

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

4

Kohler 20 072 05-S

Stud-Mounting, Carburetor (M6X1.0X100)
(Superseded to 20 072 10-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

5

Kohler 20 041 18-S

GASKET-DEFLECTOR, HEAT

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 13

0

6

Kohler 20 072 07-S

STUD-CARBURETOR
(Superseded to 20 072 09-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

7

Kohler 20 265 09-S

HEAT DEFLECTOR KIT (INCLUDES REF 3, 5, 6, 8)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

Usually ships in 2-5 days

0

8

Kohler 20 332 01-S

INSERT-PORT, INTAKE

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 10

0

9

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

10

Kohler M-651020-S

Screw-Flange, Hex (M6x1.0x20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

11

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 18

0

13

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, only 4 left!

0

14

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

15

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

16

Kohler 25 050 22-S

FILTER-FUEL

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0
