74363 (Z 4220) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

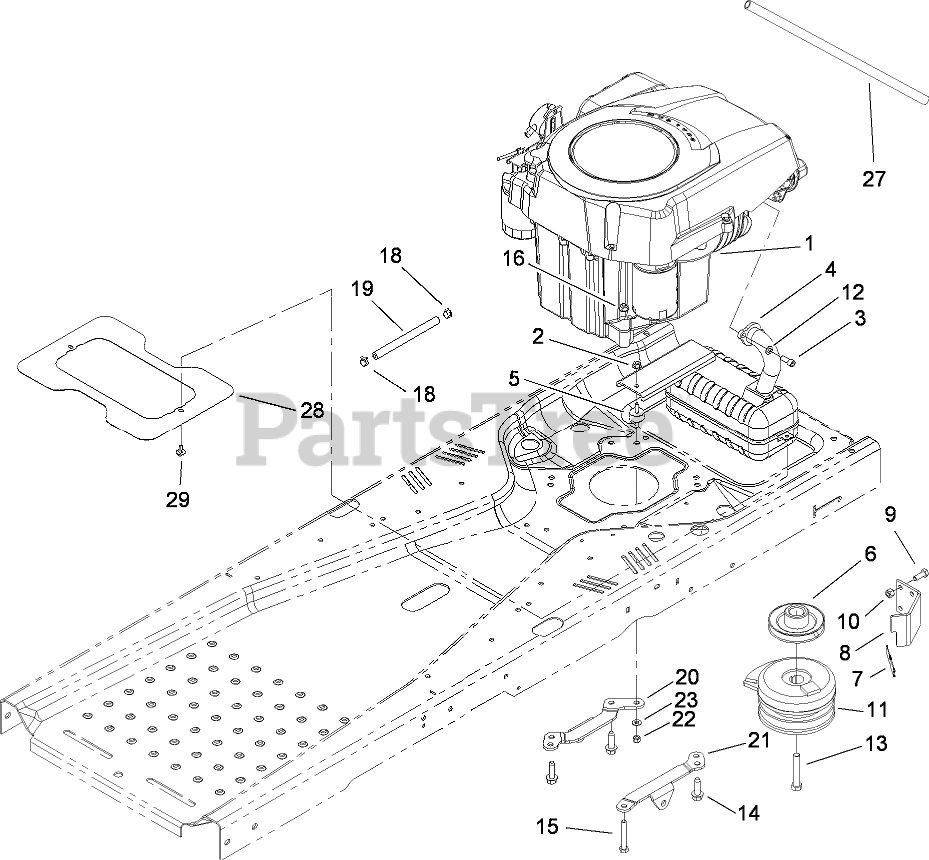

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, SV610-0020

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, SV610-0020

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

3

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

4

Toro 112-4024

MUFFLER-KOHLER
(Superseded to 117-7461)

$221.99

$

In Stock, only 1 left!

0

5

Toro 112-3976

ISOLATOR

$15.99

$

In Stock, only 1 left!

0

6

Toro 114-1622

PULLEY-ENGINE

$135.99

$

Usually ships in 3-6 days

0

7

Toro 112-4033

BUMPER-PAD

$7.99

$

In Stock, only 3 left!

0

8

Toro 110-6896

STOP-CLUTCH

$12.99

$

Usually ships in 3-6 days

0

9

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 104-3334

CLUTCH-ELECTRIC

$474.99

$

In Stock, only 2 left!

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

14

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

15

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

19

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

20

Toro 110-6798

SUPPORT-HYDRO, RH

$29.99

$

In Stock, only 3 left!

0

21

Toro 110-6799

SUPPORT-HYDRO, LH

$29.99

$

In Stock, Qty 11

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

28

Toro 114-8544

SHIELD-HEAT
(Superseded to 114-8544-03)

$19.99

$

In Stock, only 4 left!

0

29

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0
