74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290001199 - 290999999) (2009) FUEL SYSTEM ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

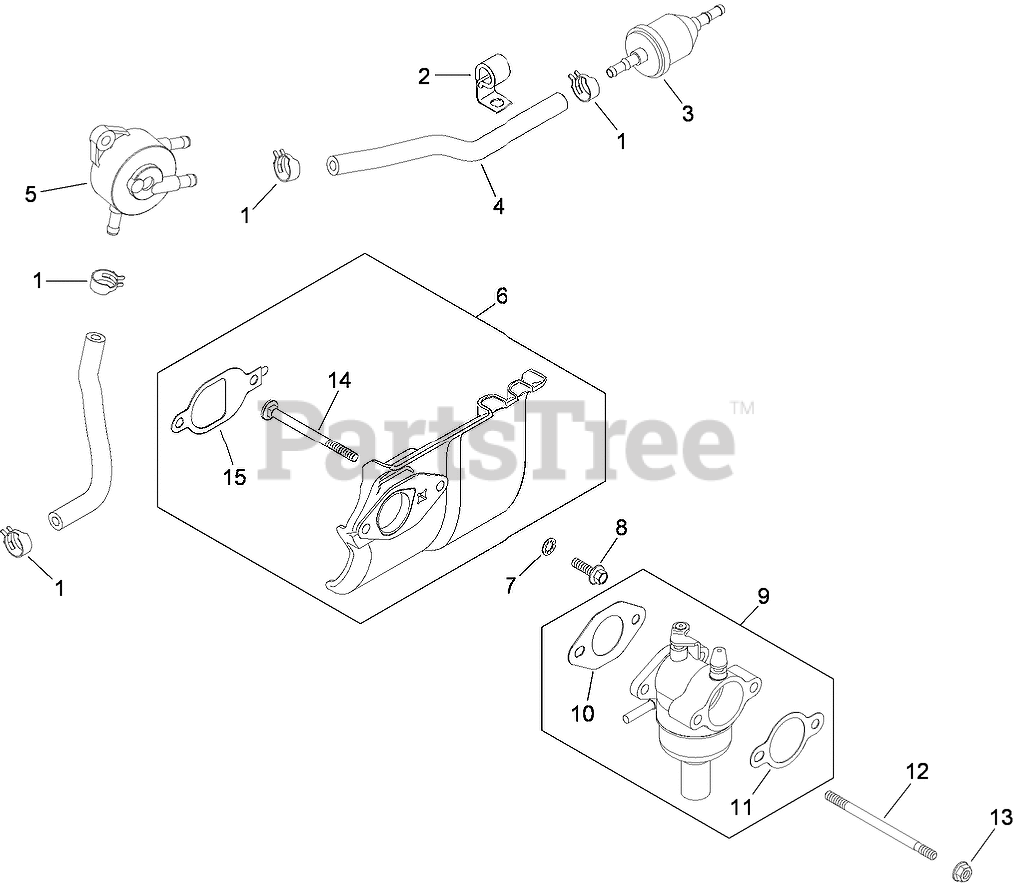

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 3 left!

0

2

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 5

0

3

Kohler 25 050 22-S

FILTER-FUEL

Note: Obtain parts from www.kohlerplus.com

$8.99

$

In Stock, Qty 20+

0

4

Kohler 25 111 34-S

LINE-FUEL (24.0 CUT TO LENGTH)
(Superseded to 25 111 81-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

In Stock, Qty 6

0

5

Kohler 24 393 16-S

PUMP-FUEL

Note: Obtain parts from www.kohlerplus.com

$32.99

$

In Stock, Qty 15

0

6

Kohler 20 265 09-S

HEAT DEFLECTOR KIT (INCLUDES REF 11, 14, 15, 20 332 01-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

7

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

8

Kohler M-651020-S

Screw-Flange, Hex (M6x1.0x20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

9

Kohler 20 853 33-S

CARBURETOR KIT (INCLUDES REF 10, 11) (S/W 12 755 109-S, 12 755 110-S, 12 757 02-S, 12 757 03-S, 12 757 33-S, 12 757 37-S, 20 755 07-S)

Note: Obtain parts from www.kohlerplus.com

$176.99

$

In Stock, only 3 left!

0

10

Kohler 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

11

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 7

0

12

Kohler 20 072 05-S

Stud-Mounting, Carburetor (M6X1.0X100)
(Superseded to 20 072 10-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

13

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 9

0

14

Kohler 20 072 07-S

STUD-CARBURETOR
(Superseded to 20 072 09-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 9

0

15

Kohler 20 041 18-S

GASKET-DEFLECTOR, HEAT

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, Qty 13

0

Kohler 25 454 05-S

TIE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

Kohler 25 454 05-S

TIE

Note: Not illustrated

$2.49

$

In Stock, only 2 left!

0

Kohler 12 755 109-S

High Altitude Kit (5000 OR 10000 FT)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 755 109-S

High Altitude Kit (5000 OR 10000 FT)

Note: Not illustrated

$

$

Not available

Kohler 12 755 110-S

Choke Shaft Kit

Note: Not illustrated

$14.99

$

Usually ships in 2-5 days

0

Kohler 12 755 110-S

Choke Shaft Kit

Note: Obtain parts from www.kohlerplus.com

$14.99

$

Usually ships in 2-5 days

0

Kohler 12 757 02-S

Float Repair Kit

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 02-S

Float Repair Kit

Note: Not illustrated

$13.99

$

In Stock, only 3 left!

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Not illustrated

$35.99

$

In Stock, Qty 8

0

Kohler 12 757 03-S

Carburetor Repair Kit

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, Qty 8

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Obtain parts from www.kohlerplus.com

$135.99

$

In Stock, only 1 left!

0

Kohler 12 757 33-S

Solenoid Repair Kit

Note: Not illustrated

$135.99

$

In Stock, only 1 left!

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Not illustrated

$16.99

$

In Stock, Qty 6

0

Kohler 12 757 37-S

Bowl Replacement Repair Kit

Note: Obtain parts from www.kohlerplus.com

$16.99

$

In Stock, Qty 6

0

Kohler 20 755 07-S

High Altitude Kit (10, 000 ft)

Note: Not illustrated

$19.99

$

Usually ships in 2-5 days

0

Kohler 20 755 07-S

High Altitude Kit (10, 000 ft)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0
