74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290001199 - 290999999) (2009) ENGINE CONTROL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

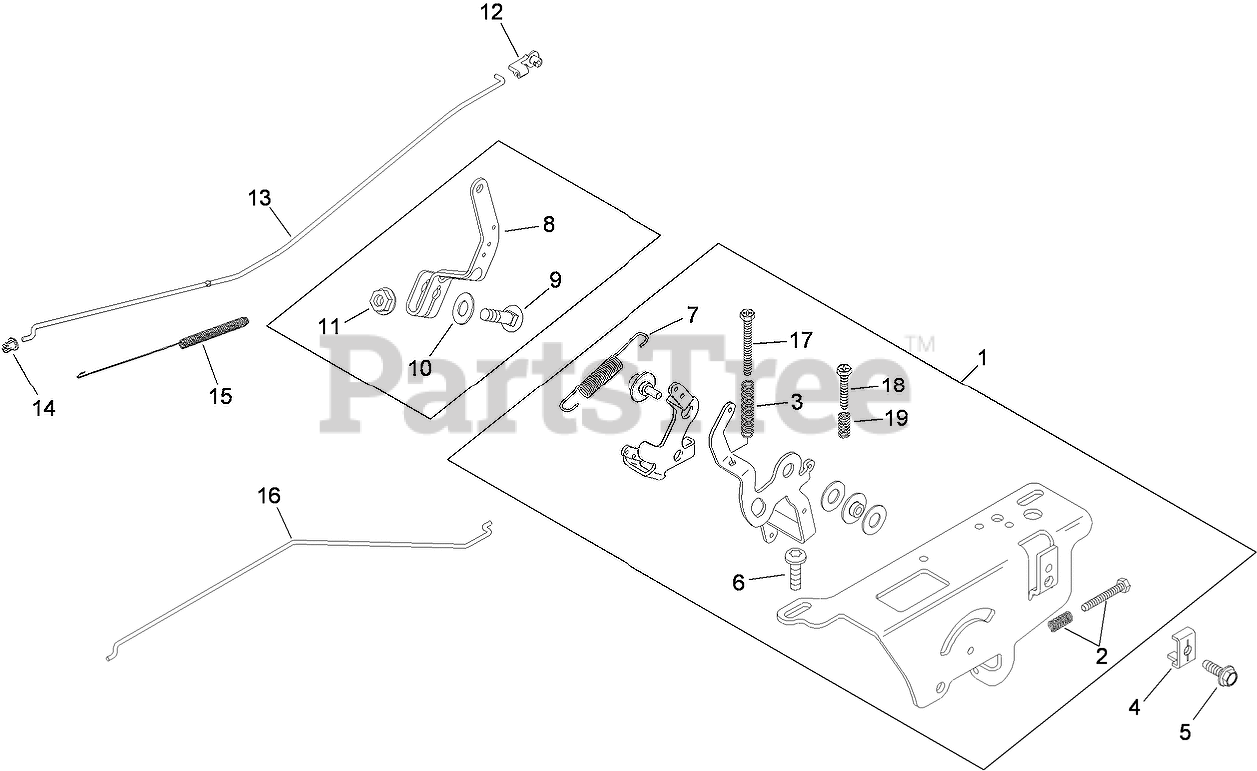

ENGINE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 536 06-S

SPEED CONTROL ASM (INCLUDES REF 2, 3, 6 QTY 1], 7, 17, 18, 19)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 297-S

IDLE ADJUSTING SCREW AND SPRING KIT

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

3

Kohler 20 089 12-S

SPRING-CONTROL, SPEED (LONG)

Note: Obtain parts from www.kohlerplus.com

$27.99

$

In Stock, only 1 left!

0

4

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 5

0

5

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

6

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

7

Kohler 20 089 11-S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

8

Kohler 20 090 11-S

GOVERNOR LEVER ASM (INCLUDES REF 9-11)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

Usually ships in 2-5 days

0

9

Kohler 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

10

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

11

Kohler 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

12

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

13

Kohler 20 079 07-S

LINKAGE-THROTTLE

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 3 left!

0

14

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 18

0

15

Kohler 20 089 10-S

Spring-Linkage

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

16

Kohler 20 079 05-S

Linkage-Choke (Single Wire)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 5

0

17

Kohler 20 086 18-S

SCREW-PHL THD FRM (M4X0.7X38)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 6

0

18

Kohler 20 086 10-S

Screw-Thread Forming (M4x0.7x25)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

19

Kohler 12 089 11-S

Spring-Control, Speed

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0
