74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 290000001 - 290001198) (2009) STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

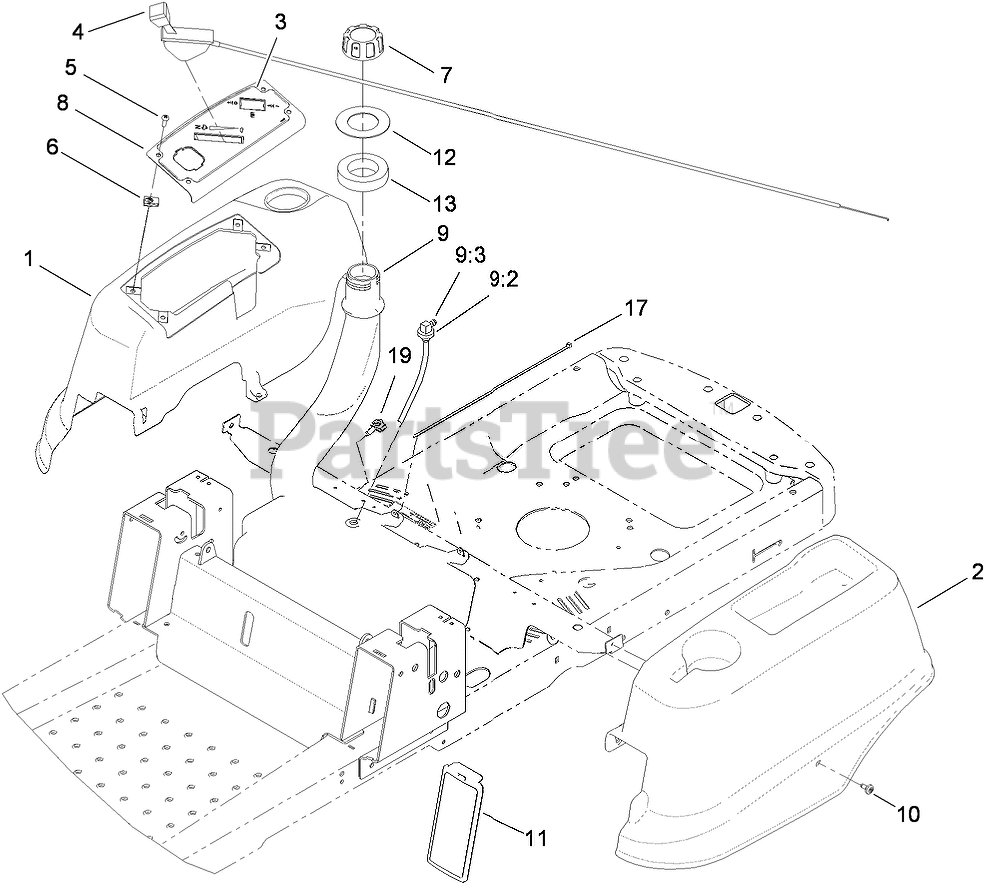

STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 117-1219

POD-RH

$155.99

$

Usually ships in 3-6 days

0

2

Toro 117-1220

POD-LH

$155.99

$

In Stock, only 1 left!

0

3

Toro 115-2500

DECAL-PANEL, CONTROL

$29.99

$

In Stock, only 1 left!

0

4

Toro 104-3626

CABLE-THROTTLE

$68.99

$

In Stock, only 2 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

$2.99

$

In Stock, Qty 20+

0

7

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

8

Toro 110-1927-03

PANEL-CONTROL

$16.99

$

Usually ships in 3-6 days

0

9

Toro 110-6890

FUEL TANK ASM

$210.99

$

In Stock, only 1 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

9:3

Toro 95-3970

FITTING-90 DEGREE

$68.99

$

In Stock, only 1 left!

0

10

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 7

0

11

Toro 110-6786

COVER-CONTROL

$14.99

$

In Stock, only 1 left!

0

12

Toro 112-9760

WASHER-RUBBER

$5.49

$

In Stock, Qty 17

0

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

17

Toro 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0

19

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0
