74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 280000001 - 280999999) (2008) CRANKCASE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

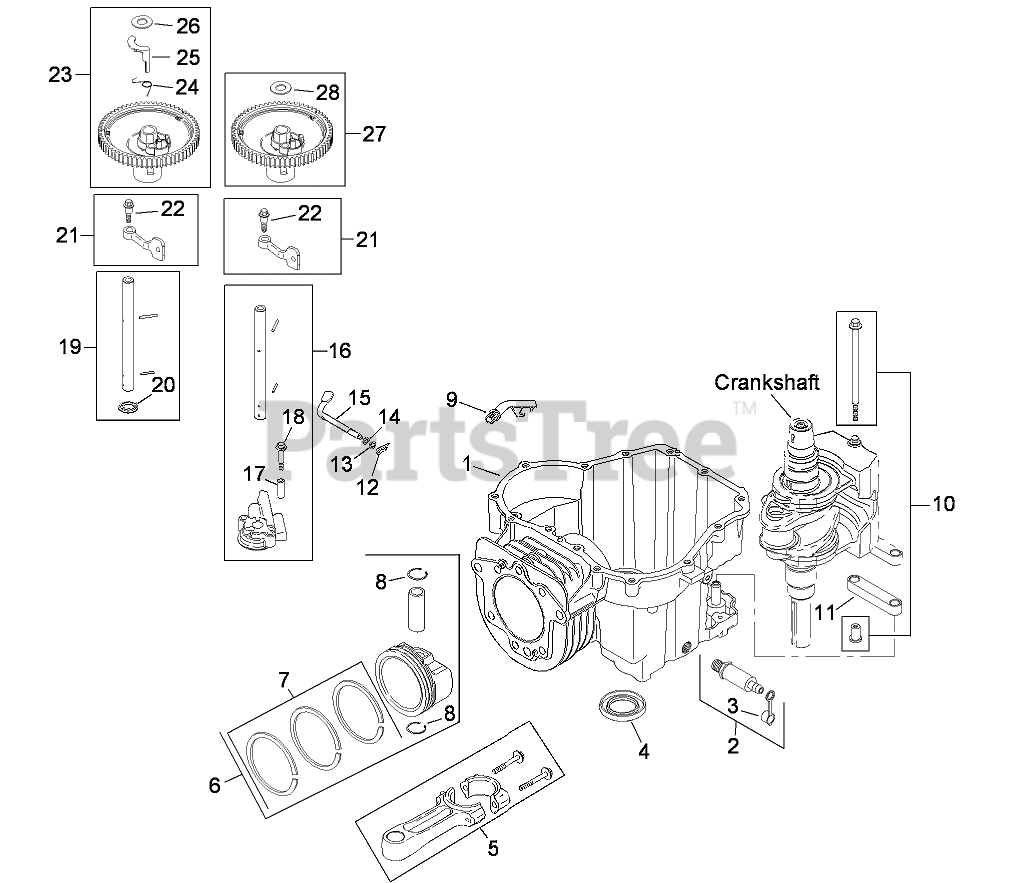

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 522 02

CRANKCASE (SV530/540 SHORT BLOCK)
(Superseded to 20 522 17)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 25 755 14-S

OIL DRAIN VALVE ASM (INCLUDES 3)

Note: Obtain parts from www.kohlerplus.com

$26.99

$

In Stock, only 1 left!

0

3

Kohler 25 173 14-S

CAP-VALVE, OIL DRAIN

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

4

Kohler 20 032 01-S

Seal-Oil
(Superseded to 20 032 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 11

0

5

Kohler 20 067 04-S

Connecting Rod ASM
(Superseded to 20 067 06-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 20 874 01-S

Piston and Ring Set (94 mm) (INCLUDES 7, 8)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 20 108 01-S

Ring Set (94 mm)
(Superseded to 20 108 04-S)

Note: Obtain parts from www.kohlerplus.com

$63.99

$

In Stock, only 1 left!

0

8

Kohler 20 018 04-S

Retainer-Pin, Piston

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 20 123 02-S

Tube-Back, Drain

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 10

0

10

Kohler 20 380 16-S

LOCATING PIN ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 20 186 02-S

LINKAGE-WEIGHT, BALANCE
(Superseded to 20 186 06-S)

Note: Obtain parts from www.kohlerplus.com

$17.99

$

Usually ships in 2-5 days

0

12

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

13

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

14

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

15

Kohler 20 144 02-S

Shaft-Cross, Governor

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

16

Kohler 20 393 02-S

OIL PUMP ASM (INCLUDES 17, 18)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

In Stock, only 1 left!

0

17

Kohler 20 112 02-S

Spacer-Screw, Oil Pump
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 20 086 13-S

Screw-Pump, Oil
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 20 144 11-S

CAMSHAFT CENTER ASM (EXHAUST) (INCLUDES 20)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

In Stock, only 1 left!

0

20

Kohler 20 468 08-S

WASHER-THRUST

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

21

Kohler 20 090 01-S

Cam Lever ASM (INCLUDES 22)
(Superseded to 20 090 12-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

22

Kohler 20 086 06-S

Bolt-Shoulder (M6x1x26)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

23

Kohler 20 010 04-S

Cam Gear ASM (EXHAUST) (INCLUDES 24-26)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

24

Kohler 20 089 06-S

Spring-A C R

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

25

Kohler 20 044 16-S

Weight-A C R
(Superseded to 20 044 32-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 1 left!

0

26

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

27

Kohler 20 010 04-S

Cam Gear ASM (INTAKE) (INCLUDES 28)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

28

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0
