74360 (Z 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 270000001 - 270999999) (2007) OIL PAN & LUBRICATION ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

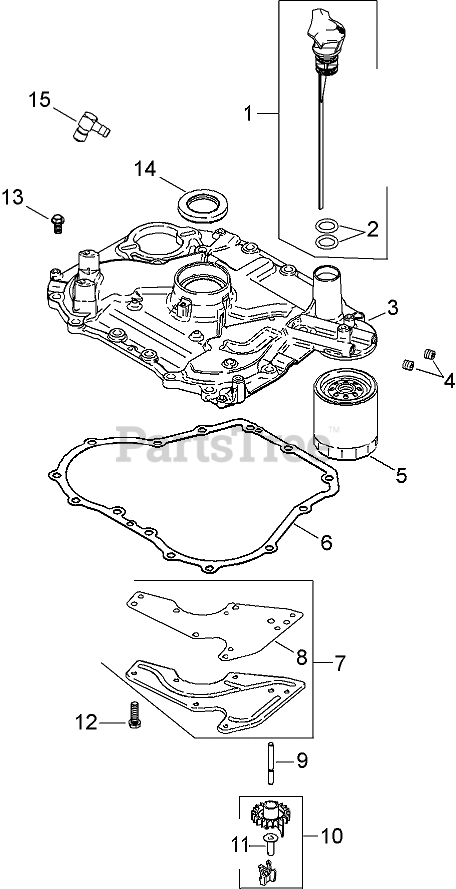

OIL PAN & LUBRICATION ASSEMBLY Parts Diagram

  • Title
1

Kohler 20 040 02-S

DIPSTICK BLADE KIT (YELLOW) (INCLUDES 2)
(Superseded to 20 040 08-S)

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, Qty 9

0

2

Kohler 20 153 01-S

O-RING
(Superseded to 25 153 09-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 1 left!

0

3

Kohler 20 009 10-S

CLOSURE PLATE ASM (INCLUDES 6, 15)

Note: Obtain parts from www.kohlerplus.com

$194.99

$

In Stock, only 1 left!

0

4

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

5

Kohler 12 050 01-S

FILTER-OIL

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

6

Kohler 20 041 01-S

Gasket-Plate, Closure
(Superseded to 20 041 21-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 20 096 02-S

OIL PASSAGE COVER KIT (INCLUDES 8)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 20 041 02-S

Gasket-Passage, Oil

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 6

0

9

Kohler 20 144 03-S

Shaft-Gear, Governor

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 4 left!

0

10

Kohler 20 310 03-S

GOVERNOR GEAR ASM (INCLUDES 11)
(Superseded to 25 310 09-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 4 left!

0

11

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

12

Kohler M-545013-S

SCREW-FLG, THD FRM (M5X0.8X13)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 9

0

13

Kohler M-851030-S

Screw-Flange, Hex (M8x1.25x30)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 20 032 01-S

Seal-Oil
(Superseded to 20 032 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 11

0

15

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0
