74352 (Z 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) HYDRO & BELT DRIVE ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

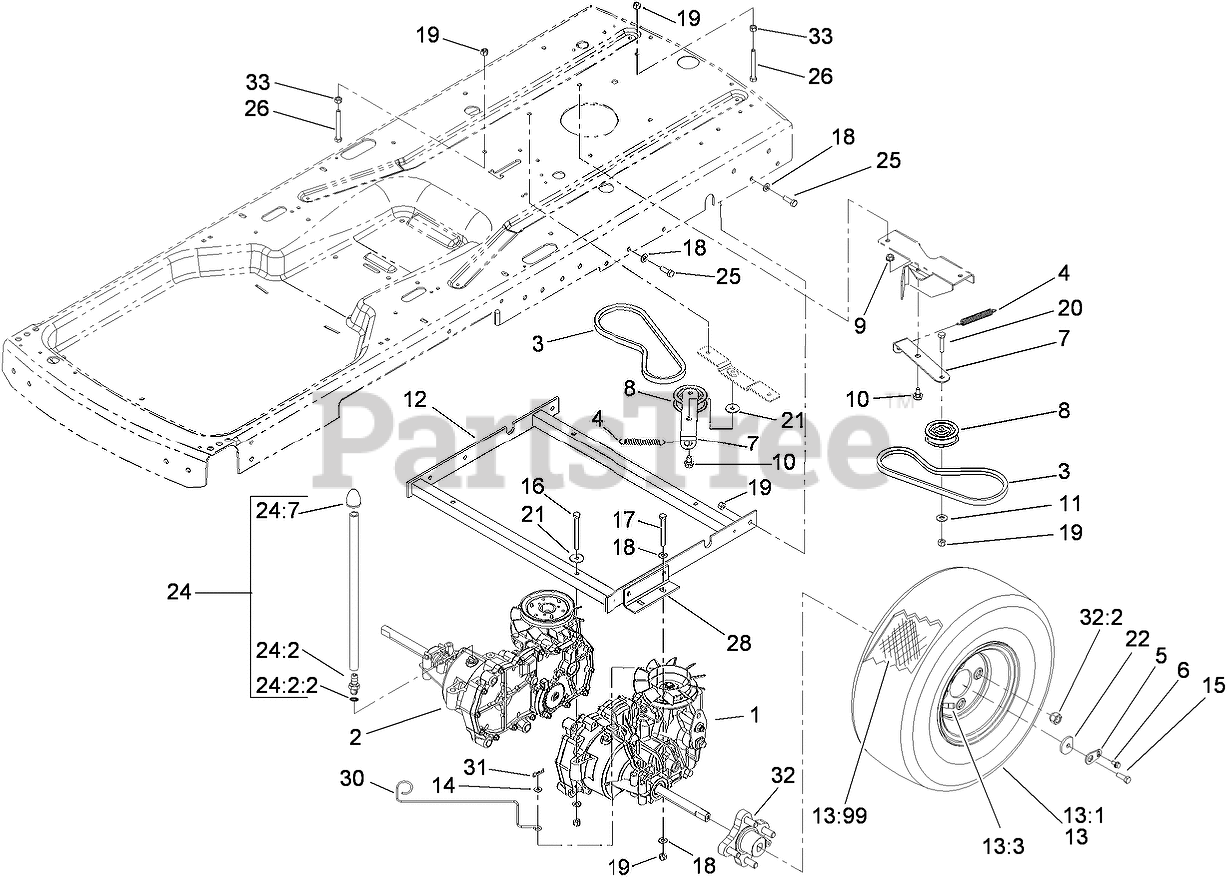

HYDRO & BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 108-2394

TRANSAXLE-HYDRO, LH
(Superseded to 114-8521)

$2229.99

$

Usually ships in 3-6 days

0

2

Toro 108-2393

TRANSAXLE-HYDRO, RH
(Superseded to 114-8520)

$2204.99

$

Usually ships in 3-6 days

0

3

Toro 106-2174

V-BELT

$24.99

$

In Stock, only 2 left!

0

4

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 8

0

5

Toro 105-3438

TAB-LOCKING

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Toro 105-7047

ARM-IDLER

$15.99

$

In Stock, only 2 left!

0

8

Toro 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 17

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

10

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 107-4878-03

HYDRO MOUNT ASM

$208.99

$

In Stock, only 1 left!

0

13

Toro 106-7005

REAR WHEEL ASM

$

$

Not available

13:1

$236.99

$

Usually ships in 3-6 days

0

13:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

13:99

$33.99

$

In Stock, only 1 left!

0

14

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

16

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 6

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 8

0

22

106-7001

WASHER-WHEEL

$

$

Not available

24

Toro 106-7002

VENT HOSE ASM

$75.99

$

In Stock, only 1 left!

0

24:2

Toro 93-3818

FITTING ASM

$15.99

$

Usually ships in 3-6 days

0

24:2:2

Toro 93-3816

O-RING

$

$

Currently unavailable

24:7

Toro 107-1701

CAP VENT ASM

$21.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 6

0

28

Toro 105-7039-03

SUPPORT-HYDRO

$

$

Not available

30

Toro 107-4875

ROD-BYPASS

$28.99

$

Usually ships in 3-6 days

0

31

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

32

Toro 108-9533

HUB ASM

$190.99

$

Usually ships in 3-6 days

0

32:2

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0
