74352 (Z 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) ENGINE & VALVE GASKET SET ASSEMBLIES Parts Diagram

48" TimeCutter Zero-Turn Mower

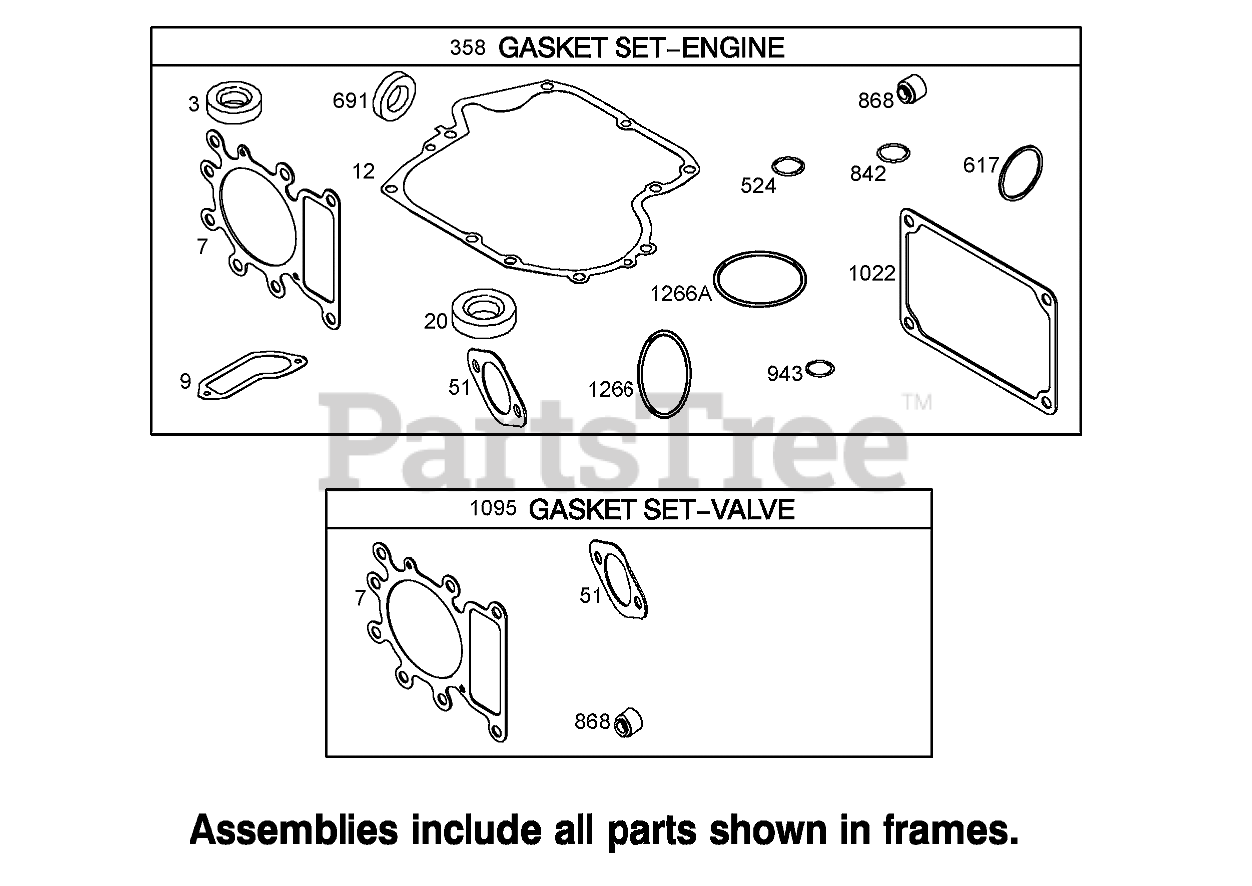

ENGINE & VALVE GASKET SET ASSEMBLIES Parts Diagram

  • Title
3

Briggs & Stratton 391086

Seal-Oil (Magneto Side)
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 699168

Gasket-Head, Cylinder
(Superseded to 796584)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil (PTO Side)
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 697191

Gasket Set?Engine
(Superseded to 796187)

Note: Obtain parts from www.briggsandstratton.com

$94.99

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 16

0

524

Briggs & Stratton 691032

Seal (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 8

0

842

Briggs & Stratton 691031

Seal (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal?O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 691581

Valve Gasket Set
(Superseded to 796189)

Note: Obtain parts from www.briggsandstratton.com

$64.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring (Intake Elbow)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0
