74352 (Z 480) - Toro 48" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 48 INCH DECK ASSEMBLY Parts Diagram

48" TimeCutter Zero-Turn Mower

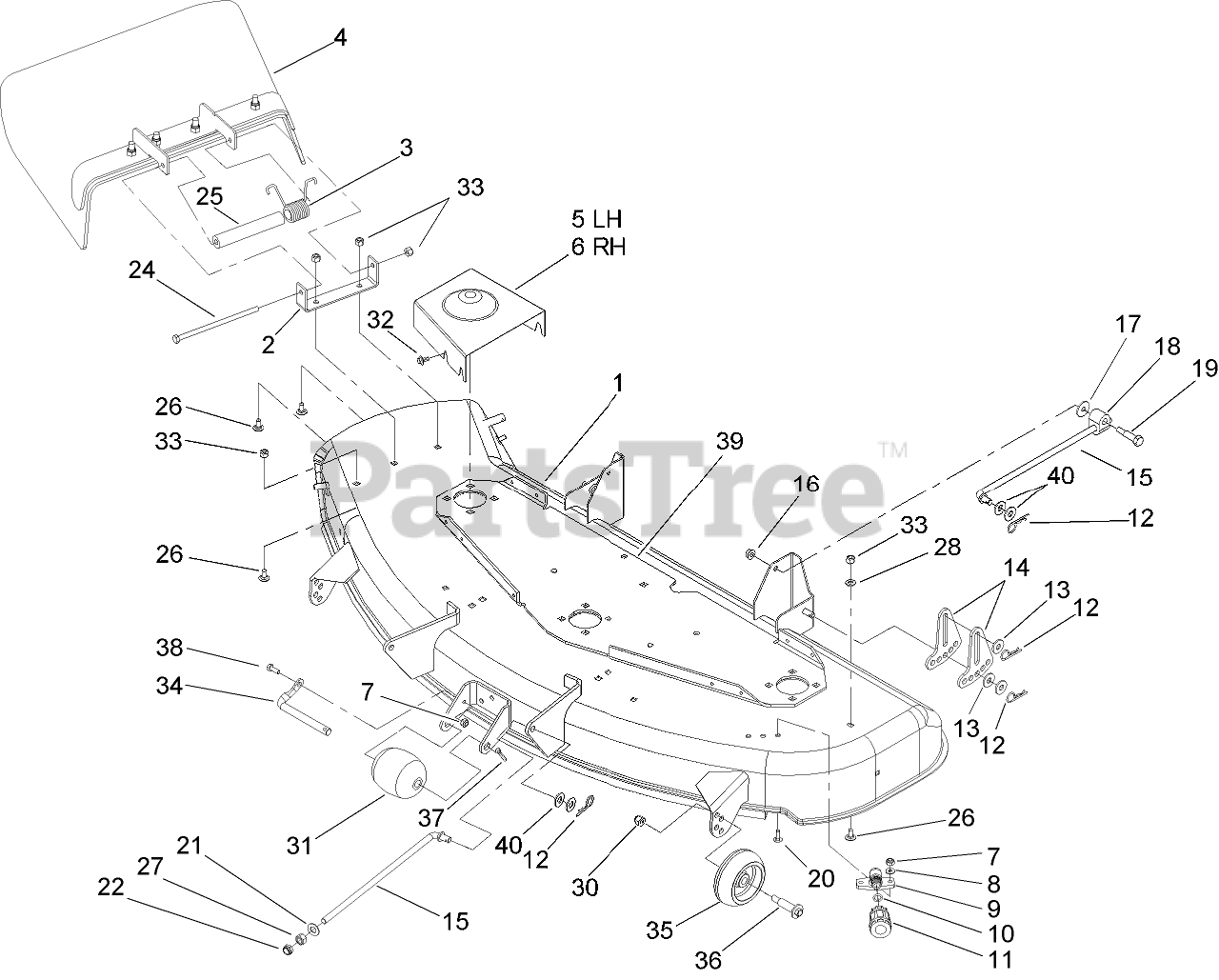

48 INCH DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 108-7173

48 INCH DECK ASM

$

$

Not available

2

Toro 108-8581-03

BRACKET-PIVOT

$98.99

$

Usually ships in 3-6 days

0

3

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

4

Toro 108-8591

DEFLECTOR ASM

$237.99

$

Usually ships in 3-6 days

0

5

Toro 108-7167-03

COVER-BELT, LH

$74.99

$

Usually ships in 3-6 days

0

6

Toro 108-7166-03

COVER-BELT, RH

$74.99

$

Usually ships in 3-6 days

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

10

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

11

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

12

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

14

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

15

Toro 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

16

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

17

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

18

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

19

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

20

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

24

Toro 108-8539

BOLT-HH

$16.99

$

Usually ships in 3-6 days

0

25

Toro 108-7159

SPACER-DEFLECTOR

$11.99

$

Usually ships in 3-6 days

0

26

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

27

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

31

Toro 94-1599

ROLLER

$13.99

$

In Stock, Qty 16

0

32

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

35

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

36

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

37

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

38

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 108-7168-01

PLATE-REINFORCEMENT, DECK

$

$

Not available

40

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
