74351 (18-44 Z) - Toro 44" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) DEFLECTOR AND BAFFLE ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

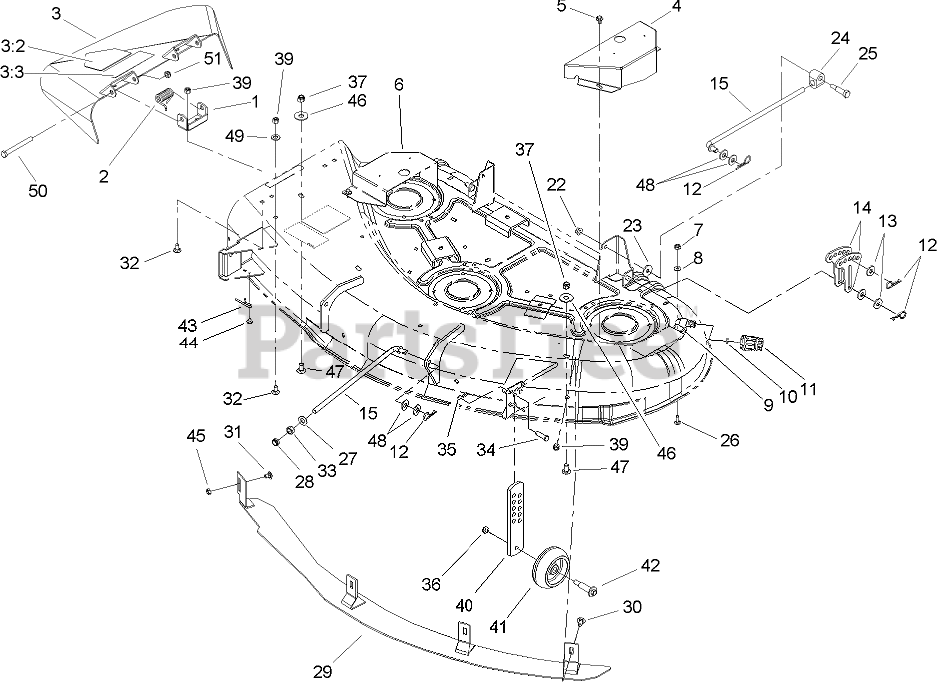

DEFLECTOR AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

2

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

3

Toro 100-8003

DEFLECTOR/DECAL ASM

$364.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

3:3

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

4

Toro 104-3646-01

COVER-BELT, LH

$

$

Not available

5

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

6

Toro 104-3645-01

COVER-BELT, RH

$73.99

$

Usually ships in 3-6 days

0

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

10

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

11

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

12

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

13

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

14

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

15

Toro 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

22

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

23

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

24

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

25

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

26

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

27

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

28

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

29

Toro 93-9950-03

Baffle

$166.99

$

In Stock, only 1 left!

0

30

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Toro 3230-19

SCREW-CARR

$6.49

$

In Stock, only 3 left!

0

32

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

33

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

34

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

35

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

36

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

37

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 93-8010

PLATE-GAGE, WHEEL

$77.99

$

In Stock, only 2 left!

0

41

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

42

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

43

Toro 94-1981

SPRING-GAGE, WHEEL

$8.99

$

In Stock, only 2 left!

0

44

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

46

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

47

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

48

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

49

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

50

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

51

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0
