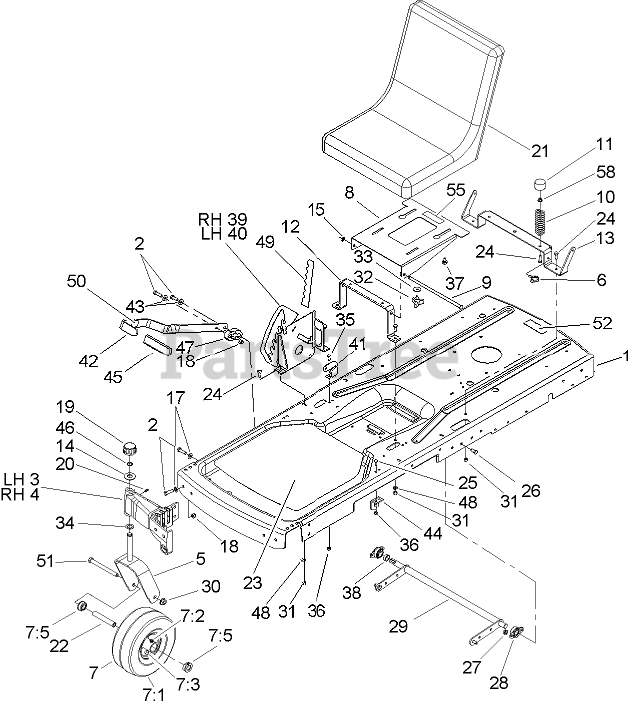

74350 (17-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 240000001 - 240000178) (2004) FRAME ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 107-1744-01

FRAME
(Superseded to 108-2325-01)

$

$

Not available

2

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

3

Toro 105-6986-01

CASTER-LH

$

$

Not available

4

Toro 105-6985-01

CASTER-RH

$

$

Not available

5

Toro 106-2196-01

CASTER FORK ASM
(Superseded to 110-6581-01)

$117.99

$

In Stock, only 1 left!

0

6

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

7

Toro 105-3471

FRONT WHEEL AND TIRE ASM

$79.99

$

In Stock, only 2 left!

0

7:1

Toro 105-1943

TIRE

$82.99

$

In Stock, only 1 left!

0

7:2

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

7:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

7:5

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

7:99

Toro 93-4244

TUBE-INNER (W/VALVE)

Note: Not illustrated

$16.99

$

In Stock, only 2 left!

0

8

Toro 105-6953-03

BRACKET-SEAT

$

$

Not available

9

Toro 105-6955

PIN-PIVOT

$

$

Not available

10

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

11

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

12

Toro 105-6954-03

BRACE-SEAT, FRONT

$

$

Not available

13

Toro 106-2210-03

BRACE-SEAT, REAR
(Superseded to 108-2358-03)

$113.99

$

Usually ships in 3-6 days

0

14

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

15

Toro 105-7004

E-RING

$0.99

$

In Stock, Qty 5

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

19

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

20

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21

Toro 106-2221

SEAT

$

$

Not available

22

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 10

0

23

Toro 105-3460

PAD-ANTISKID

$

$

Not available

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

29

Toro 105-3499-03

LIFT ARM ASM

$221.99

$

Usually ships in 3-6 days

0

30

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

33

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

34

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

37

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

38

Toro 106-2222

SPACER

$

$

Not available

39

Toro 106-2158-03

RH PLATE ASM

$

$

Not available

40

Toro 106-2159-03

LH PLATE ASM

$

$

Not available

41

Toro 106-2180

BRACKET-BELLCRANK

$7.99

$

Usually ships in 3-6 days

0

42

Toro 105-3435-03

LEVER-LIFT
(Superseded to 108-2317-03)

$69.99

$

Usually ships in 3-6 days

0

43

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

44

Toro 105-3439

BRACKET-LIFT

$

$

Not available

45

Toro 105-3450

GRIP-LEVER, LIFT

$9.49

$

In Stock, only 3 left!

0

46

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

47

Toro 106-2211

BLOCK-LIFT

$21.99

$

Usually ships in 3-6 days

0

48

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

49

Toro 106-2223

DECAL-HOC

$

$

Not available

50

Toro 106-8743

DECAL-HOC

$2.99

$

Usually ships in 3-6 days

0

51

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

52

Toro 106-7026

DECAL-TRANSPORT

$

$

Not available

55

Toro 106-8716

DECAL-SERVICES

$

$

Not available

58

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
