74330 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 240001180 - 240999999) (2004) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

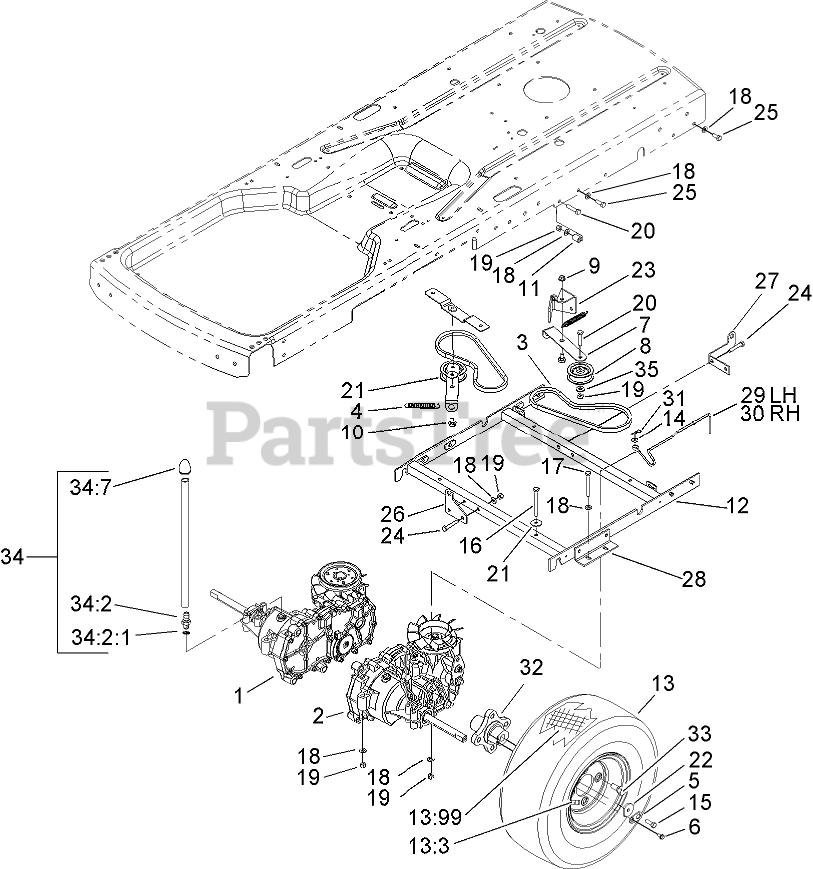

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 107-2466

RH HYDROSTAT ASM
(Superseded to 114-8520)

$2204.99

$

Usually ships in 3-6 days

0

2

Toro 107-2465

LH HYDROSTAT ASM
(Superseded to 114-8521)

$2229.99

$

Usually ships in 3-6 days

0

3

Toro 106-2174

V-BELT

$24.99

$

In Stock, only 3 left!

0

4

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 7

0

5

Toro 105-3438

TAB-LOCKING

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

7

Toro 105-7047

ARM-IDLER

$15.99

$

In Stock, only 2 left!

0

8

Toro 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 20+

0

9

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

10

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

11

Toro 105-1941

SPACER

$

$

Not available

12

Toro 107-2462-03

HYDRO MOUNT ASM

$

$

Not available

13

Toro 106-7004

WHEEL AND TIRE ASM

$469.99

$

Usually ships in 3-6 days

0

13:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

13:99

Toro 107-2491

TUBE-TIRE

$83.99

$

In Stock, only 2 left!

0

14

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3210-5

SCREW-HH

$3.99

$

In Stock, Qty 6

0

16

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

22

106-7001

WASHER-WHEEL

$

$

Not available

23

Toro 107-1734

STOP-CLUTCH

$

$

Not available

24

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 105-7049

BRACKET-SPRING

$

$

Not available

27

Toro 105-7046

BRACKET-SPRING

$

$

Not available

28

Toro 105-7039-03

SUPPORT-HYDRO

$

$

Not available

29

Toro 107-2463

ARM-BYPASS, LH

$45.99

$

Usually ships in 3-6 days

0

30

Toro 107-2464

ARM-BYPASS, RH

$

$

Not available

31

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

32

Toro 106-6987-03

HUB-MACHINED
(Superseded to 108-9533)

$190.99

$

Usually ships in 3-6 days

0

33

Toro 71-4450

BOLT-LUG

$3.99

$

In Stock, only 2 left!

0

34

Toro 106-7002

VENT HOSE ASM

$79.99

$

In Stock, only 1 left!

0

34:2

Toro 93-3818

FITTING ASM

$15.99

$

Usually ships in 3-6 days

0

34:2:1

Toro 93-3816

O-RING

$

$

Currently unavailable

34:7

Toro 107-1701

CAP VENT ASM

$21.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
