74330 (16-42 Z) - Toro 42" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) 42IN DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

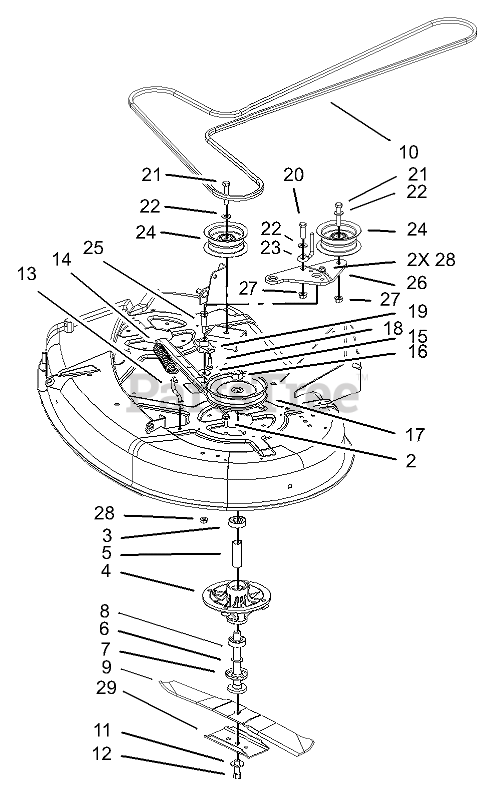

42IN DECK SPINDLE AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

4

Toro 88-4510

HOUSING-SPINDLE

$93.99

$

In Stock, Qty 14

0

5

Toro 62-3661

SPACER

$16.99

$

In Stock, Qty 20+

0

6

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 20+

0

7

Toro 80-4360

SHIELD-BEARING

$20.99

$

In Stock, Qty 19

0

8

Toro 80-4341

SHAFT-SPINDLE

$50.99

$

In Stock, Qty 5

0

9

Toro 106-2247-03

BLADE

$31.99

$

In Stock, Qty 11

0

10

Toro 106-2173

BELT-V

$83.99

$

In Stock, only 3 left!

0

11

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

13

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 20+

0

14

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

0

15

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

16

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 88-4980

BUSHING-ARM, IDLER

$16.99

$

In Stock, Qty 9

0

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 88-5070

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 20+

0

24

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

25

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

26

Toro 106-6995-01

ARM- IDLER
(Superseded to 107-2467-03)

$51.99

$

In Stock, only 2 left!

0

27

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

29

Toro 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 18

0
