74325 (Z 420) - Toro 42" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) 42 INCH DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

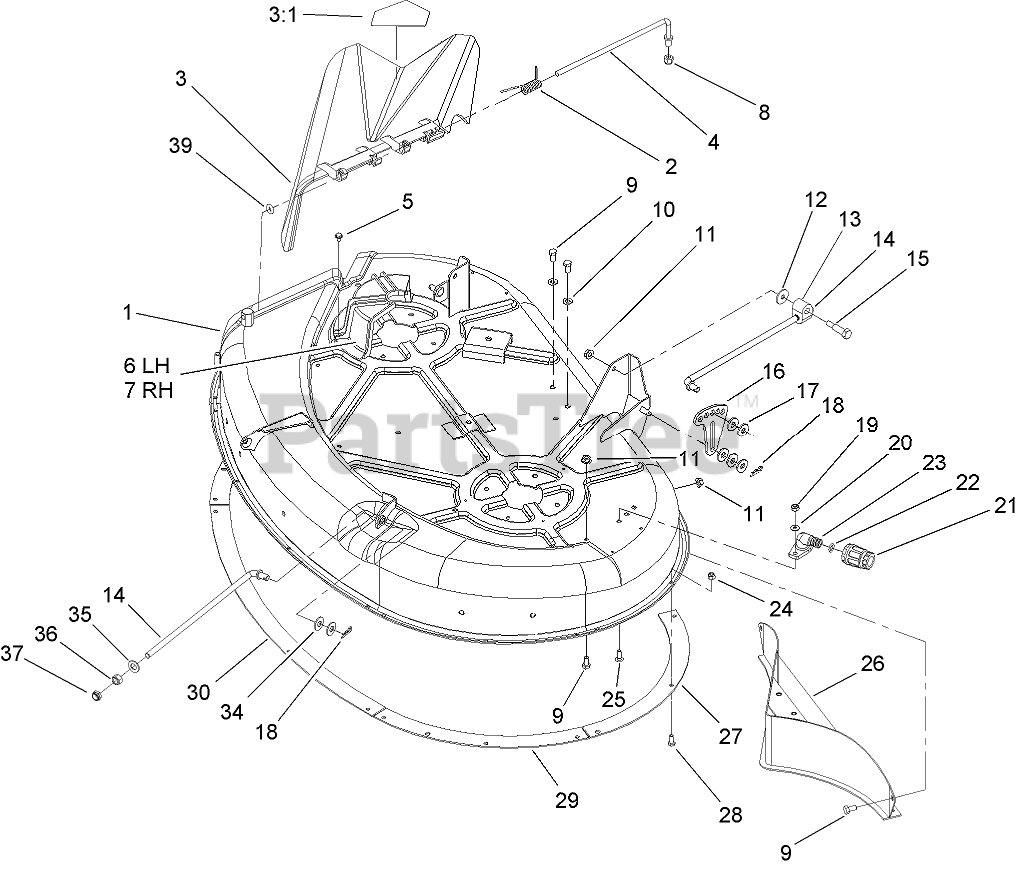

42 INCH DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 108-6103

42 Inch DECK ASM
(Superseded to 132-9330)

$1364.99

$

Usually ships in 3-6 days

0

2

Toro 57-6950

SPRING

$27.99

$

In Stock, only 1 left!

0

3

Toro 93-0317

DEFLECTOR ASM

$84.99

$

In Stock, only 3 left!

0

3:1

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

4

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 3 left!

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 88-4030

GUIDE-BELT, LH

$41.99

$

In Stock, only 1 left!

0

7

Toro 88-4020

GUIDE-BELT, RH

$41.99

$

In Stock, only 1 left!

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

12

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

14

Toro 105-3437

ROD-HANGER

$32.99

$

In Stock, only 4 left!

0

15

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

16

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

17

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

18

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

20

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, Qty 8

0

22

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

23

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 106-6983-03

REAR BAFFLE ASM

$

$

Not available

27

Toro 106-6954-03

RING-BLOW OUT, SIDE
(Superseded to 114-1619-03)

$26.99

$

In Stock, only 2 left!

0

28

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 106-6952-03

RING-BLOW OUT, SIDE

$12.99

$

In Stock, only 4 left!

0

30

Toro 106-6953-03

RING-BLOW OUT

$25.99

$

In Stock, only 4 left!

0

34

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3219-4

NUT-HEX

$3.99

$

Usually ships in 3-6 days

0

37

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

39

Toro 106-8745

O-RING

$1.99

$

In Stock, only 2 left!

0
