74313 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 402090000 - 403319680) Caster Wheel and Frame Assembly Parts Diagram

48" Z Master Zero-Turn Mower

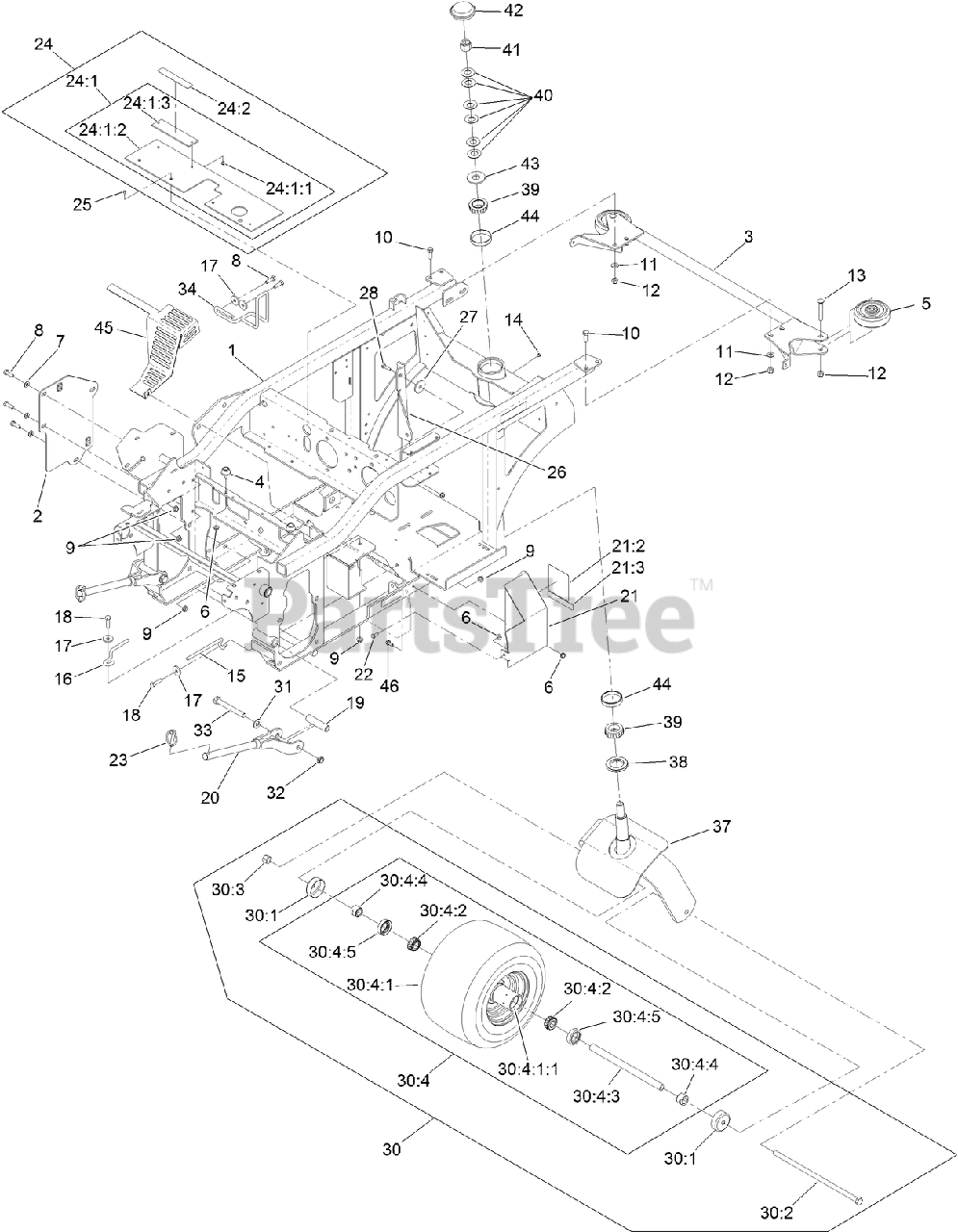

Caster Wheel and Frame Assembly Parts Diagram

  • Title
1

Toro 116-7482

FRAME ASM

$2474.99

$

Usually ships in 3-6 days

0

2

Toro 116-7396-03

PLATE-SUPPORT

$47.99

$

Usually ships in 3-6 days

0

3

Toro 109-0925-03

BUMPER-REAR

$288.99

$

Usually ships in 3-6 days

0

4

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 9

0

5

Toro 103-5408

ROLLER-BUMPER

$22.99

$

Usually ships in 3-6 days

0

6

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

14

$5.49

$

In Stock, Qty 11

0

15

Toro 103-8333

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

16

Toro 103-8349

GUIDE-BELT

$10.99

$

Usually ships in 3-6 days

0

17

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 1-633060

SPACER-WHEEL, SHORT

$14.99

$

Usually ships in 3-6 days

0

20

Toro 103-6596-03

ROD-PUSH

$123.99

$

Usually ships in 3-6 days

0

21

Toro 130-2879

DRIVE SHIELD ASM

$95.99

$

Usually ships in 3-6 days

0

21:2

Toro 116-8941

DECAL-BELT ROUTING

$6.99

$

Usually ships in 3-6 days

0

21:3

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 103-4155

PIN-LYNCH

$6.49

$

Usually ships in 3-6 days

0

24

Toro 103-9476

LIFT SHIELD ASM

$101.99

$

Usually ships in 3-6 days

0

24:1

SHIELD-LIFT

Note: Not serviced separately

$

$

Not available

24:1:1

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

24:1:2

Toro 103-8819

See Supercession: 103-9476
(Superseded to 103-9476)

$101.99

$

Usually ships in 3-6 days

0

24:1:3

Toro 103-9114-03

PLATE-DECAL

$6.49

$

Usually ships in 3-6 days

0

24:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

25

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

26

Toro 109-5874-03

BRACE-PTO

$50.99

$

Usually ships in 3-6 days

0

27

Toro 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

28

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 130-2865

WHEEL AND AXLE ASM

$601.99

$

Usually ships in 3-6 days

0

30:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

30:2

Toro 103-7738

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

30:3

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

30:4

Toro 130-2864

WHEEL AND BEARING ASM

$601.99

$

Usually ships in 3-6 days

0

30:4:1

Deck ASM

Note: Not serviced separately

$

$

Not available

30:4:1:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

30:4:2

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

30:4:3

Toro 126-5362

AXLE CASTER ASM

$29.99

$

Usually ships in 3-6 days

0

30:4:4

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

30:4:5

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

31

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

33

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

34

Toro 116-8323

GUIDE-BELT
(Superseded to 135-5784)

$45.99

$

In Stock, only 1 left!

0

37

Toro 103-3351-03

FORK-REAR CASTER

$410.99

$

Usually ships in 3-6 days

0

38

Toro 103-9027

SEAL-GREASE

$13.99

$

Usually ships in 3-6 days

0

39

Toro 103-9028

BEARING-ROLLER, CONE TAPER

$29.99

$

In Stock, only 2 left!

0

40

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

41

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

42

Toro 103-9057

CAP-GREASE
(Superseded to 126-9882)

$7.99

$

Usually ships in 3-6 days

0

43

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

44

Toro 103-9029

CUP-TAPERED, ROLLER BEARING

$10.99

$

In Stock, Qty 7

0

45

Toro 116-7272-03

SHIELD-HEAT

$47.99

$

Usually ships in 3-6 days

0

46

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0
