74313 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 316000001 - 316999999) (2016) ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower

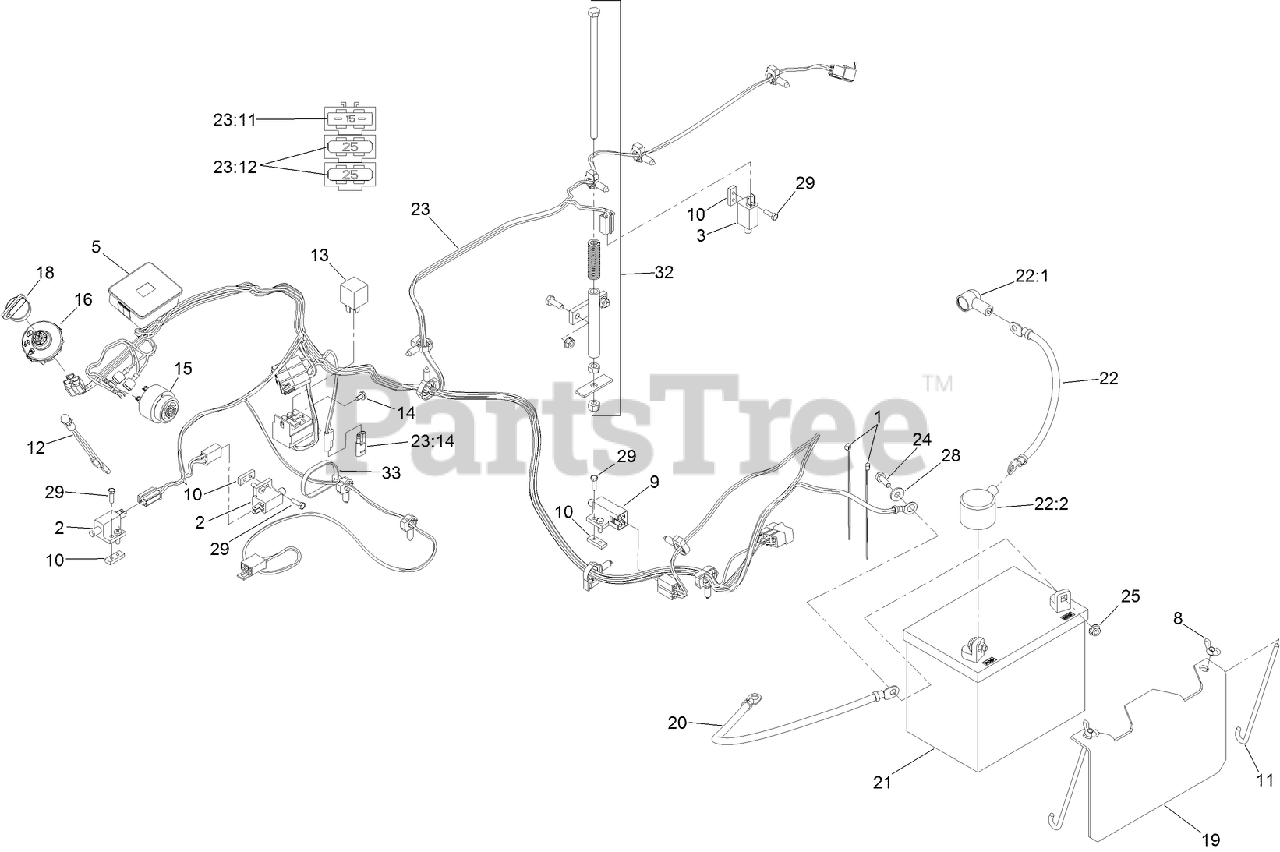

ELECTRICAL SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

3

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

5

Toro 116-8812

HOUR METER ASM

$145.99

$

Usually ships in 3-6 days

0

8

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

9

Toro 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

10

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

11

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

12

Toro 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

13

$23.99

$

In Stock, Qty 20+

0

14

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

15

Toro 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

16

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$28.99

$

In Stock, Qty 20+

0

18

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

19

Toro 103-4161-03

HOLD DOWN-BATTERY

$39.99

$

Usually ships in 3-6 days

0

20

Toro 103-8355

CABLE-BATTERY, NEGATIVE

$17.99

$

Usually ships in 3-6 days

0

21

BATTERY (300 CCA, WET)

Note: Not serviced separately

$

$

Not available

21

BATTERY (300 CCA, WET)

Note: Obtain locally.

$

$

Not available

22

Toro 116-4730

CABLE-BATTERY, POSITIVE

$19.99

$

Usually ships in 3-6 days

0

22:1

Toro 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

22:2

Toro 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

23

Toro 116-9114

HARNESS-WIRING

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$385.99

$

Usually ships in 3-6 days

0

23:11

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

23:12

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 17

0

23:14

Toro 116-0053

CAP-PLUG

$39.99

$

Usually ships in 3-6 days

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

$0.99

$

In Stock, Qty 20+

0

32

Toro 103-8528

HOPPER SWITCH ACTUATOR ASM

$101.99

$

Usually ships in 3-6 days

0

33

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
