74312 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 402080000 - 403226947) Fuel Tank Assembly Parts Diagram

48" Z Master Zero-Turn Mower

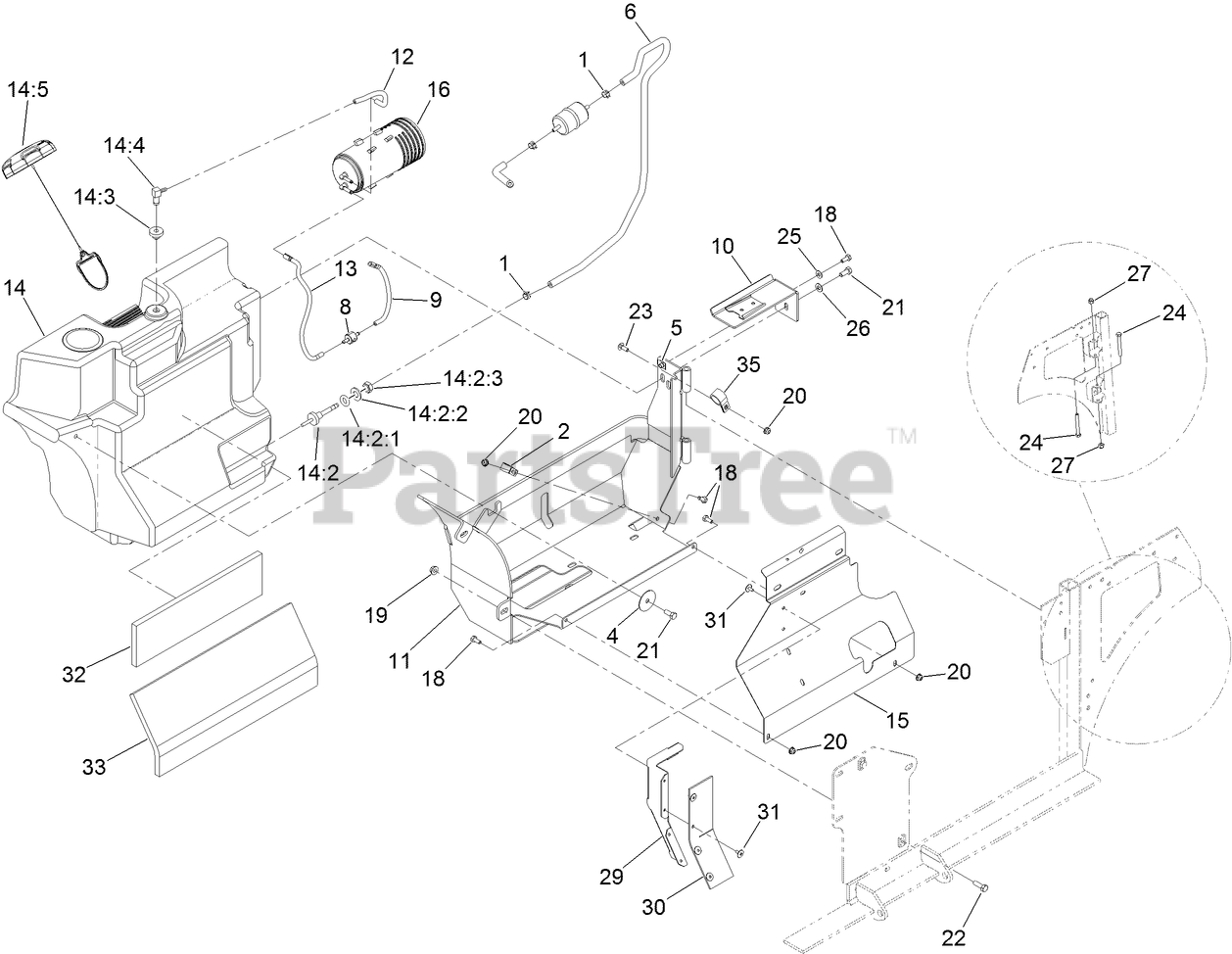

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

2

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

4

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

5

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

6

Toro 116-5366

FUEL LINE ASM

$50.99

$

Usually ships in 3-6 days

0

8

Toro 133-8499

VALVE-CHECK, VACUUM

$15.99

$

In Stock, only 3 left!

0

9

Toro 116-2619

HOSE-VENT, FORMED

$8.49

$

Usually ships in 3-6 days

0

10

Toro 116-2847-03

CANISTER BRACKET ASM

$59.99

$

Usually ships in 3-6 days

0

11

Toro 116-2848-03

TANK FRAME ASM

$348.99

$

Usually ships in 3-6 days

0

12

Toro 116-2966

HOSE-VENT, FORMED

$3.49

$

Usually ships in 3-6 days

0

13

Toro 116-2967

HOSE-VENT, FORMED

$8.49

$

Usually ships in 3-6 days

0

14

Toro 116-8365

FUEL TANK ASM

$562.99

$

Usually ships in 3-6 days

0

14:2

Toro 103-6057

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$49.99

$

Usually ships in 3-6 days

0

14:2:1

Toro 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

14:2:2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14:2:3

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

14:3

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

14:4

Toro 100-1596

See Supercession: 104-5228
(Superseded to 104-5228)

$18.99

$

Usually ships in 3-6 days

0

14:5

Toro 120-5461

See Supercession: 137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

15

Toro 116-7928-03

PANEL-TANK SHIELD

$64.99

$

Usually ships in 3-6 days

0

16

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Toro 322-3

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-5

SCREW-HH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$0.99

$

In Stock, Qty 20+

0

23

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

24

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

29

Toro 103-7095-03

DEFLECTOR-AIR

$69.99

$

Usually ships in 3-6 days

0

30

Toro 103-9658

FLAP-RUBBER

$23.99

$

Usually ships in 3-6 days

0

31

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

32

Toro 103-7825

INSULATION-FOAM PAD, FRONT

$14.99

$

Usually ships in 3-6 days

0

33

Toro 103-7824

INSULATION-FOAM PAD, REAR

$30.99

$

Usually ships in 3-6 days

0

35

Toro 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

0
