74311 TE (8000) - Toro 122cm Z Master Zero-Turn Mower (SN: 404330000 - 405699999) Pump and Muffler Guard Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

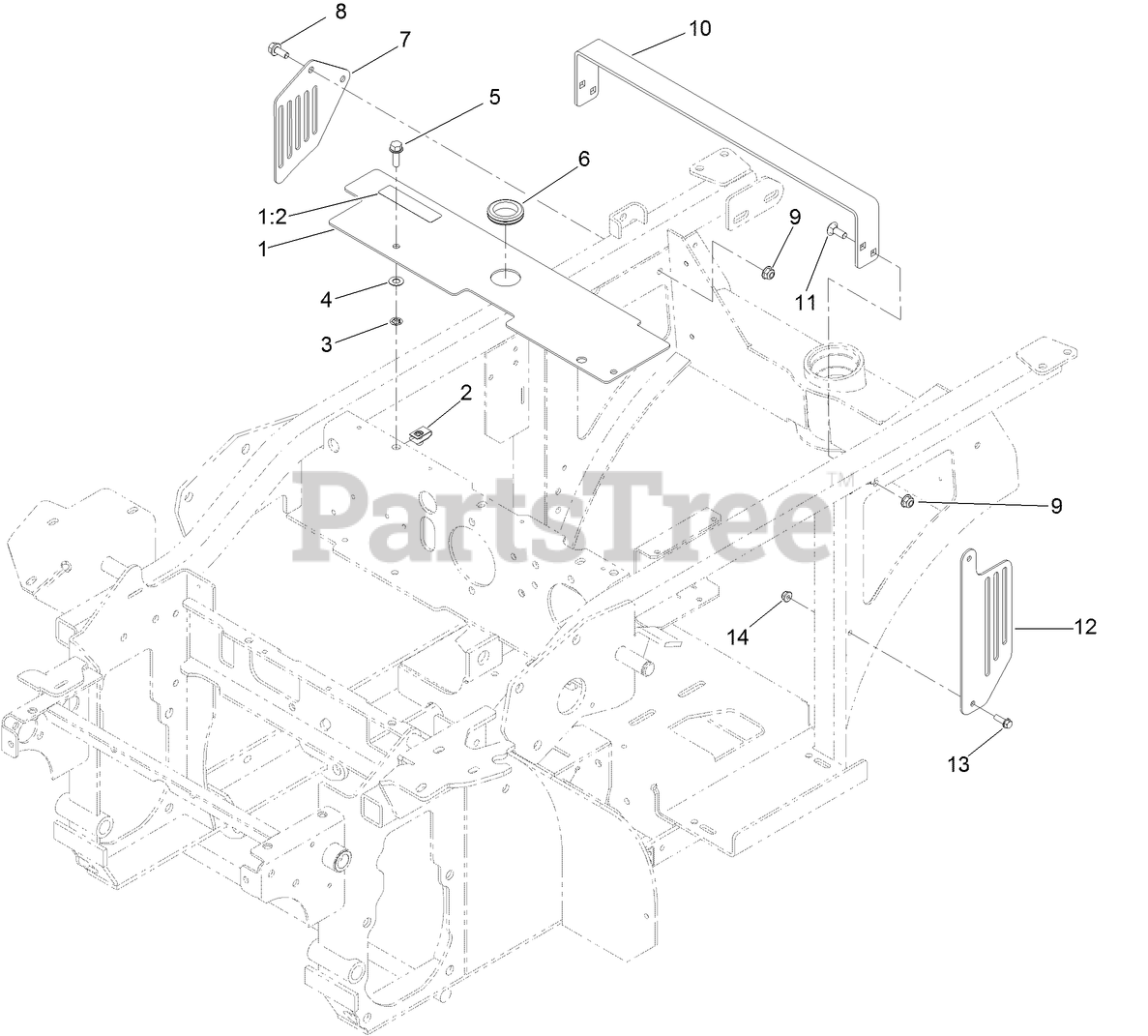

Pump and Muffler Guard Assembly Parts Diagram

  • Title

1

Toro 133-1826

PUMP GUARD ASM

$46.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

2

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

3

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

5

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

6

Toro 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

7

Toro 133-1824-03

GUARD-MUFFLER, RH

$

$

Currently unavailable

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 133-1823-03

GUARD-MUFFLER, TOP

$

$

Currently unavailable

11

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

12

Toro 133-1822-03

GUARD-MUFFLER, LH

$

$

Currently unavailable

13

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
