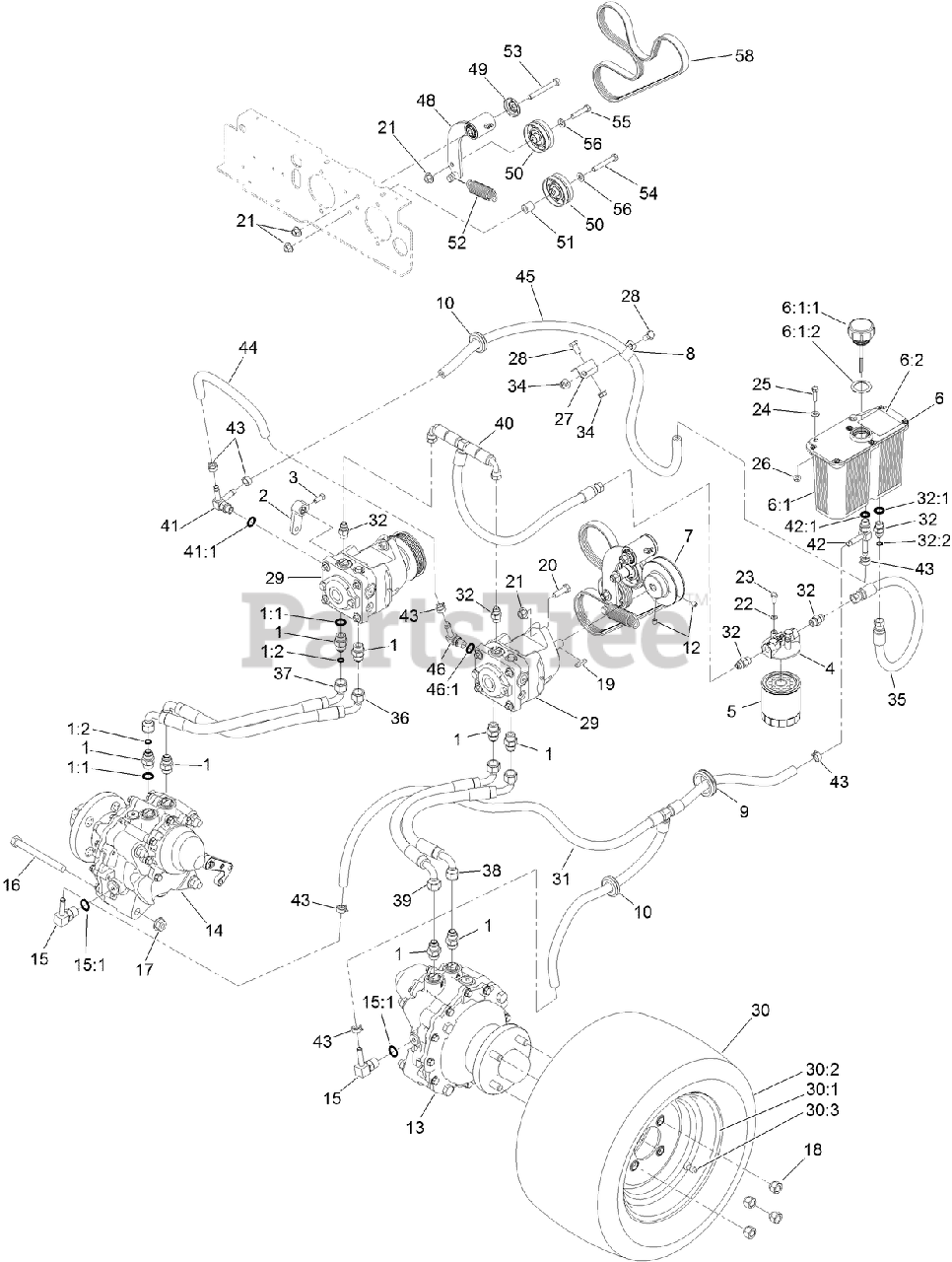

74311 TE (8000) - Toro 122cm Z Master Zero-Turn Mower (SN: 404330000 - 405699999) Hydraulic Assembly Parts Diagram

122cm Z Master Zero-Turn Mower

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

1:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

1:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

2

Toro 1-632208

ARM-CONTROL, PUMP

$28.99

$

In Stock, Qty 20+

0

3

Toro 120-6474

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

4

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

5

Toro 114-3494

ELEMENT-FILTER, 25 MICRON

$17.99

$

In Stock, only 2 left!

0

6

Toro 116-9274

RESERVOIR ASM

$347.99

$

Usually ships in 3-6 days

0

6:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

6:1:1

Toro 116-9273

RESERVOIR CAP ASM

$26.99

$

Usually ships in 3-6 days

0

6:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

6:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

7

Toro 103-4246

SHEAVE

$107.99

$

Usually ships in 3-6 days

0

8

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 103-7706

GROMMET

$5.49

$

Usually ships in 3-6 days

0

10

Toro 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

12

Toro 1-803310

SCREW-SET

$2.99

$

In Stock, only 1 left!

0

13

Toro 116-7401

MOTOR-HYD, LH

$1549.99

$

Usually ships in 3-6 days

0

14

Toro 116-7402

MOTOR-HYD, RH

$1549.99

$

Usually ships in 3-6 days

0

15

Toro 354-134

FITTING-90

$68.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

16

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

17

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

18

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

22

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

23

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 103-8631

BRACKET-CLAMP

$12.99

$

Usually ships in 3-6 days

0

28

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

29

Toro 116-7836

12CC HYDRO PUMP ASM

$931.99

$

Usually ships in 3-6 days

0

30

Toro 130-2869

WHEEL AND TIRE ASM

$512.99

$

Usually ships in 3-6 days

0

30:1

Toro 130-2868

WHEEL

$230.99

$

Usually ships in 3-6 days

0

30:2

Toro 105-1945

TIRE

$284.99

$

Usually ships in 3-6 days

0

30:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

31

Toro 116-7831

HYDRAULIC HOSE ASM

$53.99

$

In Stock, only 1 left!

0

32

Toro 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 4 left!

0

32:1

Toro 1-603921

See Supercession: 237-42
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

32:2

Toro 103-1020

O-RING

$1.49

$

Usually ships in 3-6 days

0

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 126-4400

HYDRAULIC HOSE ASM

$36.99

$

Usually ships in 3-6 days

0

36

Toro 116-7827

HYDRAULIC HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

37

Toro 116-7828

HYDRAULIC HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

38

Toro 116-7829

HYDRAULIC HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

39

Toro 116-7830

HYDRAULIC HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

40

Toro 109-1264

HYDRAULIC HOSE ASM

$93.99

$

Usually ships in 3-6 days

0

41

Toro 103-5469

ADAPTER-TEE

$88.99

$

Usually ships in 3-6 days

0

41:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

42

Toro 103-1828

ADAPTER-RUN, TEE

$46.99

$

Usually ships in 3-6 days

0

42:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

43

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

44

Toro 103-5452

HOSE-HYD

$9.49

$

Usually ships in 3-6 days

0

45

Toro 103-5477

HOSE-HYD

$33.99

$

Usually ships in 3-6 days

0

46

Toro 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

46:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

48

Toro 103-7349

IDLER ASM

$183.99

$

Usually ships in 3-6 days

0

49

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

50

Toro 116-6361

PULLEY

$59.99

$

In Stock, only 2 left!

0

51

Toro 106-5574

SPACER-MOUNTING, STEERING

$12.99

$

Usually ships in 3-6 days

0

52

Toro 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

53

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

54

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

55

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

56

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

58

Toro 130-2871

BELT-V

$44.99

$

Usually ships in 3-6 days

0
