74311 TE (8000) - Toro 122cm Z Master Zero-Turn Mower (SN: 404330000 - 405699999) Hopper Door Assembly No. 130-2875 Parts Diagram

122cm Z Master Zero-Turn Mower

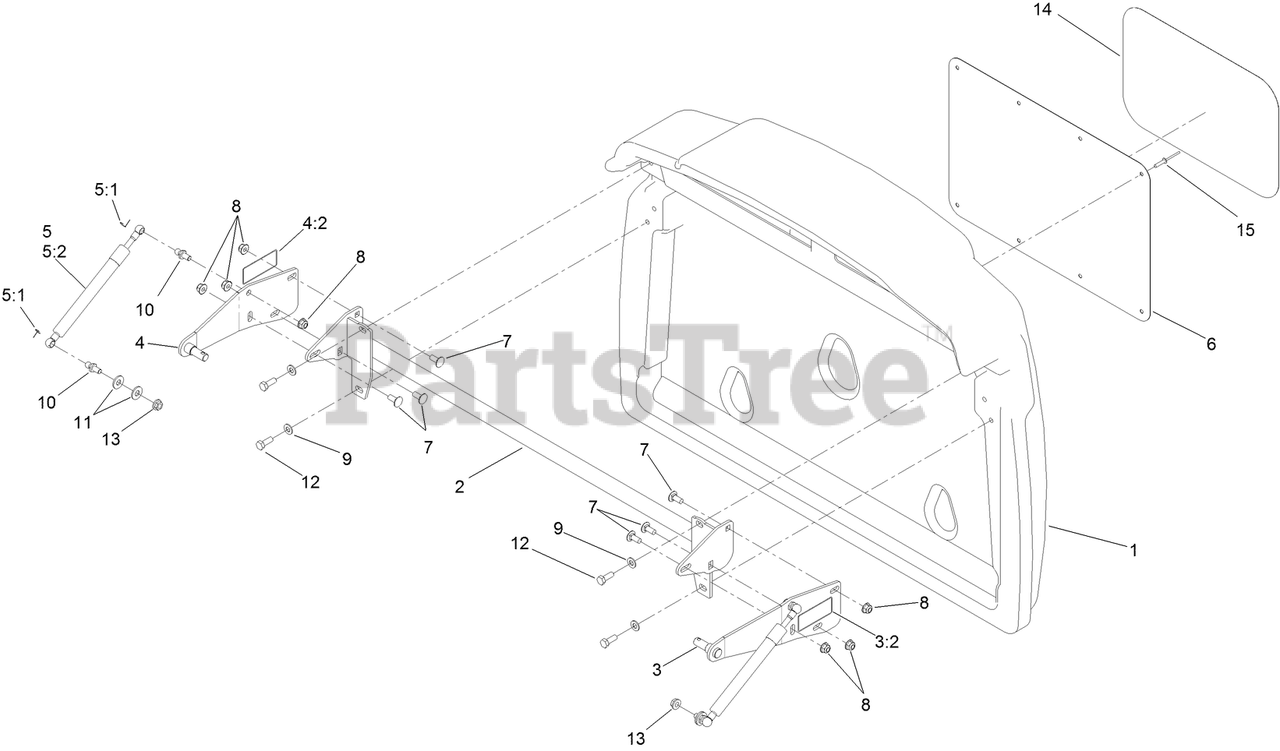

Hopper Door Assembly No. 130-2875 Parts Diagram

  • Title

1

Toro 130-2877

DOOR-HOPPER

$500.99

$

Usually ships in 3-6 days

0

2

Toro 109-4153-03

SUPPORT-DOOR

$153.99

$

Usually ships in 3-6 days

0

3

Toro 109-4253

LH DOOR PIVOT ASM

$94.99

$

In Stock, only 1 left!

0

3:2

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

4

Toro 109-4254

RH DOOR PIVOT ASM

$94.99

$

In Stock, only 1 left!

0

4:2

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

5

Toro 109-0715

DAMPER KIT

$139.99

$

Usually ships in 3-6 days

0

5:1

Toro 103-8324

CLIP-RETAINER

$1.49

$

In Stock, Qty 8

0

5:2

Toro 103-5746

SHOCK-GAS TENSION

$152.99

$

Usually ships in 3-6 days

0

6

Toro 130-8450-03

PLATE-DOOR, HOPPER

$27.99

$

Usually ships in 3-6 days

0

7

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 130-2886

DECAL

$41.99

$

Usually ships in 3-6 days

0

15

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0
