74311 (8000) - Toro 48" Z Master Zero-Turn Mower (SN: 314000001 - 314999999) (2014) GEARBOX ASSEMBLY NO. 103-3387 Parts Diagram

48" Z Master Zero-Turn Mower

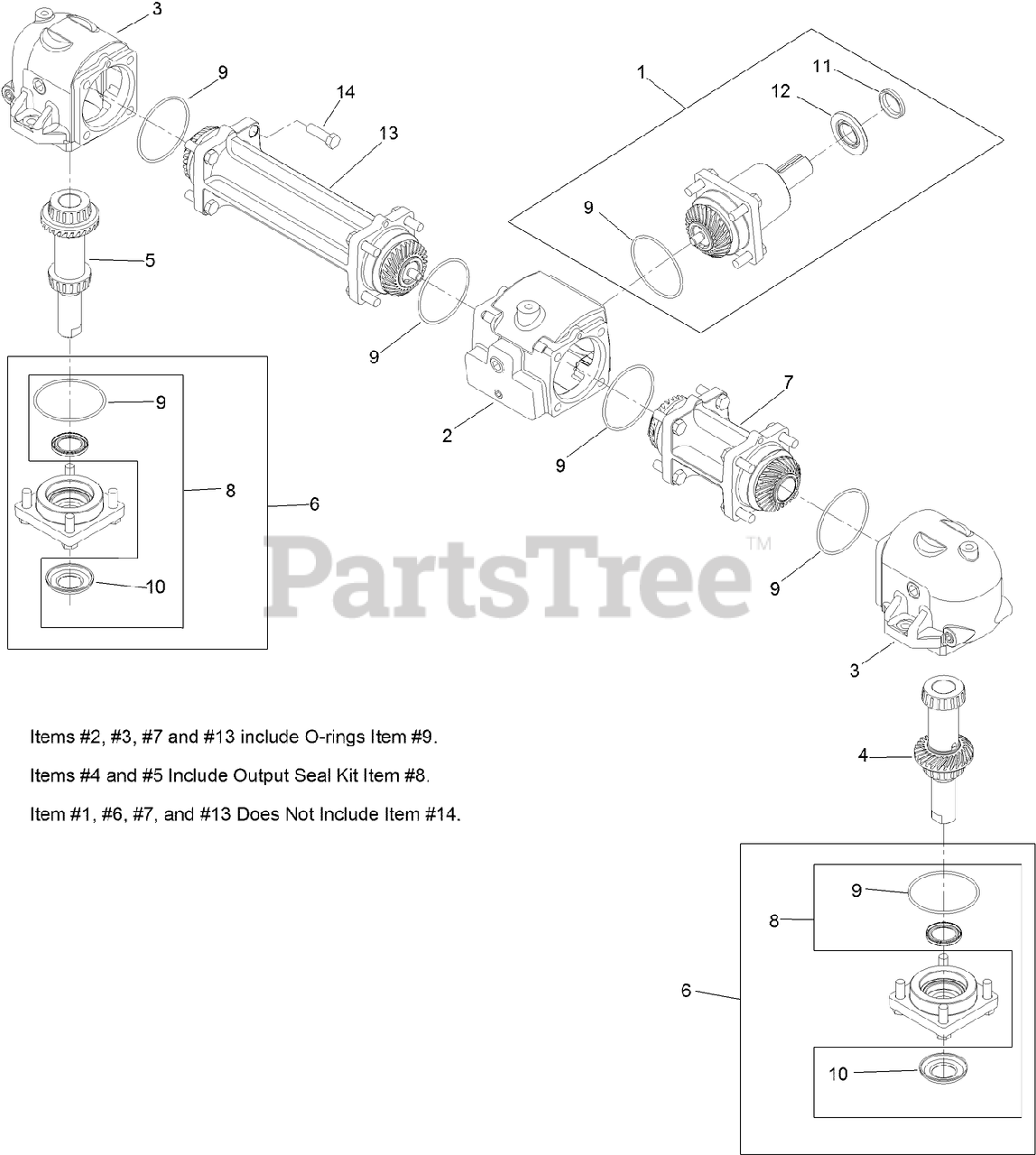

GEARBOX ASSEMBLY NO. 103-3387 Parts Diagram

  • Title

1

Toro 109-0189

PINION-INPUT

$437.99

$

Usually ships in 3-6 days

0

2

Toro 109-0190

HOUSING-CENTER

$391.99

$

Usually ships in 3-6 days

0

3

Toro 109-0191

HOUSING-END

$305.99

$

Usually ships in 3-6 days

0

4

Toro 109-0193

OUTPUT SHAFT AND GEAR-LH

$386.99

$

Usually ships in 3-6 days

0

5

Toro 109-0195

OUTPUT SHAFT AND GEAR-RH

$492.99

$

Usually ships in 3-6 days

0

6

Toro 109-0196

CAP-OUTPUT

$170.99

$

Usually ships in 3-6 days

0

7

Toro 109-0198

TUBE-CONNECTOR, SHOR

$681.99

$

Usually ships in 3-6 days

0

8

Toro 109-0201

OUTPUT SEAL KIT

$33.99

$

Usually ships in 3-6 days

0

9

Toro 109-0203

SEAL-O-RING

$12.99

$

In Stock, Qty 9

0

10

Toro 109-0204

WASHER-CUPPED

$15.99

$

Usually ships in 3-6 days

0

11

Toro 109-0205

SEAL-V-RING

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$15.99

$

In Stock, only 1 left!

0

12

Toro 109-0202

SEAL-INPUT

Note: Apply bead of Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between input seal and v-ring.

$59.99

$

Usually ships in 3-6 days

0

13

Toro 109-0200

CONNECTOR-TUBE, LONG

$747.99

$

Usually ships in 3-6 days

0

14

Toro 93-3987

BOLT-BLADE
(Superseded to AU328-620)

$0.99

$

In Stock, only 1 left!

0
