74310 (8000) - Toro 42" Z Master Zero-Turn Mower (SN: 314000001 - 314999999) (2014) DRIVE ASSEMBLY Parts Diagram

42" Z Master Zero-Turn Mower

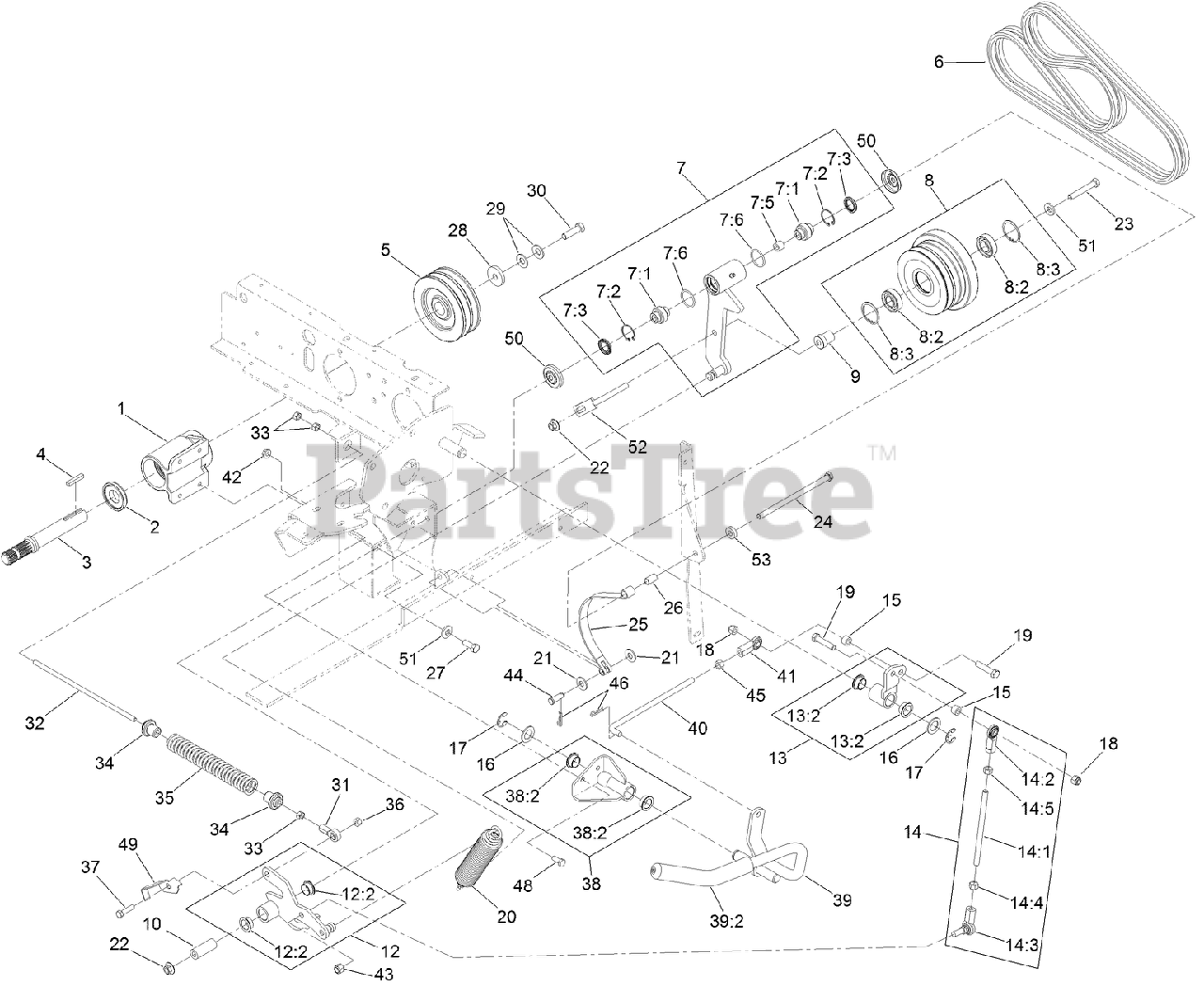

DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 103-2544

JACKSHAFT ASM
(Superseded to 114-0250)

$343.99

$

Usually ships in 3-6 days

0

2

Toro 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

3

Toro 103-6735

JACKSHAFT

$194.99

$

Usually ships in 3-6 days

0

4

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 11

0

5

Toro 103-6732

SHEAVE

$196.99

$

Usually ships in 3-6 days

0

6

Toro 130-2870

BELTS-PAIR, MATCHED

$151.99

$

In Stock, Qty 15

0

7

Toro 103-8253

IDLER PIVOT ASM

$231.99

$

Usually ships in 3-6 days

0

7:1

Toro 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

7:2

Toro 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

7:3

Toro 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

7:5

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

7:6

Toro 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

8

Toro 103-9439

IDLER SHEAVE ASM

$365.99

$

Usually ships in 3-6 days

0

8:2

Toro 251-347

BEARING-BALL

$10.99

$

In Stock, only 4 left!

0

8:3

Toro 32151-13

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

9

Toro 103-7350

SPACER-IDLER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 103-7382

BUSHING

$19.99

$

In Stock, only 1 left!

0

12

Toro 103-9296

ARM ASM

$149.99

$

Usually ships in 3-6 days

0

12:2

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

13

Toro 103-9297

ARM ASM

$116.99

$

Usually ships in 3-6 days

0

13:2

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

14

Toro 103-7392

CLUTCH LINK ASM

$127.99

$

Usually ships in 3-6 days

0

14:1

Toro 103-7393

ROD-LINKAGE

$13.99

$

Usually ships in 3-6 days

0

14:2

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

14:3

Toro 103-7994

BALLJOINT-RH

$42.99

$

Usually ships in 3-6 days

0

14:4

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

14:5

Toro 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

15

Toro 92-9025

SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 1-303007

WASHER

$5.49

$

In Stock, Qty 13

0

17

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 109-0148

SPRING-EXTENSION
(Superseded to 114-4430)

$47.99

$

In Stock, only 1 left!

0

21

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

22

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

24

Toro 323-36

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

25

Toro 103-7697

BAND-BRAKE

$87.99

$

In Stock, only 1 left!

0

26

Toro 103-9816

SPACER

$8.99

$

Usually ships in 3-6 days

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

29

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

30

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

31

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

32

Toro 103-7996

LINKAGE-ROD, PTO BRAKE

$21.99

$

Usually ships in 3-6 days

0

33

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

34

Toro 103-8254

BUSHING-SPRING

$6.99

$

Usually ships in 3-6 days

0

35

Toro 103-7997

SPRING-BRAKE

$44.99

$

Usually ships in 3-6 days

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

37

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

38

Toro 103-9295

PIVOT ASM

$124.99

$

Usually ships in 3-6 days

0

38:2

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

39

Toro 103-9486

PTO HANDLE ASM

$245.99

$

Usually ships in 3-6 days

0

39:2

Toro 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

40

Toro 103-8277

LINK-HANDLE

$33.99

$

Usually ships in 3-6 days

0

41

Toro 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

42

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

44

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

45

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

46

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

48

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 103-8716-03

SWITCH-FLAG

$12.99

$

Usually ships in 3-6 days

0

50

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

51

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

52

Toro 109-5491

GUIDE-BELT

$25.99

$

Usually ships in 3-6 days

0

53

Toro 5-0652

SPACER

$7.49

$

In Stock, Qty 5
