74301 (Z 380) - Toro 38" TimeCutter Zero-Turn Mower (SN: 250000001 - 250999999) (2005) STYLING ASSEMBLY Parts Diagram

38" TimeCutter Zero-Turn Mower

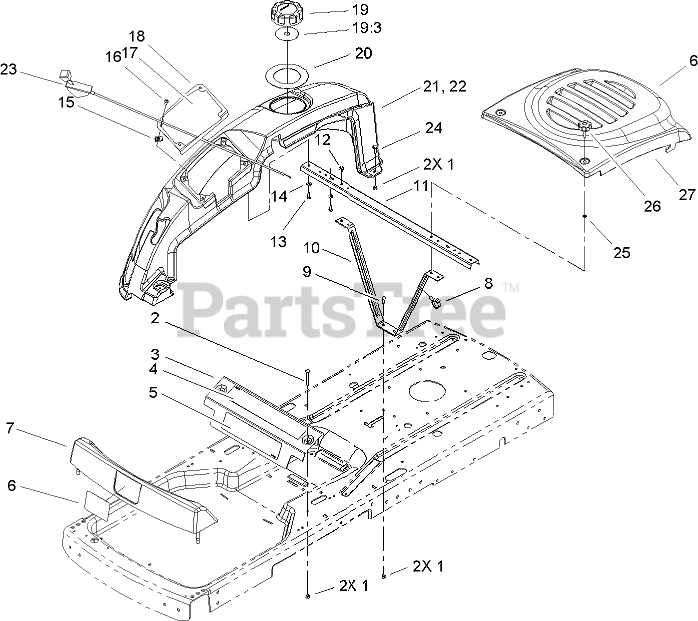

STYLING ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Toro 3229-7

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

3

Toro 106-2164-03

BRACKET-SUPPORT, FRONT

$

$

Not available

4

Toro 107-7398

DECAL-DANGER

$

$

Not available

5

Toro 108-7127

DECAL

$17.99

$

In Stock, only 1 left!

0

6

Toro 105-6971

DECAL

$7.99

$

Usually ships in 3-6 days

0

7

Toro 105-6965

FOOTREST ASM

$

$

Not available

8

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 106-6994-03

BRACE ASM

$

$

Not available

11

Toro 108-2313-03

CHANNEL-CROSS

$

$

Not available

12

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

17

Toro 106-2224

DECAL-CONTROL

$31.99

$

Usually ships in 3-6 days

0

18

Toro 106-2167-03

PANEL-CONTROL

$21.99

$

Usually ships in 3-6 days

0

19

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

19:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 1 left!

0

20

Toro 106-7042

SEAL-RUBBER

$9.49

$

Usually ships in 3-6 days

0

21

Toro 106-2161

COVER-SIDE, RH

$304.99

$

Usually ships in 3-6 days

0

22

Toro 106-2162

COVER-SIDE, LH

Note: Not illustrated

$

$

Not available

23

Toro 104-3626

CABLE-THROTTLE

$56.99

$

In Stock, only 2 left!

0

24

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

25

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

26

Toro 106-7017

KNOB

$18.99

$

In Stock, only 3 left!

0

27

Toro 106-2163

COVER-HOOD

$

$

Not available
