74301 (14-38 Z) - Toro 38" TimeCutter Zero-Turn Mower (SN: 240000001 - 240000893) (2004) RH HYDROSTAT ASSEMBLY PART NO. 107-2466 Parts Diagram

38" TimeCutter Zero-Turn Mower

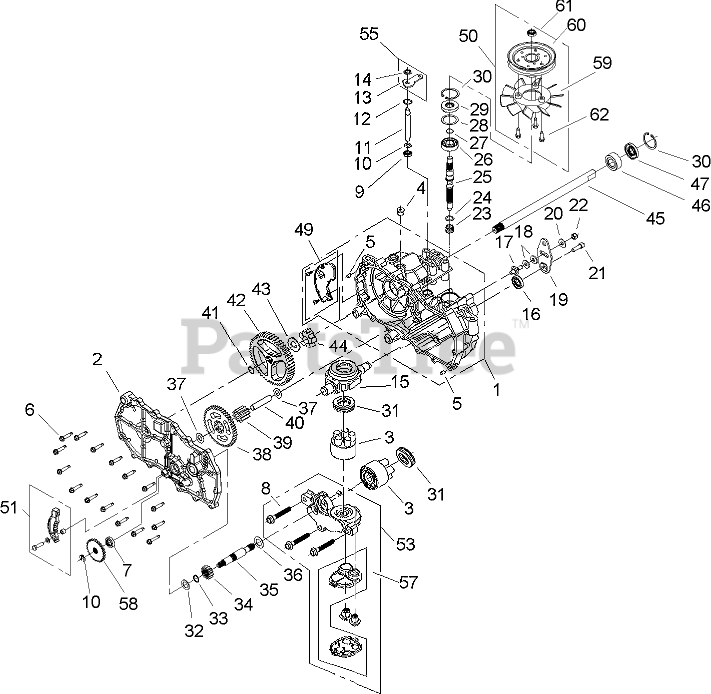

RH HYDROSTAT ASSEMBLY PART NO. 107-2466 Parts Diagram

  • Title
1

Toro 106-8674

MAIN HOUSING ASM

$858.99

$

Usually ships in 3-6 days

0

2

Toro 106-8675

SIDE ASM

$678.99

$

Usually ships in 3-6 days

0

3

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$546.99

$

Usually ships in 3-6 days

0

4

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

5

Toro 9004800-2506

PIN-HYDROGEAR
(Superseded to 104-2170)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

7

Toro 104-5347

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

8

$10.99

$

Usually ships in 3-6 days

0

9

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

Usually ships in 3-6 days

0

10

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

11

Toro 106-8678

ROD-BYPASS

$55.99

$

Usually ships in 3-6 days

0

12

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

13

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

14

Toro 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

15

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

16

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

17

$38.99

$

Usually ships in 3-6 days

0

18

Toro 105-1873

PUCK-FRICTION

$8.99

$

In Stock, only 2 left!

0

19

Toro 106-8747

ARM-CONTROL

$37.99

$

Usually ships in 3-6 days

0

20

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

21

$13.99

$

In Stock, only 1 left!

0

22

$13.99

$

Usually ships in 3-6 days

0

23

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

24

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

25

Toro 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

26

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

27

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

28

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

29

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

30

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

31

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

32

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

33

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

34

Toro 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

35

Toro 106-8683

SHAFT-MOTOR

$286.99

$

Usually ships in 3-6 days

0

36

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

37

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

38

Toro 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

39

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

40

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

41

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

42

Toro 106-8684

GEAR-BULL, 52T

$

$

Not available

43

Toro 94-1943

WASHER

$6.99

$

Usually ships in 3-6 days

0

44

Toro 104-5320

BEARING-SLEEVE

$38.99

$

Usually ships in 3-6 days

0

45

Toro 106-8685

AXLE
(Superseded to 115-5039)

$539.99

$

Usually ships in 3-6 days

0

46

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$41.99

$

Usually ships in 3-6 days

0

47

Toro 104-5322

SEAL-LIP

$37.99

$

Usually ships in 3-6 days

0

48

Toro 106-8686

SEAL KIT

Note: Not illustrated

$195.99

$

Usually ships in 3-6 days

0

49

Toro 106-8687

EXPANSION PLATE KIT

$71.99

$

Usually ships in 3-6 days

0

50

Toro 105-1928

FAN PULLEY KIT
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

51

Toro 106-8688

BRAKE ARM KIT

$41.99

$

In Stock, Qty 20+

0

53

Toro 106-8690

LH CENTER SECTION FILTER KIT

$942.99

$

Usually ships in 3-6 days

0

54

Toro 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

55

Toro 107-2489

BYPASS ARM KIT

$83.99

$

Usually ships in 3-6 days

0

57

Toro 106-8693

FILTER KIT

$

$

Not available

58

Toro 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, Qty 5

0

59

Toro 105-1927

FAN
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

60

Toro 105-1896

PULLEY
(Superseded to 121-5729)

$116.99

$

In Stock, only 1 left!

0

61

Toro 105-1875

NUT-LOCK

$7.99

$

Usually ships in 3-6 days

0

62

$7.99

$

In Stock, only 1 left!

0
