74297 (Z 500) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

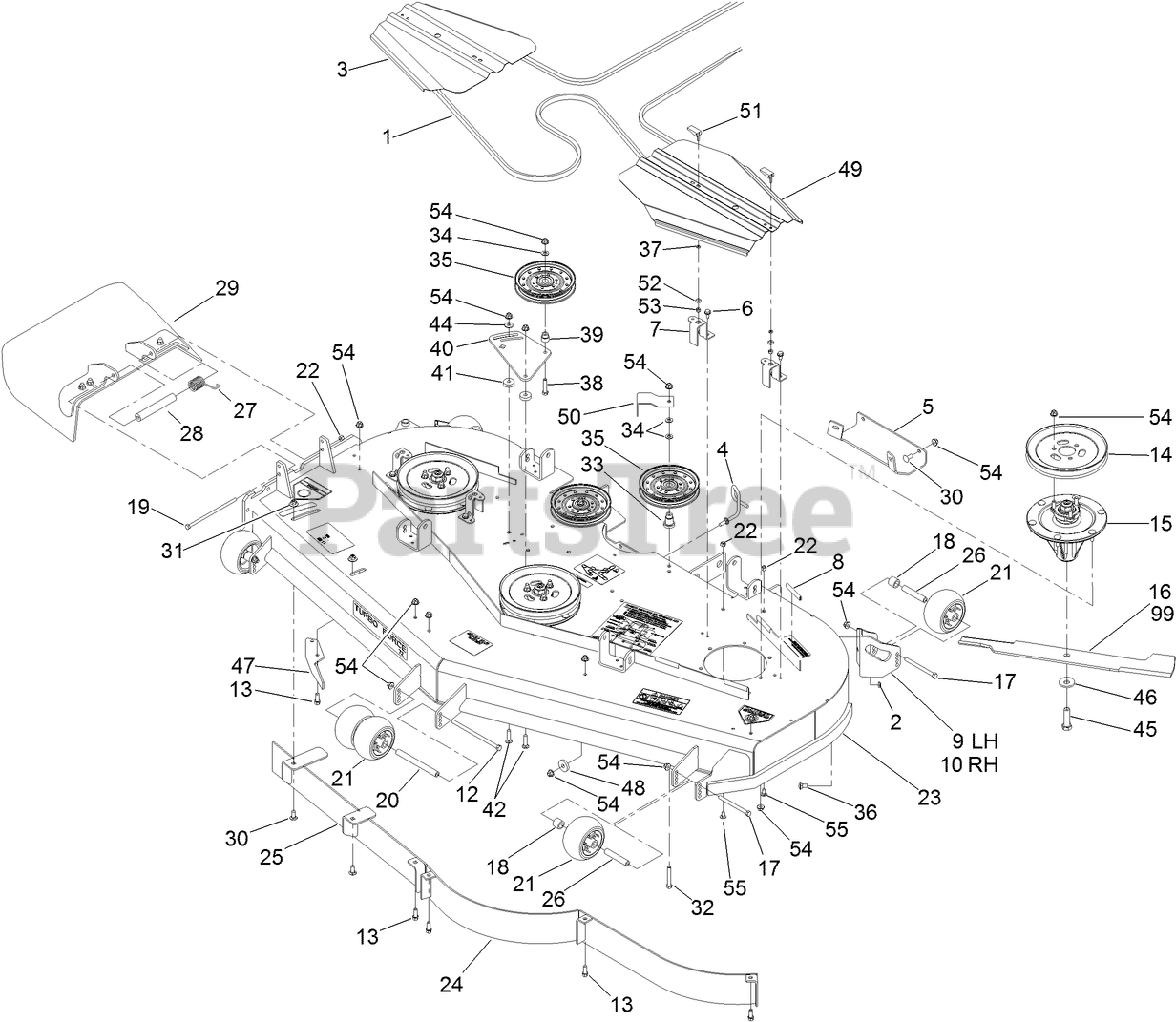

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 106-7350

Belt

$239.99

$

In Stock, only 1 left!

0

2

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

3

Toro 112-8667-03

COVER-BELT, RH

$162.99

$

In Stock, only 3 left!

0

4

Toro 106-3220

GUIDE-BELT

$

$

Not available

5

Toro 106-3279-01

Plate-Skid

$103.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 119-4220-01

BRACKET-COVER

$12.99

$

In Stock, Qty 6

0

8

Toro 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

9

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

10

Toro 106-7355-01

MOUNT-WHEEL, RH

$107.99

$

Usually ships in 3-6 days

0

12

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-7733

Pulley

$72.99

$

In Stock, only 1 left!

0

15

Toro 119-8560

SPINDLE ASM

$581.99

$

In Stock, Qty 11

0

16

Toro 105-7784-03

BLADE-HI FLOW, 24.5 INCH

$45.99

$

In Stock, Qty 20+

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 119-4216

DECK DECAL ASM

$4117.99

$

Usually ships in 3-6 days

0

24

Toro 105-7730-01

BAFFLE

$177.99

$

Usually ships in 3-6 days

0

25

Toro 115-7465-01

BAFFLE

$163.99

$

Usually ships in 3-6 days

0

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

27

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 108-7770

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 3 left!

0

30

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

31

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

32

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

36

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

40

Toro 105-7787-01

Plate-Idler

$47.99

$

In Stock, only 1 left!

0

41

Toro 105-7788

Spacer

$9.49

$

In Stock, only 2 left!

0

42

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

44

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

45

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

46

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

47

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

48

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

49

Toro 112-8666-03

COVER-BELT, LH

$162.99

$

In Stock, only 1 left!

0

50

Toro 108-7220-01

GUIDE-BELT

$41.99

$

In Stock, only 2 left!

0

51

Toro 106-6777

HANDLE-LATCH, SWELL

$26.99

$

In Stock, Qty 9

0

52

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

53

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

54

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

55

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

99

Toro 105-7711-03

BLADE-MID FLOW, 24.5IN

Note: Optional Equipment

$41.99

$

Usually ships in 3-6 days

0

99

Toro 105-7712-03

BLADE-LO FLOW, 24.5IN

Note: Optional Equipment

$41.99

$

Usually ships in 3-6 days

0

99

Toro 105-7719-03

BLADE-ATOMIC, 24.5IN

Note: Optional Equipment

$52.99

$

In Stock, only 4 left!

0

99

Toro 105-7778-03

BLADE-RECYCLER, 24.5IN

Note: Optional Equipment

$42.99

$

Usually ships in 3-6 days

0
