74295 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) FRONT FRAME ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

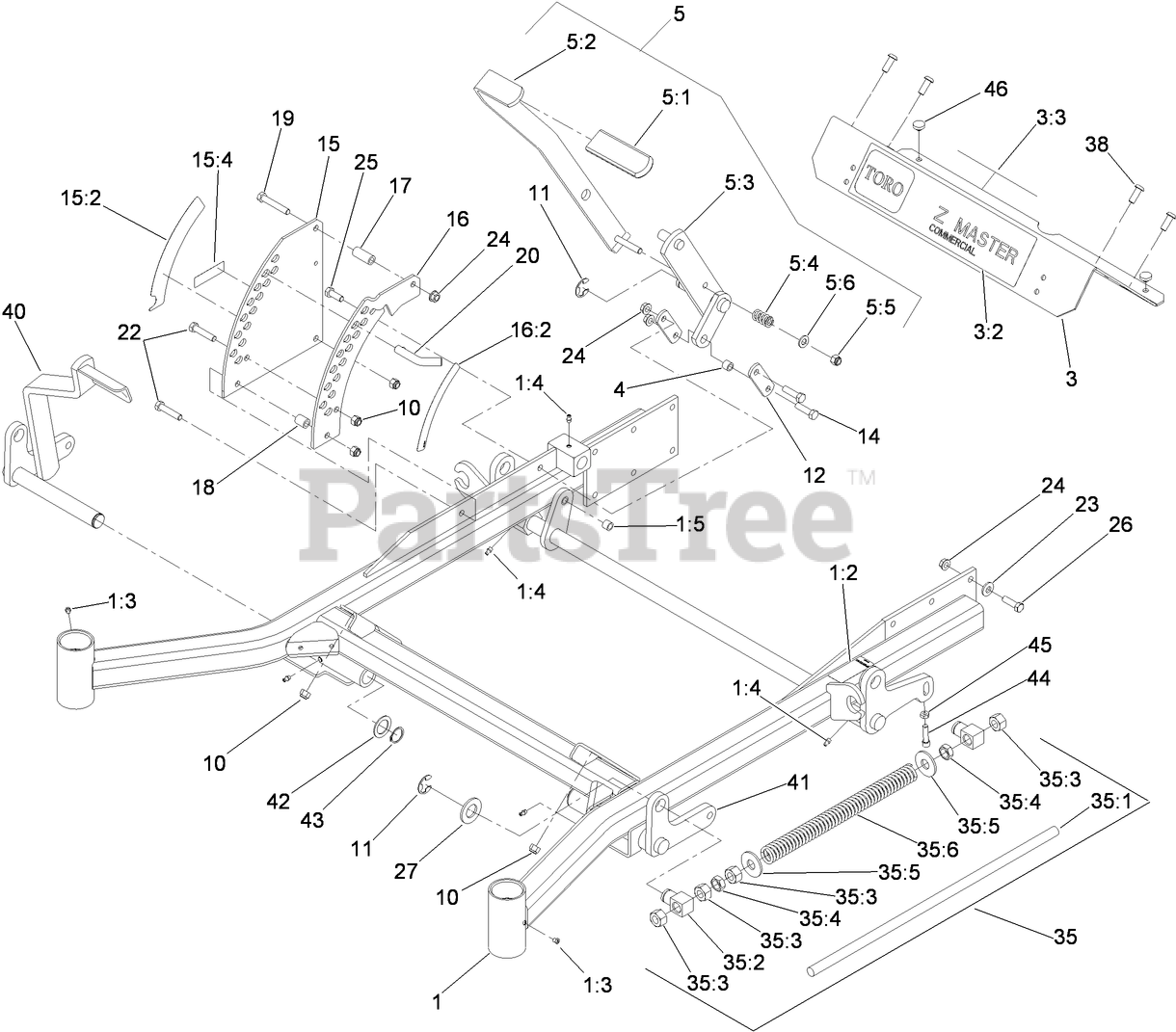

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 106-8978

Frame ASM

$1867.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-1857

Decal-Brake, Parking

$7.49

$

Usually ships in 3-6 days

0

1:3

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

1:5

Toro 103-1918

Bushing

$8.49

$

In Stock, Qty 6

0

3

Toro 106-9981

FOOTREST

$227.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-7451

DECAL

$33.99

$

In Stock, only 2 left!

0

3:3

Toro 107-2112

DECAL-WARNING

$21.99

$

In Stock, only 2 left!

0

4

Toro 103-1918

Bushing

$8.49

$

In Stock, Qty 6

0

5

Toro 110-5860

DECK LIFT HANDLE ASM

$117.99

$

Usually ships in 3-6 days

0

5:1

Toro 1-633295

GRIP-LEVER, LIFT

$8.49

$

In Stock, Qty 12

0

5:2

Toro 103-2083

LEVER-LIFT
(Superseded to 103-2084)

$82.99

$

Usually ships in 3-6 days

0

5:3

Toro 103-2064

ARM-LIFT, DECK
(Superseded to 103-2064-03)

$80.99

$

Usually ships in 3-6 days

0

5:4

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

5:5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5:6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Toro 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

14

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 14

0

15

Toro 117-0366

PLATE-HOC, OUTER

$111.99

$

Usually ships in 3-6 days

0

15:2

Toro 107-1860

Decal-Height, Deck

$12.99

$

In Stock, only 2 left!

0

15:4

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

0

16

Toro 117-0369

PLATE-HOC, INNER

$90.99

$

Usually ships in 3-6 days

0

16:2

Toro 107-1861

Decal-Height, Deck

$10.99

$

In Stock, only 2 left!

0

17

Toro 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 2 left!

0

18

Toro 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

19

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

20

Toro 109-8757

PIN-HOC

$9.49

$

In Stock, Qty 9

0

22

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

35

FRONT FRAME SPRING ASM

Note: Not serviced separately

$

$

Not available

35:1

Toro 1-633096

ROD-LIFT, DECK

$25.99

$

In Stock, Qty 6

0

35:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$28.99

$

Usually ships in 3-6 days

0

35:3

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

35:4

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 19

0

35:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35:6

Toro 1-633064

SPRING-SUPPORT, DECK

$35.99

$

Usually ships in 3-6 days

0

38

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

40

Toro 108-7786-01

LIFT-DECK, RH FRONT

$181.99

$

Usually ships in 3-6 days

0

41

Toro 106-8984-01

LIFT-DECK, LH

$176.99

$

Usually ships in 3-6 days

0

42

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

43

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

44

Toro 3274-18

SCREW-HSH

$9.99

$

In Stock, Qty 7

0

45

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

46

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0
