74292 (Z 500) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CASTER AND WHEEL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

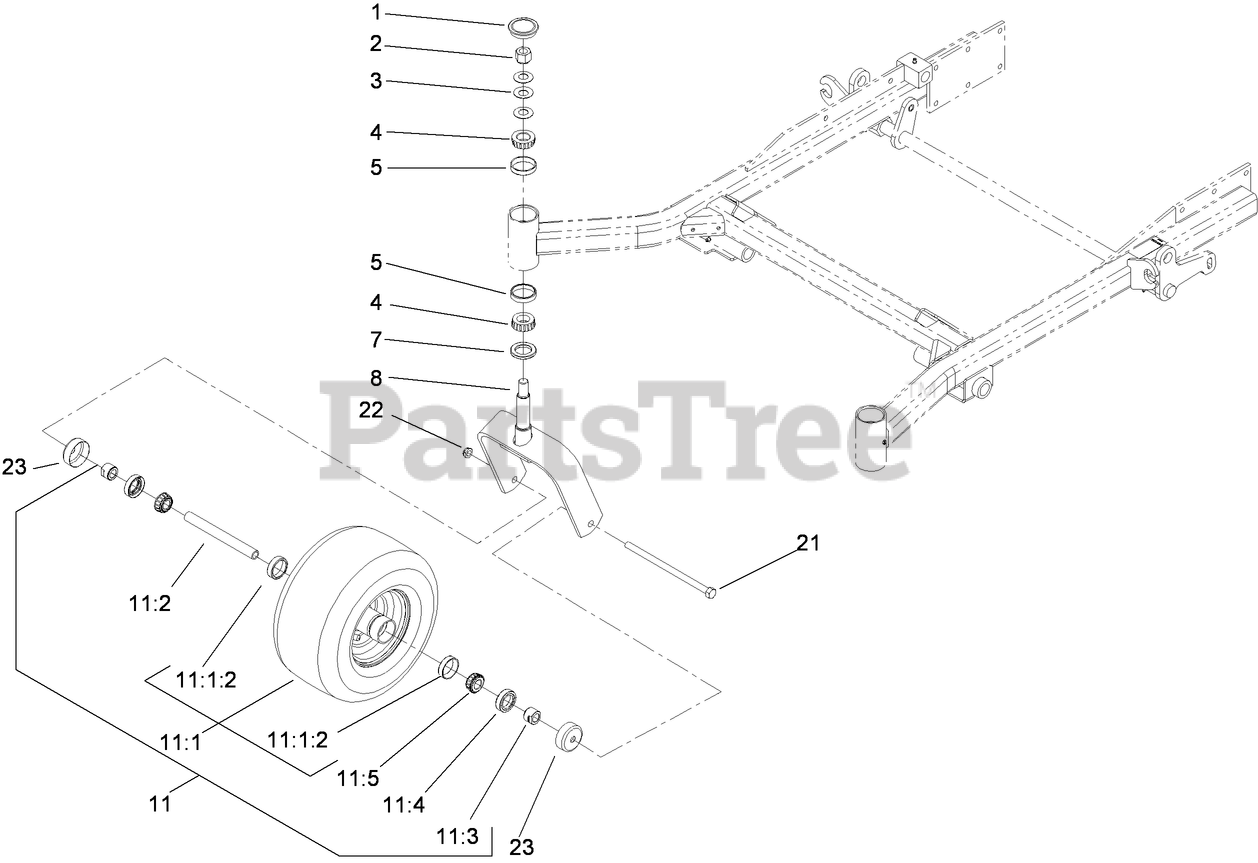

CASTER AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

2

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

3

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

5

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

8

Toro 103-1474-01

CASTER-FORK
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 20+

0

11

Toro 103-5185

WHEEL ASM

$285.99

$

Usually ships in 3-6 days

0

11:1

Toro 103-5179

WHEEL AND TIRE ASM

$

$

Not available

11:1:2

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

11:2

Toro 103-5156

Axle-Caster
(Superseded to 126-5361)

$19.99

$

In Stock, Qty 15

0

11:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

11:4

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

11:5

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

21

Toro 325-39

Screw-HH

$18.99

$

In Stock, Qty 18

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
