74291 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH740-3118 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

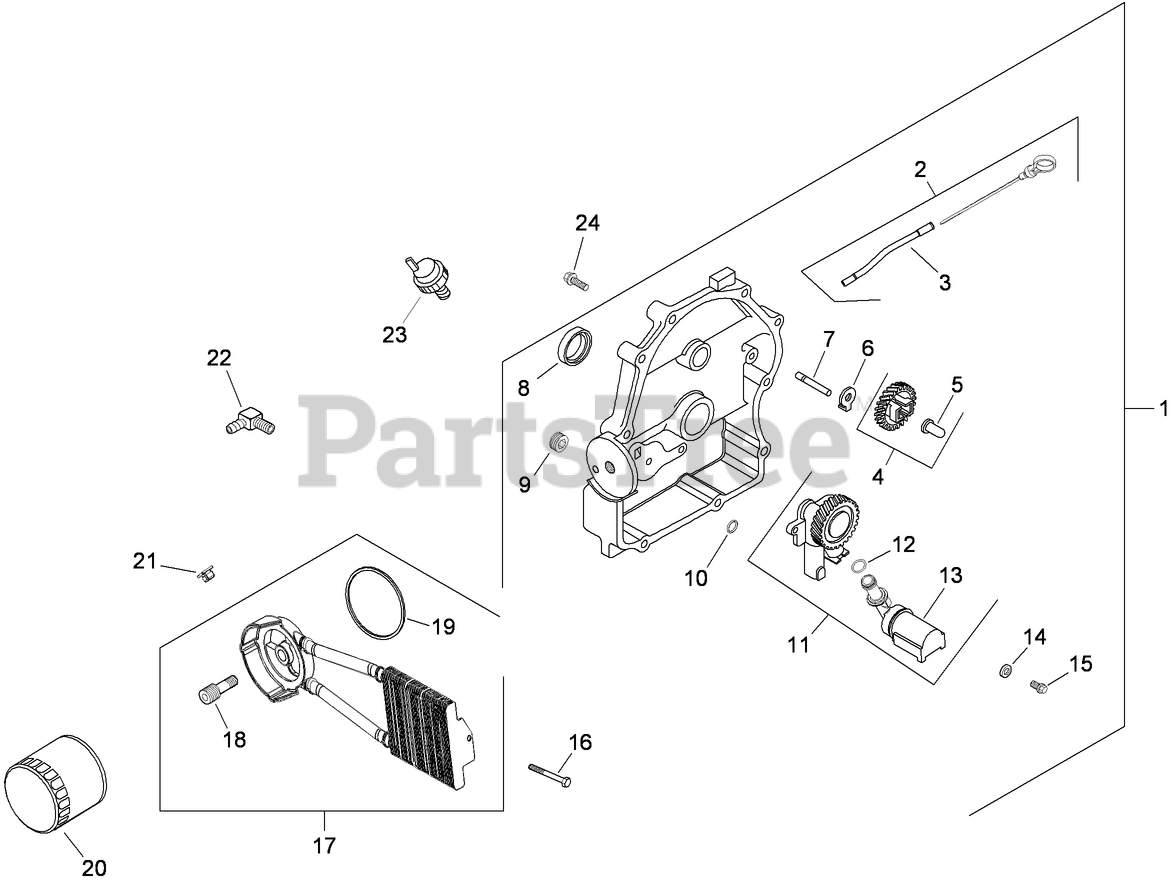

OIL PAN AND LUBRICATION ASSEMBLY KOHLER CH740-3118 Parts Diagram

  • Title

1

Kohler 24 009 167-S

CLOSURE PLATE and BEARING ASM (INCLUDES 2-15)
(Superseded to 24 009 238-S)

Note: Obtain parts from www.kohlerplus.com

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

DIPSTICK AND DIPSTICK TUBE ASM (INCLUDES 3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, Qty 6

0

3

Kohler 24 038 10-S

Dipstick

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT (INCLUDES 5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 9

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 8

0

6

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

8

Kohler 25 032 06-S

SEAL-OIL

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 15

0

9

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 2 left!

0

11

Kohler 24 393 51-S

OIL PUMP ASM (INCLUDES 12, 13)
(Superseded to 24 393 53-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

Note: Obtain parts from www.kohlerplus.com

$34.99

$

In Stock, only 1 left!

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

16

Kohler 25 086 49-S

SCREW-TAPPING
(Superseded to 24 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

17

Kohler 54 755 21-S

OIL COOLER KIT (METAL) (INCLUDES 18, 19)

Note: Obtain parts from www.kohlerplus.com

$257.99

$

Usually ships in 2-5 days

0

18

Kohler 24 136 05-S

NIPPLE-FILTER, OIL
(Superseded to 24 136 10-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

Usually ships in 2-5 days

0

19

Kohler 24 153 21-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 20+

0

20

Kohler 12 050 01-S

FILTER-OIL

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

21

Kohler 25 100 37-S

NUT-PLASTIC (BLACK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

22

Kohler 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

23

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

24

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0
