74291 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

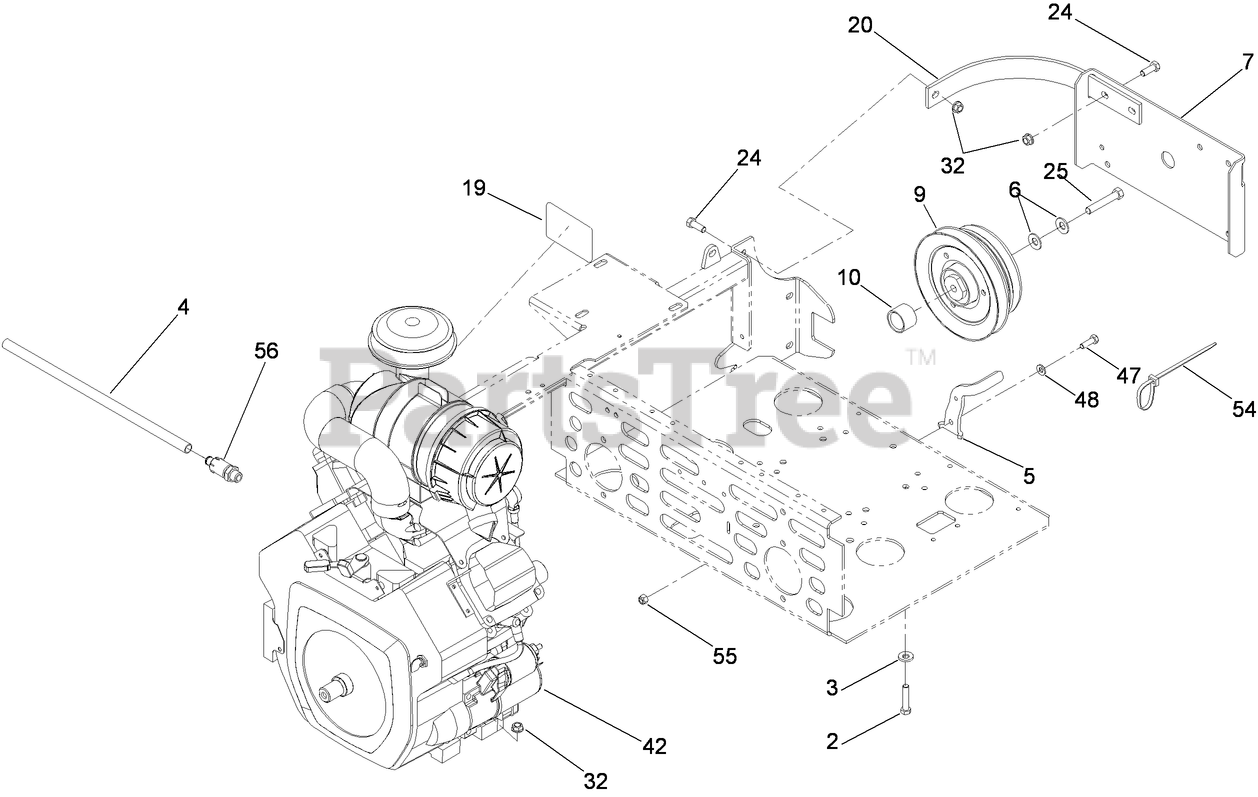

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 4 left!

0

5

Toro 109-7083-03

ANCHOR-CLUTCH

$51.99

$

In Stock, only 1 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-633615-03

GUARD-CLUTCH

$91.99

$

Usually ships in 3-6 days

0

9

Toro 103-6579

CLUTCH
(Superseded to 116-1611)

$512.99

$

In Stock, only 1 left!

0

10

Toro 1-633179

SPACER-CLUTCH

$20.99

$

In Stock, only 3 left!

0

19

Toro 103-3270

DECAL

$

$

Not available

20

Toro 103-7454-03

STRAP-GUARD

$50.99

$

Usually ships in 3-6 days

0

24

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, Qty 11

0

32

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

42

ENGINE-KOHLER, CH740-3118

Note: Not serviced separately

$

$

Not available

42

ENGINE-KOHLER, CH740-3118

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

47

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

48

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

54

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

55

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 2 left!

0
