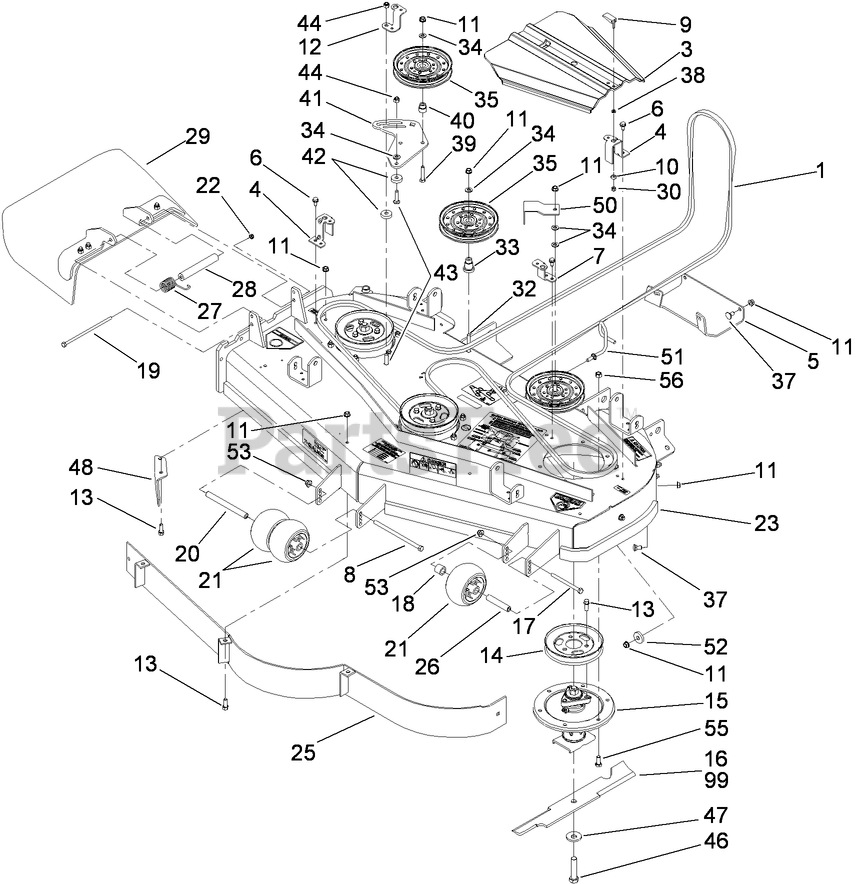

74291 (Z 500) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-7790

Belt

$193.99

$

In Stock, only 3 left!

0

3

Toro 112-8665

COVER-BELT

$39.99

$

Usually ships in 3-6 days

0

4

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

5

Toro 106-7358-01

Plate-Skid

$95.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

8

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

9

Toro 106-6777

HANDLE-LATCH, SWELL

$25.99

$

In Stock, Qty 9

0

10

Toro 106-6778

BUSHING-LATCH, SWELL

$1.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 108-2178-01

BRACKET-COVER, SHORT

$29.99

$

Usually ships in 3-6 days

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-7735

Pulley

$45.99

$

In Stock, Qty 5

0

15

Toro 107-8504

SPINDLE ASM

$410.99

$

In Stock, only 3 left!

0

16

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

22

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

23

Toro 117-3806

DECK DECAL ASM

$3618.99

$

Usually ships in 3-6 days

0

25

Toro 108-2185-01

BAFFLE ASM

$

$

Not available

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

27

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

29

Toro 108-7770

RUBBER DEFLECTOR ASM

$221.99

$

In Stock, only 3 left!

0

30

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

37

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

38

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

41

Toro 107-8516-01

PLATE-IDLER

$57.99

$

Usually ships in 3-6 days

0

42

Toro 105-7788

Spacer

$9.99

$

In Stock, only 2 left!

0

43

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

44

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 19

0

47

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 19

0

48

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

50

Toro 108-7220-01

GUIDE-BELT

$40.99

$

In Stock, only 2 left!

0

51

Toro 106-3220

GUIDE-BELT

$32.99

$

Usually ships in 3-6 days

0

52

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

53

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

55

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

56

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

99

Toro 105-7779-03

BLADE-RECYCLER

Note: Optional Equipment

$30.99

$

In Stock, Qty 8

0

99

Toro 105-7794-03

BLADE-MED FLOW

Note: Optional Equipment

$29.99

$

In Stock, Qty 9

0

99

Toro 105-7796-03

BLADE-ATOMIC

Note: Optional Equipment

$29.99

$

Usually ships in 3-6 days

0

99

Toro 105-7795-03

BLADE-LOW FLOW

Note: Optional Equipment

$29.99

$

In Stock, only 2 left!
