74281 TE (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270000300) (2007) DECK CONNECTION ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

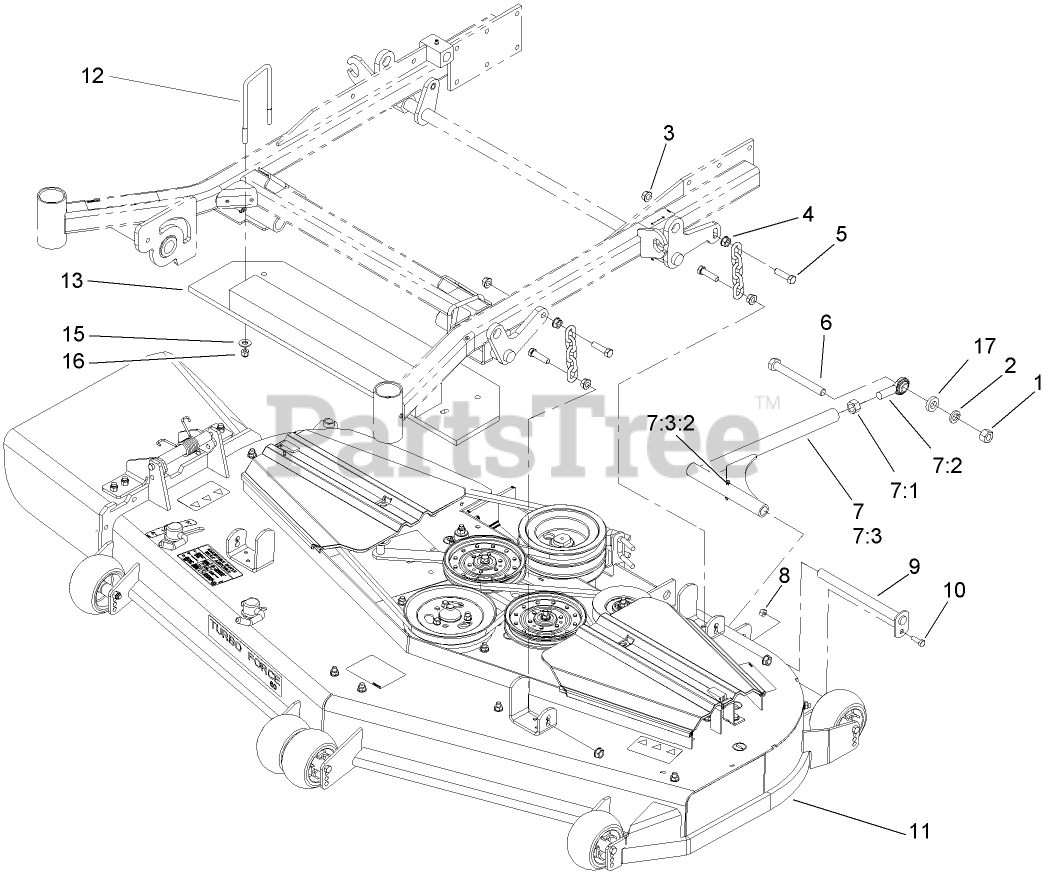

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

3

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

4

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

5

Toro 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

6

Toro 327-28

SCREW-HH

$18.99

$

In Stock, only 1 left!

0

7

Toro 103-1356

STRUT ASM

$331.99

$

In Stock, Qty 6

0

7:1

Toro 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

7:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

7:3

STRUT-DECK

Note: Not serviced separately

$

$

Not available

7:3:2

Toro 109-1380

FITTING-GREASE
(Superseded to 302-19)

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Deck ASM

Note: Not serviced separately

$

$

Not available

12

Toro 110-0817

U-BOLT, 3IN

$23.99

$

Usually ships in 3-6 days

0

13

Toro 107-9874-01

WEIGHT

$803.99

$

Usually ships in 3-6 days

0

15

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0
