74281 TE (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 260000001 - 260999999) (2006) IDLER ASSEMBLY NO. 110-5590 Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

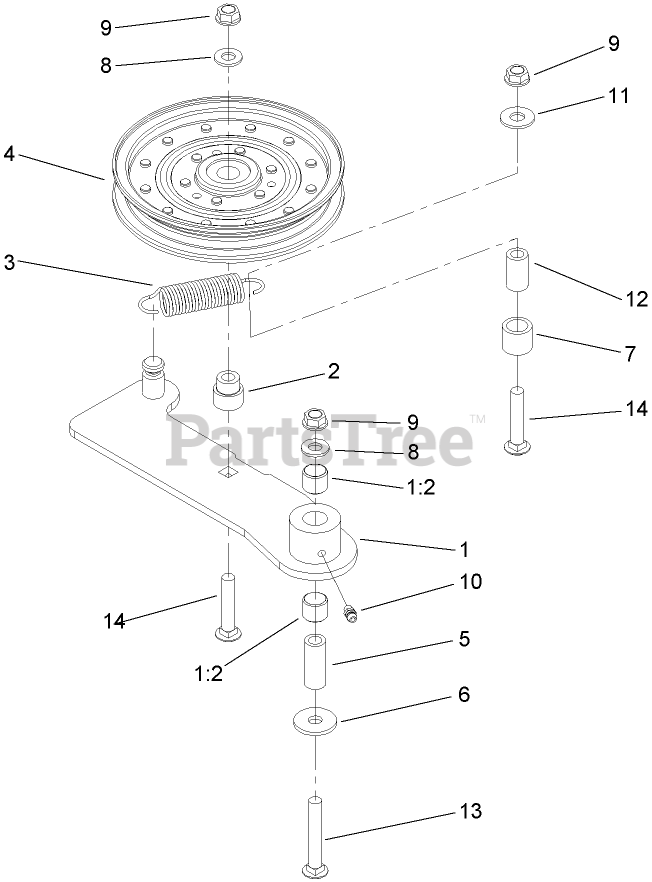

IDLER ASSEMBLY NO. 110-5590 Parts Diagram

  • Title

1

Toro 108-4062

IDLER ARM ASM

$262.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

2

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

3

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 18

0

4

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

5

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

6

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

7

Toro 108-4063

SPACER-RUBBER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

13

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

14

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0
