74281 TE (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

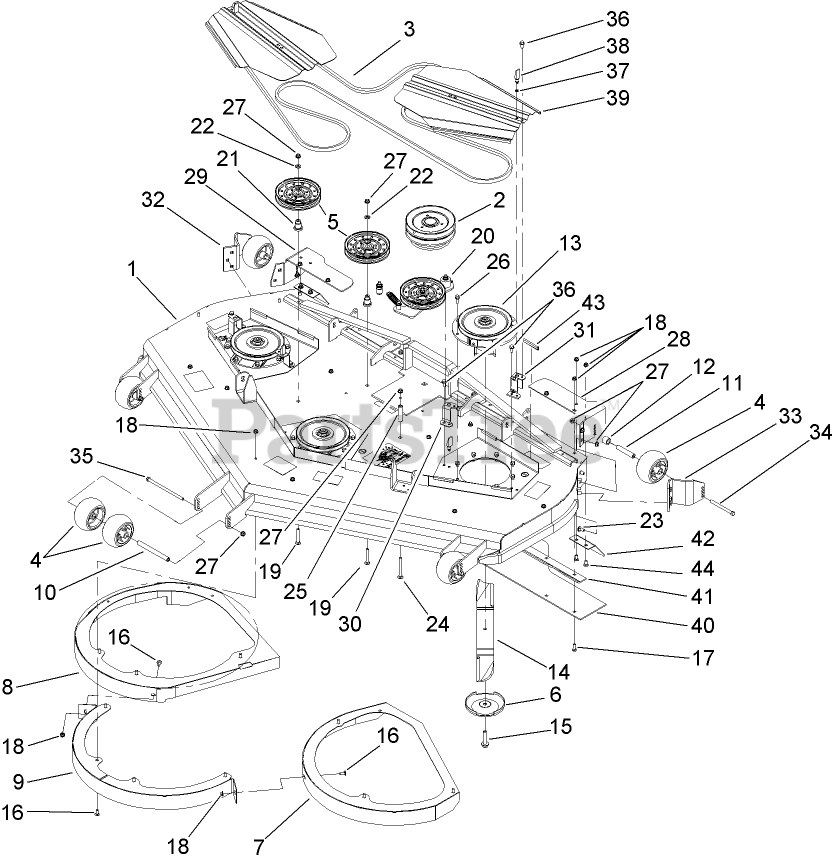

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5601

DECK DECAL ASM

$3032.99

$

Usually ships in 3-6 days

0

2

Toro 110-9927

PULLEY ASM
(Superseded to 114-0206)

$307.99

$

Usually ships in 3-6 days

0

3

Toro 108-5951

BELT-V

$145.99

$

In Stock, only 1 left!

0

4

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

5

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

6

Toro 72-9361

CUP-SCALP, ANTI

$40.99

$

Usually ships in 3-6 days

0

7

Toro 110-0609-01

LH CHAMBER ASM

$343.99

$

Usually ships in 3-6 days

0

8

Toro 110-9909-01

RH CHAMBER ASM

$

$

Not available

9

Toro 110-0612-01

CHAMBER-CENTER
(Superseded to 110-0612-0P)

$306.99

$

Usually ships in 3-6 days

0

10

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

11

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

12

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

13

Toro 104-3532

LOW DRIVEN SPINDLE ASM
(Superseded to 119-4776)

$

$

Not available

14

Toro 108-1958-03

BLADE-ROTARY
(Superseded to 121-5347-03)

$48.99

$

In Stock, Qty 6

0

15

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, only 2 left!

0

16

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

20

Toro 110-5590

IDLER ASM

$

$

Not available

21

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

25

Toro 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

26

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 108-4145-01

SHIELD-FOOT, LH

$81.99

$

Usually ships in 3-6 days

0

29

Toro 108-4146-01

SHIELD-FOOT, RH

$

$

Not available

30

Toro 105-8787-01

Bracket-Cover

$29.99

$

Usually ships in 3-6 days

0

31

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

32

Toro 108-4144-01

MOUNT-ANTI SCALP, RH

$

$

Not available

33

Toro 108-4143-01

MOUNT-ANTI SCALP, LH

$

$

Not available

34

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

35

Toro 323-28

SCREW-HH

$7.99

$

In Stock, only 1 left!

0

36

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

37

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

39

Toro 106-3275-03

COVER-BELT

$164.99

$

Usually ships in 3-6 days

0

40

Toro 108-4149

DEFLECTOR-RUBBER

$

$

Not available

41

Toro 108-4148-01

SKID SKIRT

$

$

Not available

42

Toro 110-5607-01

SHIELD-REAR

$

$

Not available

43

Toro 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

44

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
