74280 TE (Z 597-D) - Toro 62" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270999999) (2007) PULLY ASSEMBLY NO. 110-1592 Parts Diagram

62" Z Master Zero-Turn Mower, Rear-Discharge Deck

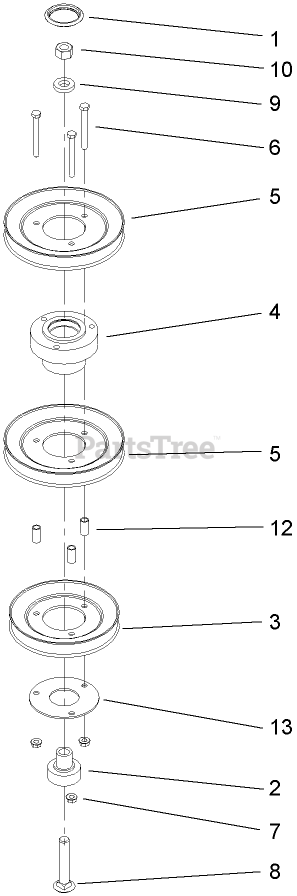

PULLY ASSEMBLY NO. 110-1592 Parts Diagram

  • Title
1

Toro 2410-30

CAP-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

2

Toro 110-1587

SPACER-FLANGED

$

$

Not available

3

Toro 110-1594

PULLEY
(Superseded to 114-0207)

$

$

Not available

4

Toro 110-1597

HUB ASM
(Superseded to 114-0207)

$

$

Not available

2

Toro 104-6325

BEARING-BALL
(Superseded to 116-0720)

$22.99

$

In Stock, Qty 20+

0

5

Toro 110-1598-03

PULLEY
(Superseded to 114-0207)

$

$

Not available

6

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 3233-33

BOLT-CARRIAGE

$

$

Not available

9

Toro 105-0842

SPACER

$18.99

$

Usually ships in 3-6 days

0

10

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

12

Toro 105-4733

SPACER-GUARD, FAN

$1.99

$

Usually ships in 3-6 days

0

13

Toro 110-9901

CLAMP-PULLEY
(Superseded to 114-0207)

$

$

Not available
