74280 TE (Z 597-D) - Toro 62" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Rear-Discharge Deck

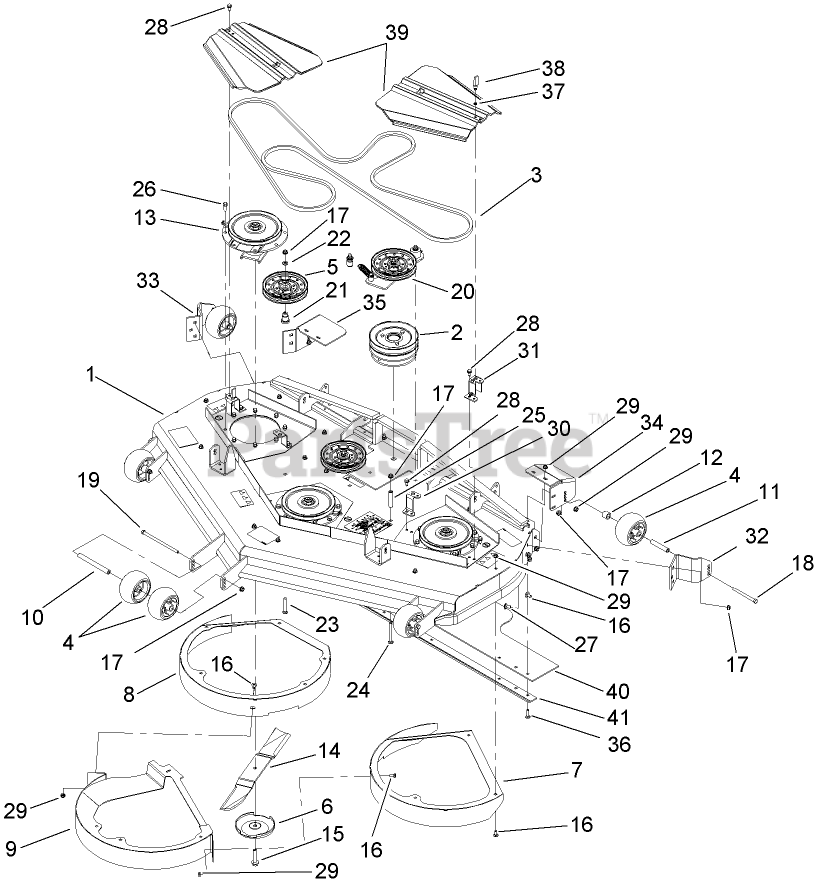

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5571

DECK DECAL ASM

$4432.99

$

Usually ships in 3-6 days

0

2

Toro 110-1592

PULLEY ASM
(Superseded to 114-0207)

$

$

Not available

3

Toro 107-7723

BELT-V

$128.99

$

In Stock, only 1 left!

0

4

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

5

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

6

Toro 72-9361

CUP-SCALP, ANTI

$42.99

$

Usually ships in 3-6 days

0

7

Toro 108-5279-01

LH CHAMBER ASM

$

$

Not available

8

Toro 108-5285-01

CHAMBER-RH

$415.99

$

Usually ships in 3-6 days

0

9

Toro 108-5282-01

CHAMBER-CENTER

$390.99

$

Usually ships in 3-6 days

0

10

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 8

0

11

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

12

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

13

Toro 104-3532

LOW DRIVEN SPINDLE ASM
(Superseded to 119-4776)

$

$

Not available

14

Toro 92-5608-03

BLADE

$53.99

$

In Stock, Qty 5

0

15

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 12

0

16

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

19

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

20

Toro 110-5590

IDLER ASM

$

$

Not available

21

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

23

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

24

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 2 left!

0

25

Toro 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

26

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

27

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

28

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 105-8787-01

Bracket-Cover

$33.99

$

Usually ships in 3-6 days

0

31

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

32

Toro 108-4139-01

MOUNT-ANTI SCALP, LH

$

$

Not available

33

Toro 108-4144-01

MOUNT-ANTI SCALP, RH

$

$

Not available

34

Toro 110-5578-01

SHIELD-FOOT, LH

$

$

Not available

35

Toro 110-5577-01

SHIELD-FOOT, RH

$

$

Not available

36

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Toro 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

39

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

40

Toro 108-4123

DEFLECTOR-RUBBER

$197.99

$

Usually ships in 3-6 days

0

41

Toro 108-4124-03

SKID-SKIRT

$

$

Not available
