74279 TE (Z 593-D) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 270000001 - 270999999) (2007) IDLE APPARATUS AND STOP SOLENOID ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

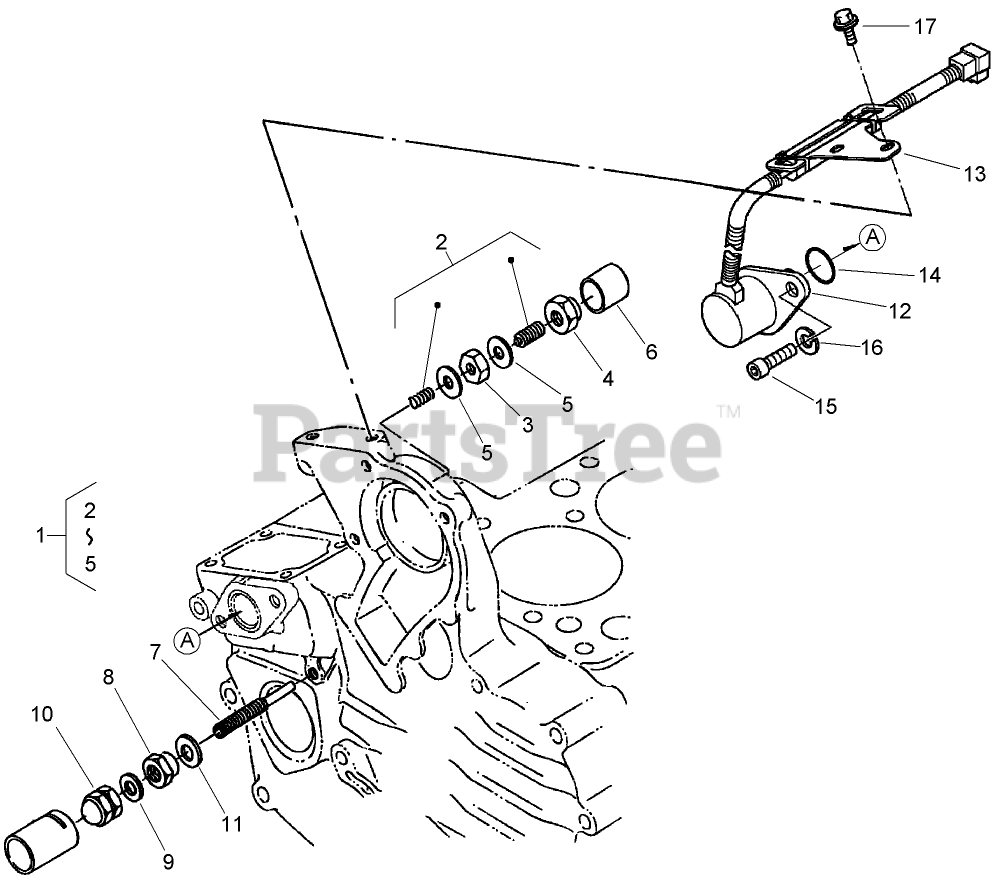

IDLE APPARATUS AND STOP SOLENOID ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1898

IDLE APPARATUS ASM

$29.99

$

Usually ships in 3-6 days

0

2

Toro 100-1899

ADJUSTING BOLT ASM

$13.99

$

Usually ships in 3-6 days

0

3

Toro 100-1846

NUT

$4.99

$

Usually ships in 3-6 days

0

4

Toro 100-1901

NUT-CAP

$8.99

$

Usually ships in 3-6 days

0

5

Toro 98-7428

GASKET

$1.49

$

Usually ships in 3-6 days

0

6

Toro 100-1902

CAP

$5.49

$

Usually ships in 3-6 days

0

7

Toro 110-3758

BOLT-ADJUSTING

$19.99

$

Usually ships in 3-6 days

0

8

Toro 100-2175

NUT-LOCK

$10.99

$

Usually ships in 3-6 days

0

9

Toro 98-7654

GASKET

$13.99

$

Usually ships in 3-6 days

0

10

Toro 98-9441

NUT-CAP
(Superseded to 99-8387)

$4.49

$

Usually ships in 3-6 days

0

11

Toro 107-9081

GASKET

$6.49

$

Usually ships in 3-6 days

0

12

Toro 110-3760

SOLENOID-STOP
(Superseded to 117-2719)

$302.99

$

In Stock, only 2 left!

0

13

Toro 110-3761

STAY-COMMANDER, COIL
(Superseded to 117-2719)

$302.99

$

In Stock, only 2 left!

0

14

Toro 110-3762

O-RING

$5.49

$

In Stock, only 4 left!

0

15

Toro 110-3763

BOLT-HSH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 98-7515

WASHER-SPRING
(Superseded to 98-7699)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 100-1774

BOLT-FLANGE

$8.49

$

Usually ships in 3-6 days

0
