74279 TE (Z 580-D) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

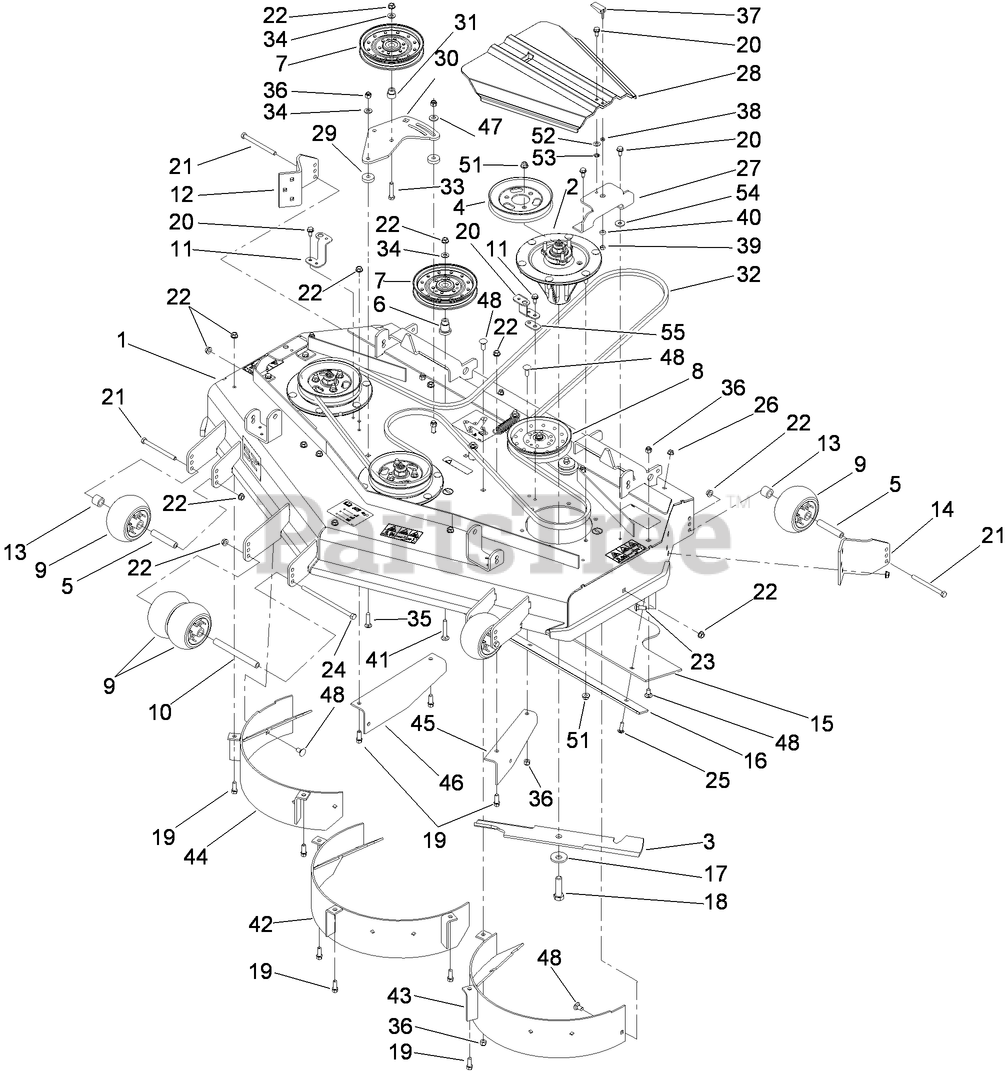

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 114-4491

DECK DECAL ASM
(Superseded to 131-7718)

$2974.99

$

Usually ships in 3-6 days

0

2

Toro 117-6159

SPINDLE ASM
(Superseded to 119-8500)

$654.99

$

Usually ships in 3-6 days

0

3

Toro 105-7781-03

BLADE-18IN, HI FLOW

$25.99

$

In Stock, Qty 20+

0

4

Toro 105-7735

Pulley

$43.99

$

In Stock, only 3 left!

0

5

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

6

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 3 left!

0

7

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

8

Toro 114-1812

SPRING IDLER ASM

$216.99

$

Usually ships in 3-6 days

0

9

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

10

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

11

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

12

Toro 112-3893-01

MOUNT-ANTI SCALP, RH

$70.99

$

Usually ships in 3-6 days

0

13

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

14

Toro 112-3895-01

MOUNT-ANTI SCALP, LH

$70.99

$

Usually ships in 3-6 days

0

15

Toro 112-3869

DEFLECTOR-RUBBER

$156.99

$

Usually ships in 3-6 days

0

16

Toro 112-3868-01

SKID-SKIRT

$104.99

$

Usually ships in 3-6 days

0

17

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

18

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

19

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 108-5388

SCREW-HH

$15.99

$

In Stock, only 2 left!

0

25

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

26

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Toro 114-1809-01

BRACKET-BELT COVER

$53.99

$

Usually ships in 3-6 days

0

28

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, Qty 8

0

29

Toro 105-7788

Spacer

$9.49

$

In Stock, Qty 10

0

30

Toro 107-8516-01

PLATE-IDLER

$59.99

$

Usually ships in 3-6 days

0

31

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

32

Toro 108-5951

BELT-V

$145.99

$

In Stock, only 1 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

36

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 106-6777

HANDLE-LATCH, SWELL

$26.99

$

In Stock, Qty 14

0

38

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

39

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

41

Toro 3231-7

SCREW-CARR

$6.99

$

In Stock, Qty 11

0

42

Toro 112-3871-01

BAFFLE-CENTER

$316.99

$

Usually ships in 3-6 days

0

43

Toro 112-3872-01

BAFFLE-LH

$241.99

$

Usually ships in 3-6 days

0

44

Toro 112-3873-01

BAFFLE-RH

$241.99

$

Usually ships in 3-6 days

0

45

Toro 112-3862-01

BAFFLE-TRAILING

$49.99

$

Usually ships in 3-6 days

0

46

Toro 112-3863-01

BAFFLE-TRAILING

$49.99

$

Usually ships in 3-6 days

0

47

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

48

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

51

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

52

Toro 73-0041

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

53

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

54

Toro 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

55

Toro 119-4222-01

SPACER-BELT COVER

$20.99

$

Usually ships in 3-6 days

0
