74279 TE (7000) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 403320852 - 404319999) Deck Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

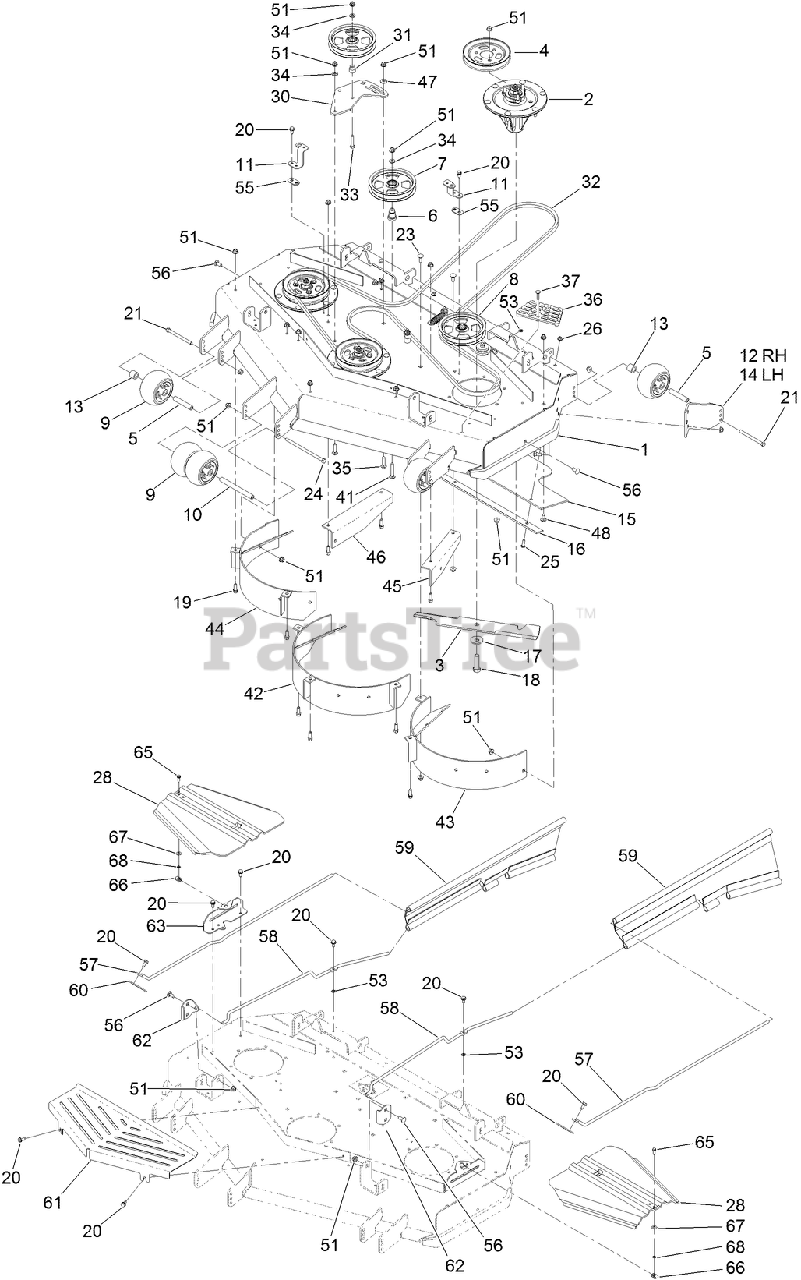

Deck Assembly Parts Diagram

  • Title
1

Toro 131-7718

DECK DECAL ASM

$2974.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$518.99

$

In Stock, only 2 left!

0

3

Toro 105-7781-03

BLADE-18IN, HI FLOW

$28.99

$

In Stock, Qty 13

0

4

Toro 105-7735

PULLEY

$43.99

$

In Stock, Qty 5

0

5

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

6

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

7

Toro 132-9424

PULLEY-IDLER, FLAT

$43.99

$

In Stock, Qty 16

0

8

Toro 114-1812

SPRING IDLER ASM

$216.99

$

Usually ships in 3-6 days

0

9

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

10

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

11

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

12

Toro 112-3893-01

MOUNT-ANTI SCALP, RH

$70.99

$

Usually ships in 3-6 days

0

13

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

14

Toro 112-3895-01

MOUNT-ANTI SCALP, LH

$70.99

$

Usually ships in 3-6 days

0

15

Toro 112-3869

DEFLECTOR-RUBBER

$156.99

$

Usually ships in 3-6 days

0

16

Toro 112-3868-01

SKID-SKIRT

$104.99

$

Usually ships in 3-6 days

0

17

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

18

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

19

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

23

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

24

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

28

Toro 107-8536

COVER-BELT

$22.99

$

In Stock, only 2 left!

0

30

Toro 107-8516-01

PLATE-IDLER

$59.99

$

Usually ships in 3-6 days

0

31

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

32

Toro 108-5951

BELT-V

$145.99

$

In Stock, only 1 left!

0

33

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

35

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

36

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

37

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Toro 323-17

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

42

Toro 112-3871-01

BAFFLE-CENTER

$316.99

$

Usually ships in 3-6 days

0

43

Toro 112-3872-01

BAFFLE-LH

$241.99

$

Usually ships in 3-6 days

0

44

Toro 112-3873-01

BAFFLE-RH

$241.99

$

Usually ships in 3-6 days

0

45

Toro 112-3862-01

BAFFLE-TRAILING

$49.99

$

Usually ships in 3-6 days

0

46

Toro 112-3863-01

BAFFLE-TRAILING

$49.99

$

Usually ships in 3-6 days

0

47

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

48

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

51

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

53

Toro 117-2749

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

55

Toro 119-4222-01

SPACER-BELT COVER

$20.99

$

Usually ships in 3-6 days

0

56

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

57

Toro 131-4004

ROD-SUPPORT, UPPER

$49.99

$

Usually ships in 3-6 days

0

58

Toro 131-7707

ROD SUPPORT, LOWER

$151.99

$

Usually ships in 3-6 days

0

59

Toro 131-7701

GUARD SIDE

$31.99

$

Usually ships in 3-6 days

0

60

Toro 131-4003-03

BRACKET-MOUNTING, UPPER ROD

$6.99

$

Usually ships in 3-6 days

0

61

Toro 131-3983-03

SHIELD-FRONT

$91.99

$

Usually ships in 3-6 days

0

62

Toro 131-4198-03

BRACKET-MOUNTING, FRONT

$23.99

$

Usually ships in 3-6 days

0

63

Toro 131-4002-03

BRACKET-SUPPORT, SPINDLE COVER

$32.99

$

Usually ships in 3-6 days

0

65

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

66

$2.99

$

In Stock, Qty 20+

0

67

Toro 73-0041

WASHER-THRUST

$1.99

$

In Stock, only 1 left!

0

68

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0
