74279 TE (7000) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 313000001 - 313999999) (2013) SPRING IDLER ASSEMBLY NO. 114-1812 Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

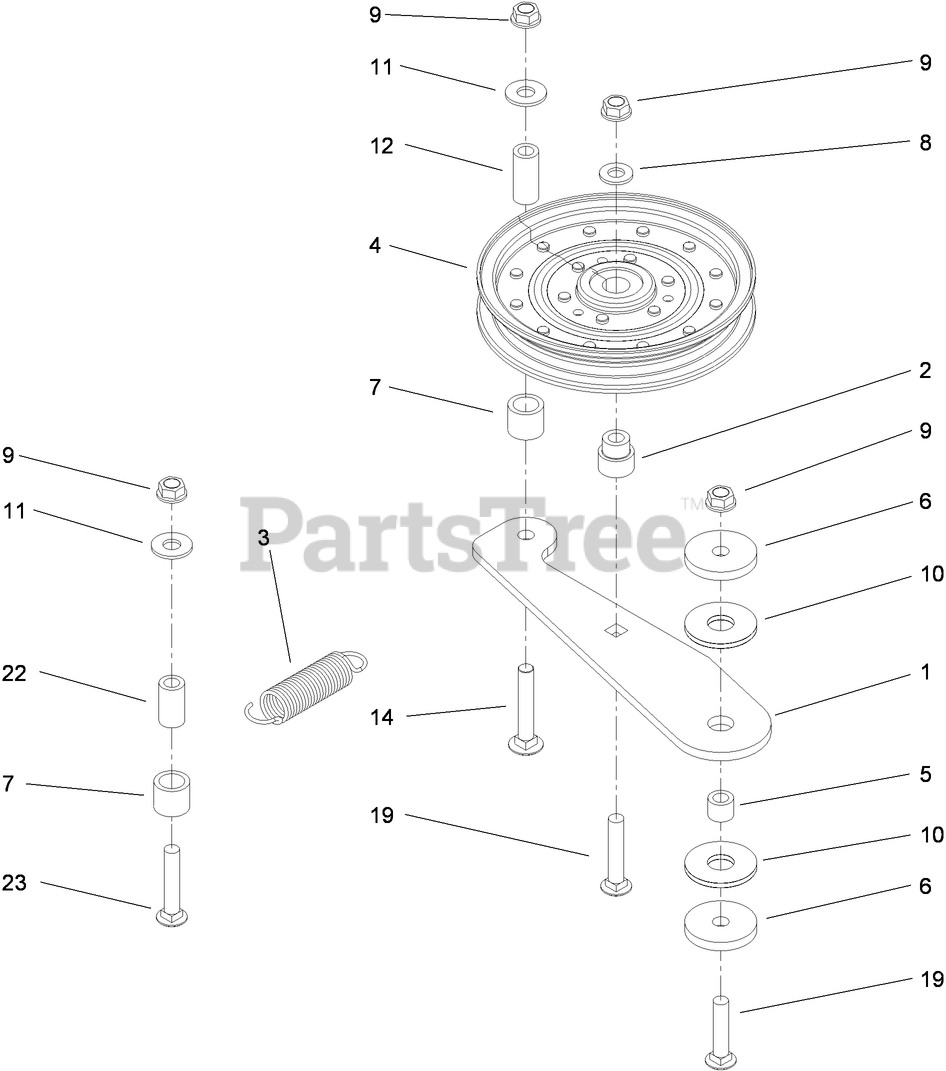

SPRING IDLER ASSEMBLY NO. 114-1812 Parts Diagram

  • Title

1

Toro 114-1815

ARM-IDLER

$88.99

$

Usually ships in 3-6 days

0

2

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

3

Toro 108-4056

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

4

Toro 116-4667

IDLER-PULLEY, FLAT
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

5

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

6

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 4 left!

0

7

Toro 108-4063

SPACER-RUBBER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 7

0

11

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-603401

SPACER

$6.99

$

In Stock, Qty 8

0

14

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

19

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

22

Toro 104-0151

SPACER

$13.99

$

In Stock, only 1 left!

0

23

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, only 3 left!

0
