74279 TE (7000) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 313000001 - 313999999) (2013) ALTERNATOR COMPONENTS ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

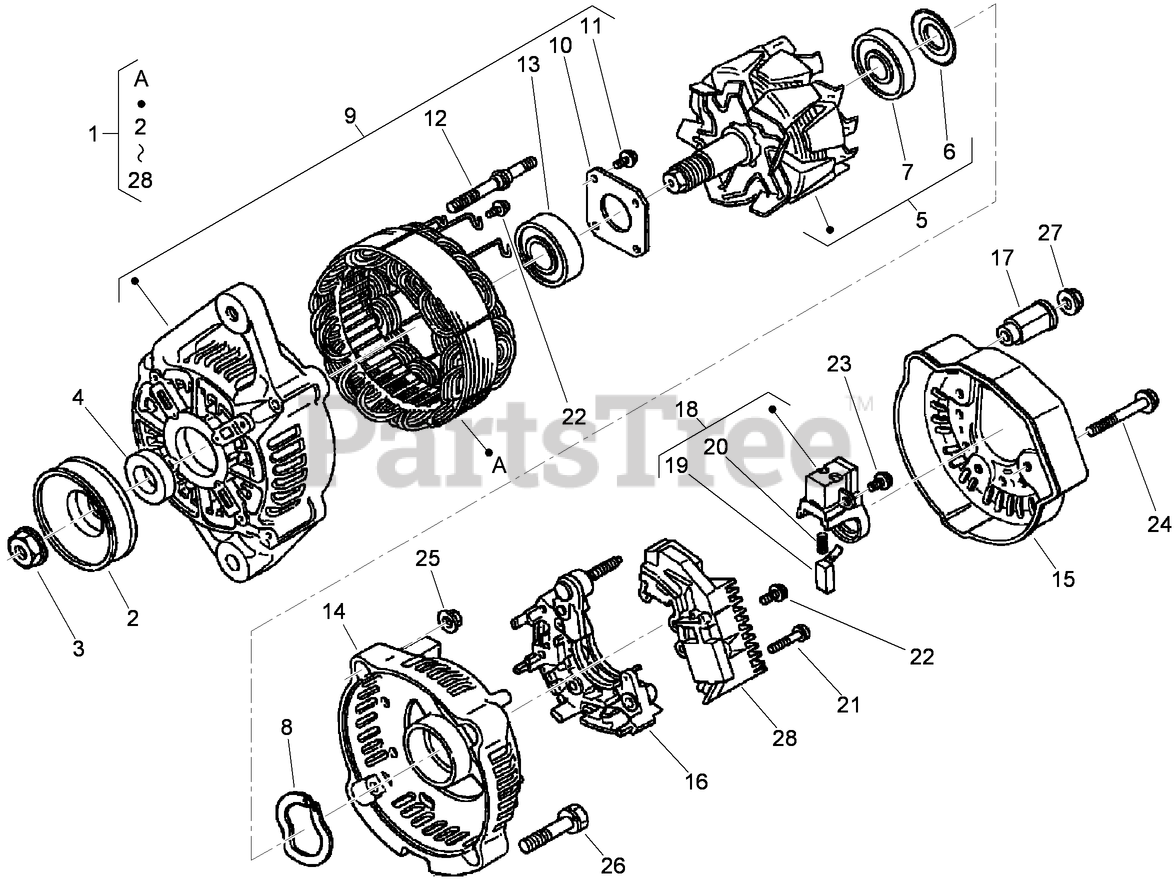

ALTERNATOR COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 98-9474

ALTERNATOR ASM
(Superseded to 131-6557)

$612.99

$

In Stock, only 1 left!

0

2

Toro 98-9453

PULLEY-DYNAMO

$190.99

$

Usually ships in 3-6 days

0

3

Toro 98-7708

NUT

$11.99

$

Usually ships in 3-6 days

0

4

Toro 98-7709

COLLAR

$11.99

$

Usually ships in 3-6 days

0

5

Toro 107-0136

Rotor ASM

$337.99

$

Usually ships in 3-6 days

0

6

Toro 98-7711

COVER-BEARING

$9.49

$

Usually ships in 3-6 days

0

7

Toro 107-0138

Bearing-Ball

$74.99

$

Usually ships in 3-6 days

0

8

Toro 98-7713

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

9

Toro 107-0139

Drive End Frame ASM

$561.99

$

Usually ships in 3-6 days

0

10

Toro 98-7715

PLATE-RETAINER

$11.99

$

Usually ships in 3-6 days

0

11

Toro 98-7716

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

12

Toro 98-7717

BOLT-THROUGH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 107-0137

Bearing-Ball
(Superseded to 133-2811)

$71.99

$

Usually ships in 3-6 days

0

14

Toro 107-9087

FRAME-END

$281.99

$

Usually ships in 3-6 days

0

15

Toro 107-0140

Cover-End

$43.99

$

Usually ships in 3-6 days

0

16

Toro 98-7721

RECTIFIER ASM

$747.99

$

Usually ships in 3-6 days

0

17

Toro 98-7722

BUSHING-INSULATION

$43.99

$

Usually ships in 3-6 days

0

18

Toro 107-0141

Brush Holder ASM

$148.99

$

Usually ships in 3-6 days

0

19

Toro 98-7724

BRUSH

$19.99

$

Usually ships in 3-6 days

0

20

Toro 98-7725

SPRING-BRUSH

$5.49

$

Usually ships in 3-6 days

0

21

Toro 98-7726

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

22

Toro 98-7727

SCREW-HEAD, ROUND

$1.49

$

Usually ships in 3-6 days

0

23

Toro 98-7728

SCREW-HEAD, ROUND

$0.99

$

Usually ships in 3-6 days

0

24

Toro 98-7729

BOLT

$3.99

$

Usually ships in 3-6 days

0

25

Toro 98-7730

NUT

$2.49

$

Usually ships in 3-6 days

0

26

Toro 98-7731

BOLT

$6.49

$

Usually ships in 3-6 days

0

27

Toro 98-7732

NUT

$2.49

$

Usually ships in 3-6 days

0

28

Toro 110-3799

REGULATOR ASM

$586.99

$

Usually ships in 3-6 days

0
