74279 TE (7000) - Toro 52" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 312000001 - 312999999) (2012) FRONT FRAME ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Rear-Discharge Deck

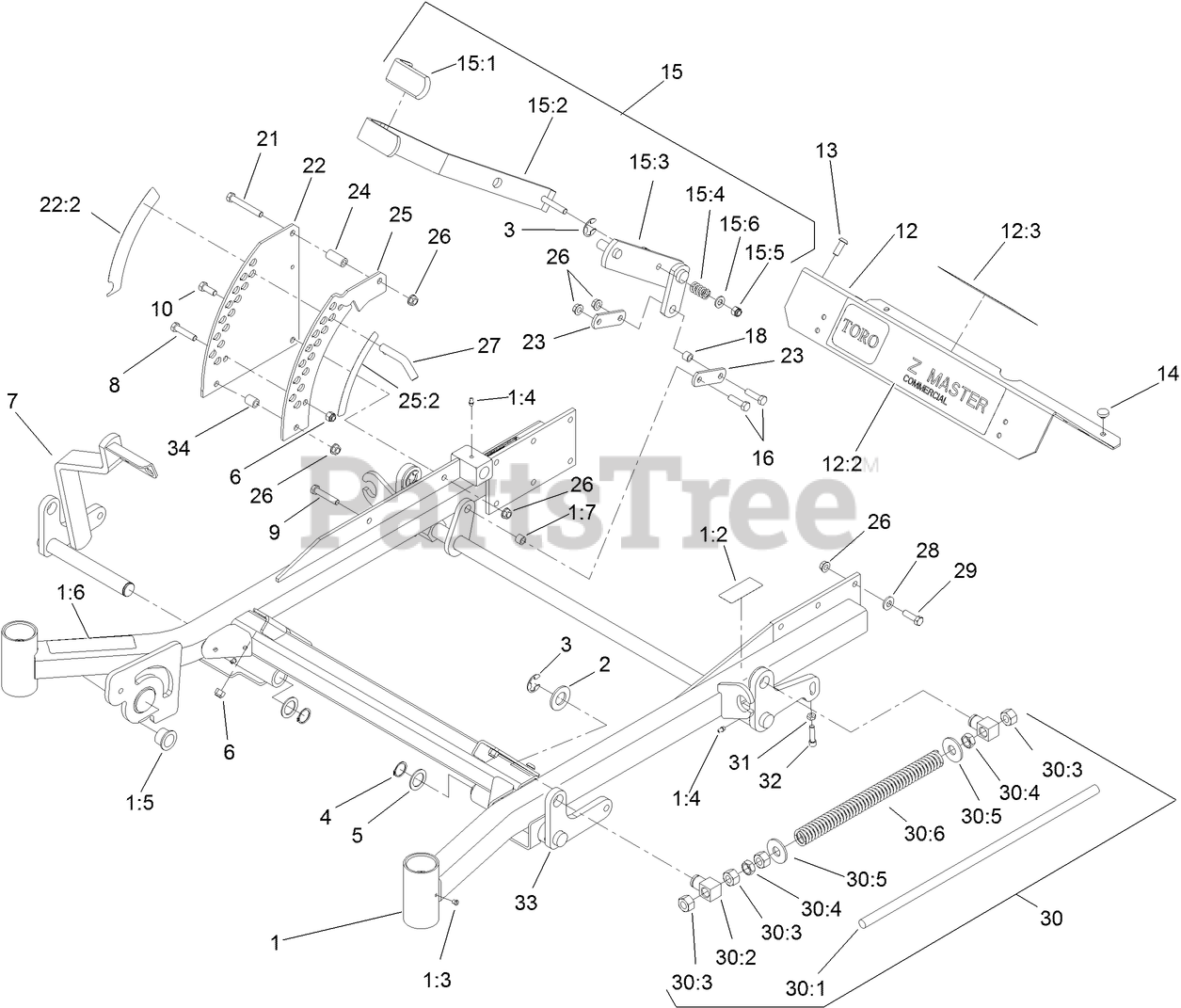

FRONT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 110-0800

FRAME ASM

$2433.99

$

Usually ships in 3-6 days

0

1:2

Toro 107-3968

DECAL-BRAKE, PARKING

$44.99

$

Usually ships in 3-6 days

0

1:3

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

1:5

Toro 94-1291

BUSHING

$11.99

$

In Stock, Qty 14

0

1:6

Toro 107-3969

DECAL-WARNING

$72.99

$

Usually ships in 3-6 days

0

1:7

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

2

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

3

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

4

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

5

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-7786-01

LIFT-DECK, RH FRONT

$170.99

$

Usually ships in 3-6 days

0

8

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 107-3976

FOOTREST

$303.99

$

Usually ships in 3-6 days

0

12:2

Toro 121-7558

DECAL

$22.99

$

Usually ships in 3-6 days

0

12:3

Toro 107-1866

DECAL-DANGER, SLOPE

$47.99

$

Usually ships in 3-6 days

0

13

Toro 3274-94

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

14

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

15

Toro 110-5860

DECK LIFT HANDLE ASM

$117.99

$

Usually ships in 3-6 days

0

15:1

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, Qty 12

0

15:2

Toro 103-2083-03

LEVER-LIFT
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

15:3

Toro 103-2064-03

ARM-LIFT, DECK

$76.99

$

Usually ships in 3-6 days

0

15:4

Toro 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

15:5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15:6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

18

Toro 103-1918

Bushing

$7.99

$

In Stock, Qty 6

0

21

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 117-0367

PLATE-HOC, OUTER

$136.99

$

Usually ships in 3-6 days

0

22:2

Toro 107-3961

DECAL-HEIGHT, DECK

$63.99

$

Usually ships in 3-6 days

0

23

Toro 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

24

Toro 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

25

Toro 117-0370

PLATE-HOC, INNER

$119.99

$

Usually ships in 3-6 days

0

25:2

Toro 107-3962

DECAL-HEIGHT, DECK

$58.99

$

Usually ships in 3-6 days

0

26

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

27

Toro 109-8757

PIN-HOC

$8.99

$

In Stock, only 3 left!

0

28

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

29

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

FRONT FRAME SPRING ASM

Note: Not serviced separately

$

$

Not available

30:1

Toro 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, Qty 8

0

30:2

Toro 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

30:3

Toro 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30:4

Toro 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 20+

0

30:5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30:6

Toro 1-633064

SPRING-SUPPORT, DECK

$33.99

$

In Stock, only 1 left!

0

31

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

32

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

33

Toro 106-8984-01

LIFT-DECK, LH

$166.99

$

Usually ships in 3-6 days

0

34

Toro 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0
