74274 (Z 595-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

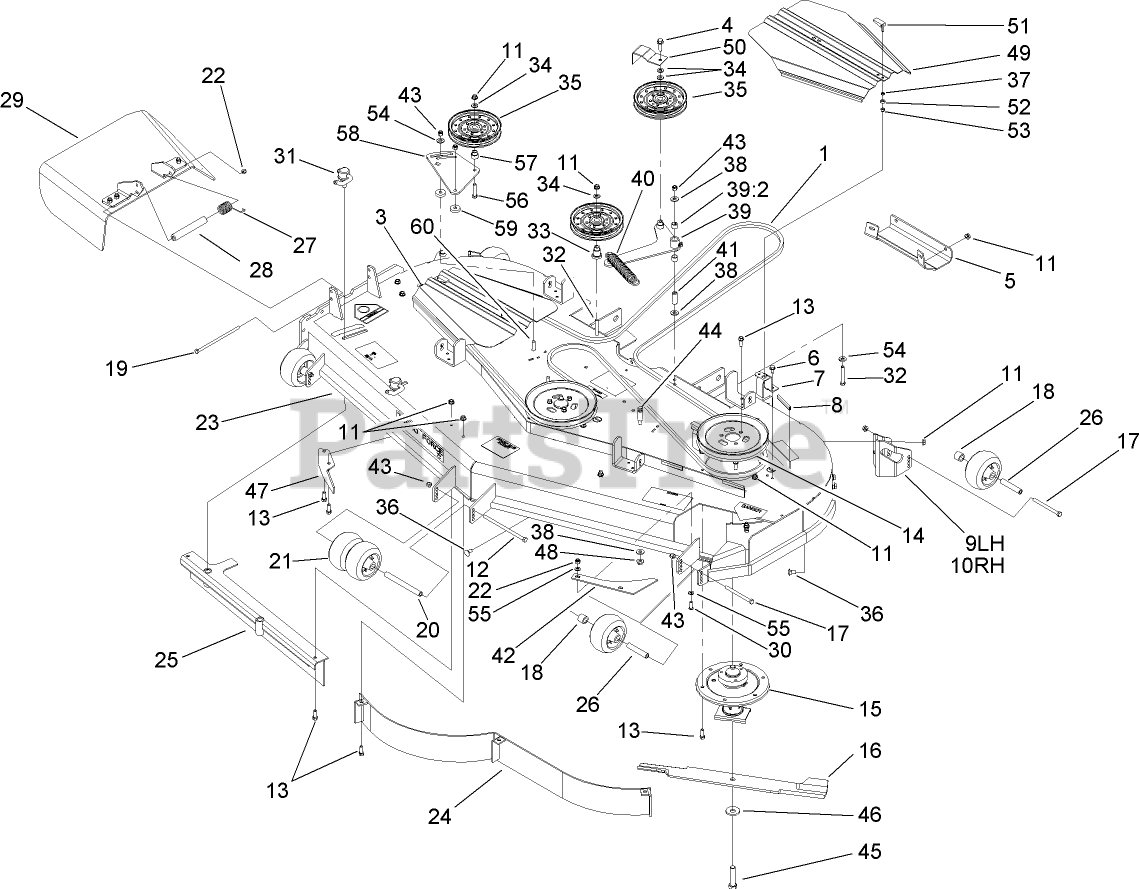

DECK ASSEMBLY Parts Diagram

  • Title
1

$193.99

$

In Stock, Qty 13

0

3

Toro 105-8786-03

COVER-BELT

$151.99

$

Usually ships in 3-6 days

0

4

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

5

Toro 106-3279-01

Plate-Skid

$103.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

8

Toro 105-7699

STRIP-SEAL

$9.99

$

In Stock, Qty 20+

0

9

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

10

Toro 106-7355-01

MOUNT-WHEEL, RH

$107.99

$

Usually ships in 3-6 days

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-28

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-7733

Pulley

$72.99

$

Usually ships in 3-6 days

0

15

Toro 110-3933

SPINDLE ASM
(Superseded to 119-8598)

$1028.99

$

Usually ships in 3-6 days

0

16

Toro 105-7784-03

BLADE-HI FLOW, 24.5 INCH

$42.99

$

In Stock, Qty 20+

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 112-8359

DECK DECAL ASM

$

$

Not available

24

$177.99

$

Usually ships in 3-6 days

0

25

$297.99

$

Usually ships in 3-6 days

0

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

27

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, Qty 5

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

29

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, Qty 6

0

30

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

31

Toro 107-1664

LEVER ASM

$75.99

$

In Stock, only 2 left!

0

32

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 3 left!

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

36

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

39

Toro 108-5949

DECK IDLER ARM ASM

$192.99

$

In Stock, only 3 left!

0

39:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

40

Toro 110-0818

SPRING-EXTENSION
(Superseded to 119-0392)

$45.99

$

In Stock, Qty 5

0

41

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

42

Toro 107-3138

PLATE-TURBO

$52.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 110-0801

PIN-THREADED, SPRING ANCHOR

$23.99

$

In Stock, only 2 left!

0

45

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 20+

0

46

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

47

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

48

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

49

Toro 106-3275-03

COVER-BELT

$191.99

$

Usually ships in 3-6 days

0

50

Toro 108-7220-01

GUIDE-BELT

$41.99

$

In Stock, only 2 left!

0

51

Toro 106-6777

HANDLE-LATCH, SWELL

$26.99

$

In Stock, Qty 14

0

52

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

53

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

54

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

55

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

56

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

58

Toro 105-7787-01

Plate-Idler

$47.99

$

In Stock, only 3 left!

0

59

Toro 105-7788

Spacer

$9.49

$

In Stock, Qty 10

0

60

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0
