74274 (Z 580-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) TRACTION FRAME AND FLOOR PAN ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

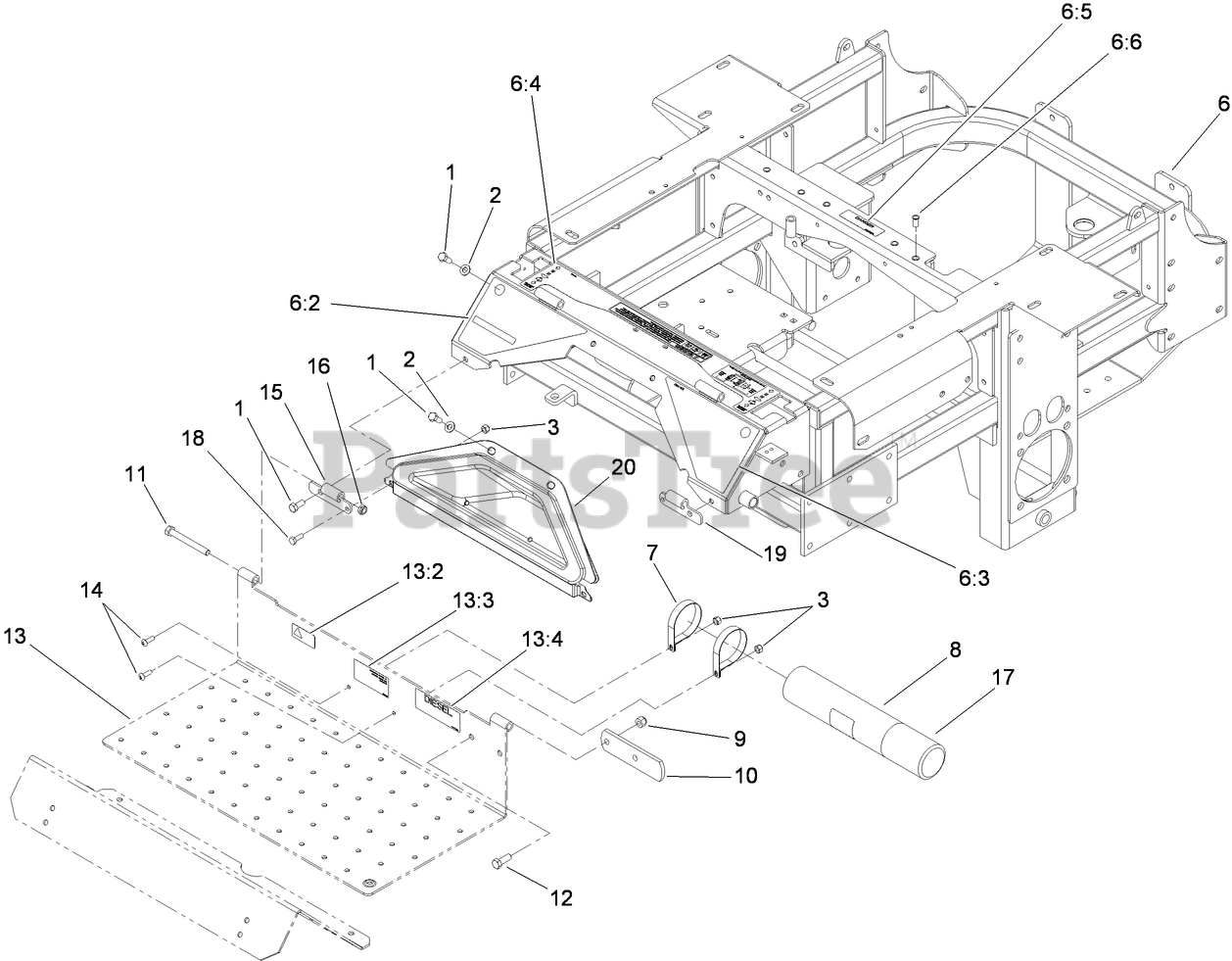

TRACTION FRAME AND FLOOR PAN ASSEMBLY Parts Diagram

  • Title
1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

6

Toro 114-8194

TRACTION FRAME ASM
(Superseded to 131-7712)

$2634.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-9989

Decal-Warning

$20.99

$

Usually ships in 3-6 days

0

6:3

Toro 106-7492

Decal-Danger

$20.99

$

Usually ships in 3-6 days

0

6:4

Toro 110-0819

DECAL-CONSOLE, TOP

$52.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

6:6

Toro 32148-11

INSERT-THREADED

$2.49

$

Usually ships in 3-6 days

0

7

Toro 107-1865

R-Clamp

$11.99

$

Usually ships in 3-6 days

0

8

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 115-3852

FLOOR PAN ASM

$229.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

13:3

Toro 107-1864

Decal-Location, Manual

$8.49

$

Usually ships in 3-6 days

0

13:4

Toro 114-5879

DECAL-DIESEL, BIO-READY
(Superseded to 121-7559)

$7.99

$

Usually ships in 3-6 days

0

14

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

15

Toro 106-7488-03

Hinge-Floorpan, LH

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

17

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

Hinge-Floorpan, RH

$22.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

Pocket

$34.99

$

Usually ships in 3-6 days

0
