74274 CP (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) HYDRAULIC TANK, PUMP AND MOTOR ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

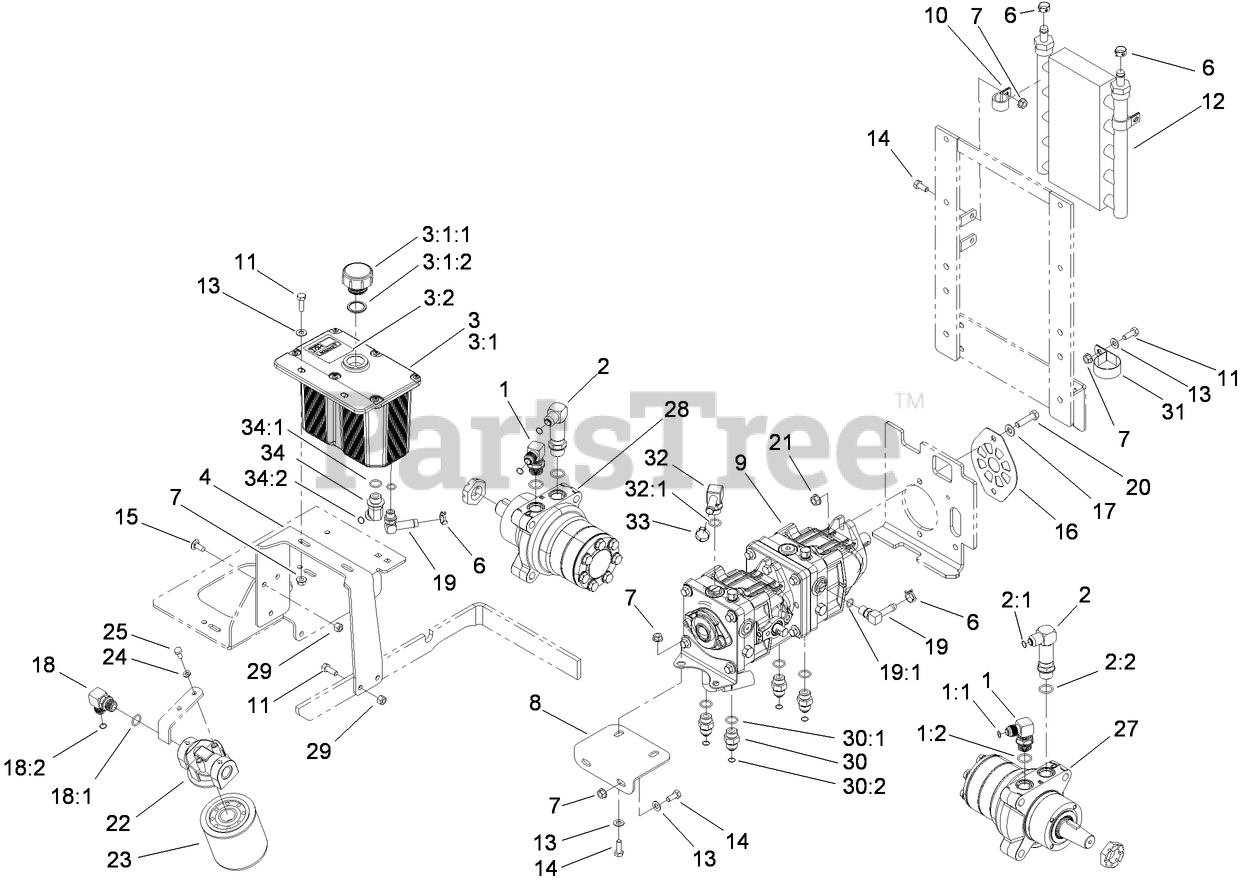

HYDRAULIC TANK, PUMP AND MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633605

FITTING-HYD, 90 DEG

$49.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

1:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

2

Toro 108-5323

FITTING-ELBOW-90

$99.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

2:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

3

Toro 108-5320

HYDRAULIC TANK ASM

$545.99

$

Usually ships in 3-6 days

0

3:1

TANK-HYDRAULIC

Note: Not serviced separately

$

$

Not available

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 20+

0

3:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

3:2

Toro 115-4212

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

4

Toro 108-5352-03

BRACKET-TANK, HYDRAULIC

$95.99

$

Usually ships in 3-6 days

0

6

Toro 110-6242

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 107-3462-03

BRACKET-PUMP, FRONT

$28.99

$

Usually ships in 3-6 days

0

9

Toro 107-9885

TANDEM PUMP ASM

$4842.99

$

Usually ships in 3-6 days

0

10

Toro 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 114-8168

COOLER-OIL, HYDRO

$351.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-5367-03

PLATE-SHIELD, PUMP

$23.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

18

Toro 103-2153

FITTING-90 DEG

$49.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

18:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Toro 109-6449

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 86-9080

HEAD-FILTER

$123.99

$

Usually ships in 3-6 days

0

23

Toro 67-8110

CARTRIDGE-FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

24

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 112-8357

HYD MOTOR ASM (CCW)

$1349.99

$

Usually ships in 3-6 days

0

28

Toro 112-8358

HYD MOTOR ASM (CW)

$1276.99

$

Usually ships in 3-6 days

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

30:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

30:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

31

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

32

Toro 108-5316

FITTING-ELBOW, 90 DEG

$47.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

33

Toro 109-6801

CLAMP-HOSE

$9.49

$

Usually ships in 3-6 days

0

34

Toro 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

34:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

34:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0
