74273 CP (Z 550) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) Z STAND ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

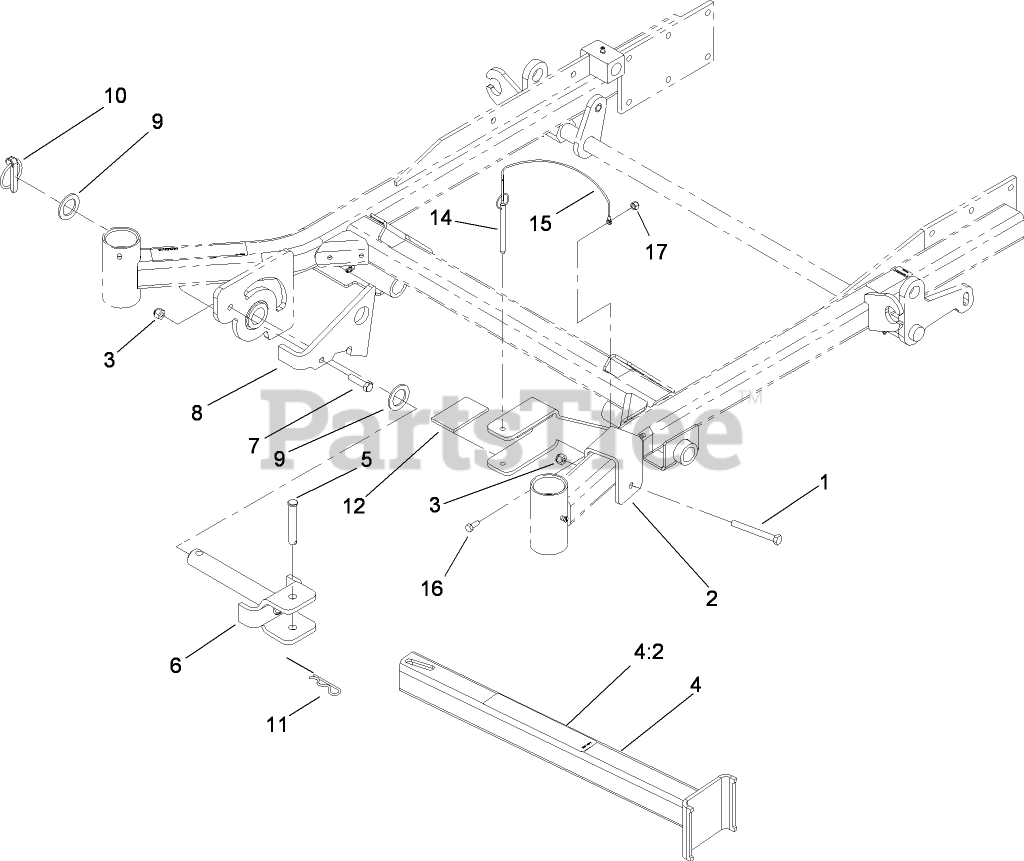

Z STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

2

Toro 108-4136-01

BRACKET-CRADLE

$128.99

$

Usually ships in 3-6 days

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

4

Toro 107-1874

Leg ASM

$210.99

$

Usually ships in 3-6 days

0

4:2

Toro 106-7464

DECAL-Z STAND

$9.99

$

In Stock, only 2 left!

0

5

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

6

Toro 100-9692-01

PIN-PIVOT

$209.99

$

Usually ships in 3-6 days

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 100-9686-01

BRACKET-LATCH
(Superseded to 136-1657-01)

$59.99

$

Usually ships in 3-6 days

0

9

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

10

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

11

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

12

Toro 100-6547

Cushion-Rubber

$11.99

$

Usually ships in 3-6 days

0

14

Toro 105-1647

PIN-HITCH, COTTERLESS

$20.99

$

Usually ships in 3-6 days

0

15

Toro 100-9385

LANYARD-NYLON

$6.49

$

Usually ships in 3-6 days

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0
