74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) MOTION CONTROL SYSTEM Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

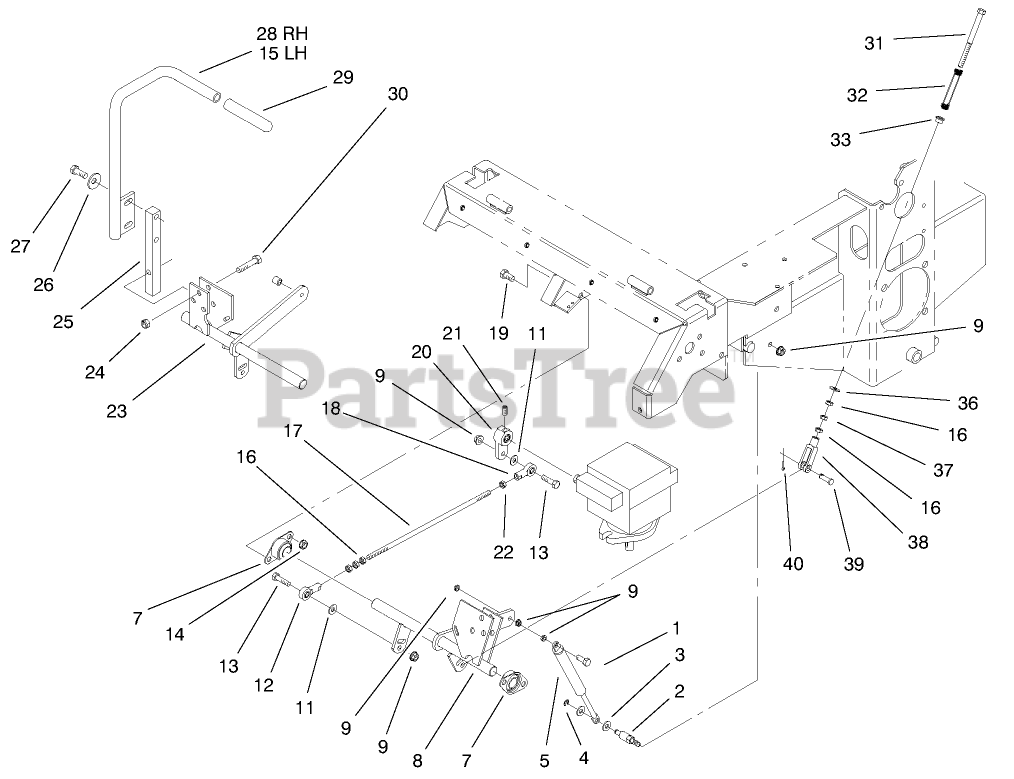

MOTION CONTROL SYSTEM Parts Diagram

  • Title
1

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

2

Toro E653316

Pin-Dampner
(Superseded to 1-653316)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro E808512

E-Ring
(Superseded to 32120-35)

$4.49

$

In Stock, Qty 6

0

5

Toro E523027

Damper
(Superseded to 109-2339)

$76.99

$

In Stock, only 3 left!

0

7

Toro E633102

Bearing-Side Flange
(Superseded to 1-633102)

$18.99

$

In Stock, only 2 left!

0

8

Toro E652467

Motion Control, LH
(Superseded to 1-652467)

$

$

Not available

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro E543017

Ball Joint
(Superseded to 1-543017)

$20.99

$

In Stock, only 4 left!

0

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

15

Toro E632191

Lever-LH
(Superseded to 1-634258)

$112.99

$

Usually ships in 3-6 days

0

16

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

17

Toro E653046

Link-Pump Control
(Superseded to 103-3066)

$

$

Not available

18

Toro E633152

Ball Joint LH
(Superseded to 1-633152)

$20.99

$

In Stock, only 3 left!

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro E653092

Arm-Pump Control
(Superseded to 103-3717)

$18.99

$

In Stock, only 3 left!

0

21

Toro E803022

Screw
(Superseded to 1-803022)

$2.99

$

In Stock, Qty 20+

0

22

Toro E804524

Nut
(Superseded to 1-804524)

$2.99

$

In Stock, only 2 left!

0

23

Toro E652466

Motion Control, RH
(Superseded to 1-652466)

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

25

Toro E633177

Arm
(Superseded to 1-633177)

$63.99

$

Usually ships in 3-6 days

0

26

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

28

Toro E632193

Lever-RH
(Superseded to 1-634259)

$109.99

$

Usually ships in 3-6 days

0

29

Toro E633257

Grip
(Superseded to 1-633257)

$14.99

$

In Stock, only 4 left!

0

30

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro E603737

Bolt
(Superseded to 1-603737)

$9.49

$

In Stock, only 2 left!

0

32

Toro E603807

Spring
(Superseded to 1-603807)

$3.49

$

In Stock, Qty 17

0

33

Toro E603735

Bushing
(Superseded to 1-603735)

$6.49

$

In Stock, only 4 left!

0

36

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

38

Toro E303105

Yoke
(Superseded to 1-303105)

$12.99

$

In Stock, only 1 left!

0

39

Toro E808280

Pin-Clevis
(Superseded to 1-808280)

$2.99

$

In Stock, only 2 left!

0

40

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0
