74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) IDLER PULLEYS/LIFT STRUT, CHAINS Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

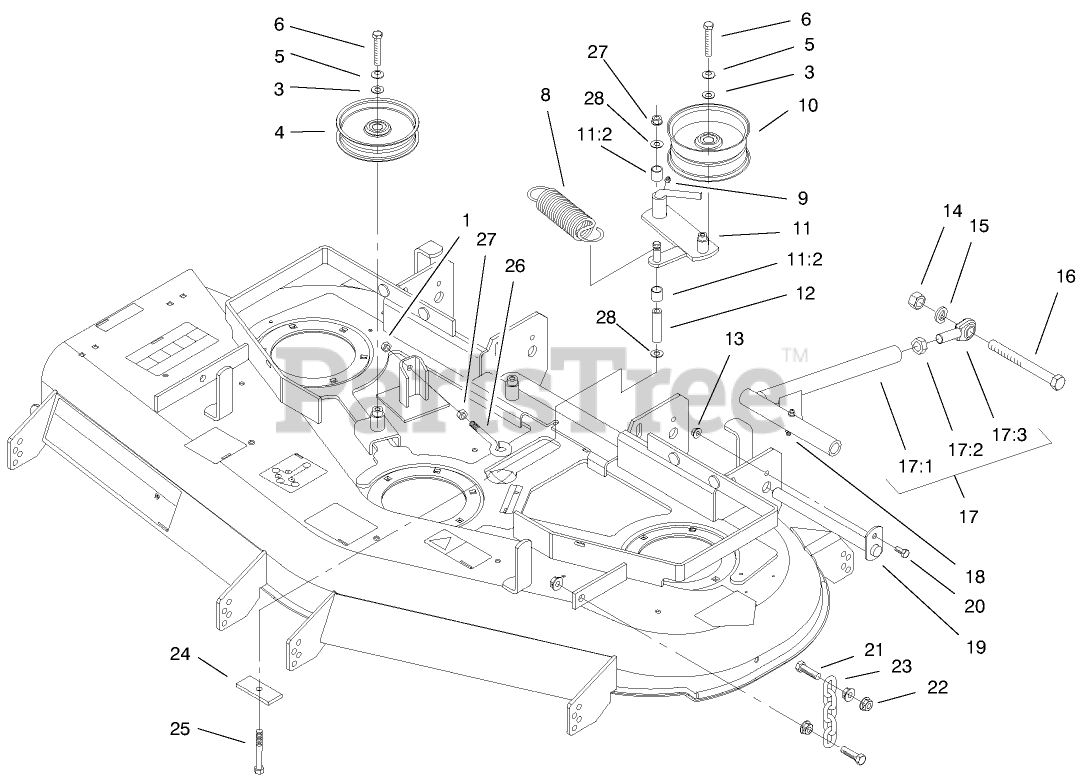

IDLER PULLEYS/LIFT STRUT, CHAINS Parts Diagram

  • Title

1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro E613098

Pulley-Idler
(Superseded to 1-613098)

$49.99

$

In Stock, Qty 7

0

5

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro E633151

Spring-Extension
(Superseded to 116-6317)

$27.99

$

In Stock, Qty 11

0

9

Toro E811008

Zerk-Grease
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

10

Toro 99-8912

PULLEY-IDLER, FLAT
(Superseded to 116-4669)

$82.99

$

In Stock, only 3 left!

0

11

Toro 99-8914

IDLER ARM ASM

$287.99

$

Usually ships in 3-6 days

0

11:2

Toro E513034

Bearing-Pivot
(Superseded to 1-513034)

$7.49

$

In Stock, Qty 20+

0

12

Toro E603384

Bushing
(Superseded to 1-603384)

$14.99

$

In Stock, Qty 20+

0

13

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 9

0

14

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

15

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro E800344

Screw-HH
(Superseded to 1-800344)

$15.99

$

In Stock, only 1 left!

0

17

Toro E634726

Strut ASM
(Superseded to 103-1081)

$258.99

$

In Stock, only 1 left!

0

17:1

Toro E632690

Strut
(Superseded to 109-1181)

$100.99

$

In Stock, Qty 9

0

17:2

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

17:3

Toro E633029

Rod End
(Superseded to 1-633029)

$64.99

$

In Stock, Qty 12

0

18

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

19

Toro E632199

Pin-Strut
(Superseded to 1-632199-01)

$35.99

$

In Stock, Qty 12

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 18

0

23

Toro E633447

Chain-Lift
(Superseded to 1-633447)

$10.99

$

In Stock, Qty 16

0

24

Toro 99-3946-01

PLATE-RETAINER, BOLT

$

$

Not available

25

Toro E800805

Screw-HH
(Superseded to 1-800805)

$5.49

$

In Stock, only 4 left!

0

26

Toro 94-2547

BOLT-EYE

$26.99

$

Usually ships in 3-6 days

0

27

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

28

Toro E809107

Washer-hardened
(Superseded to 1-809107)

$5.49

$

In Stock, only 2 left!

0
