74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) HEIGHT OF CUT HANDLE AND PLATES Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

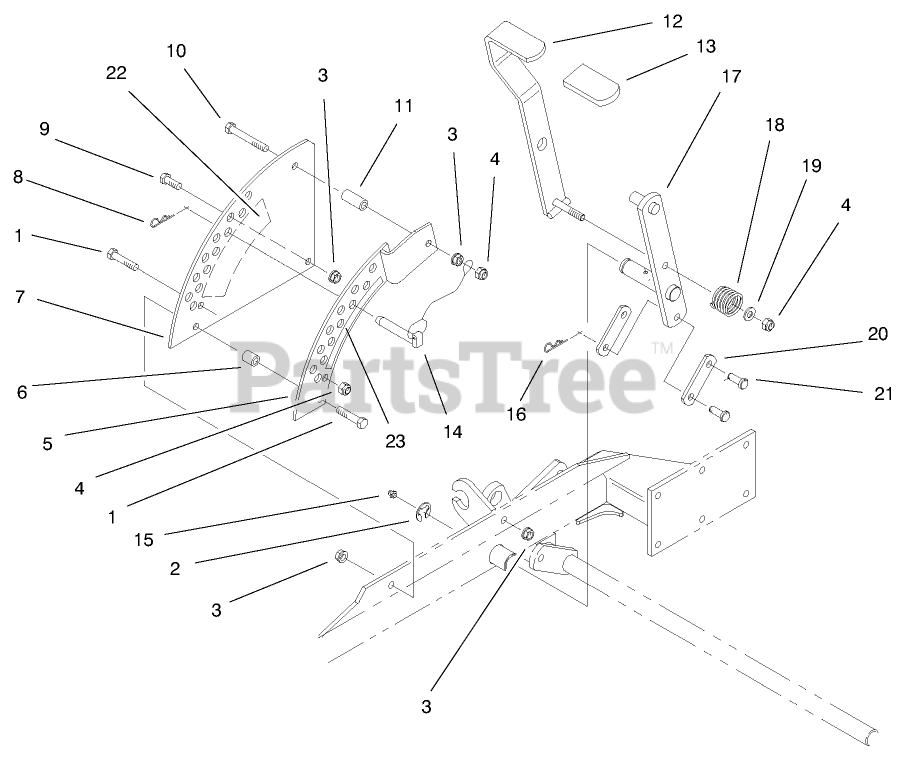

HEIGHT OF CUT HANDLE AND PLATES Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

5

Toro E652235

Plate-Lift, Deck
(Superseded to 1-652235-01)

$

$

Not available

6

Toro E633080

Bushing
(Superseded to 1-633080)

$10.99

$

Usually ships in 3-6 days

0

7

Toro E653230

Plate
(Superseded to 1-653230-01)

$

$

Not available

8

Toro E806005

Hairpin
(Superseded to 1-806005)

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

11

Toro E633082

Bushing
(Superseded to 1-633082)

$11.99

$

Usually ships in 3-6 days

0

12

Toro E652023

Lever-Lift
(Superseded to 1-652023-03)

$

$

Not available

13

Toro E633295

Grip-Lift Lever
(Superseded to 1-633295)

$7.99

$

In Stock, only 3 left!

0

14

Toro E633097

Hitch Pin w/Lanyard
(Superseded to 1-633097)

$23.99

$

In Stock, only 2 left!

0

15

Toro 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

16

Toro E806003

Pin-Hair Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

17

Toro 99-3922-03

ARM-LIFT

$

$

Not available

18

Toro E633325

Spring-Compression
(Superseded to 1-633325)

$5.49

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

20

Toro E633068

Arm-Deck Lift
(Superseded to 1-633068)

$11.99

$

Usually ships in 3-6 days

0

21

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

22

Toro 99-8942

DECAL-DECK HEIGHT, OUTER

$

$

Not available

23

Toro 99-8941

DECAL-DECK HEIGHT, INNER

$

$

Not available
